Air Excellent 2x AE34C Valve Adaptor 125mm 90° with mounting strip

Article number: 188974

The Air Excellent valve adaptor can connect up to two AE34C ducts to a supply and/or extract valve. It can be cut to length and, when used with the AE34C Click-Seal rings, provides a secure and airtight duct connection. A mounting strip is included for easy fixing.

  • Safe and quick installation with cut-to-length flexibility
  • ATC1 airtight mechanical connection that minimises pressure losses, energy use, and fan noise
  • Supplied with mounting strip for fast and secure fixing
View all specifications

All media

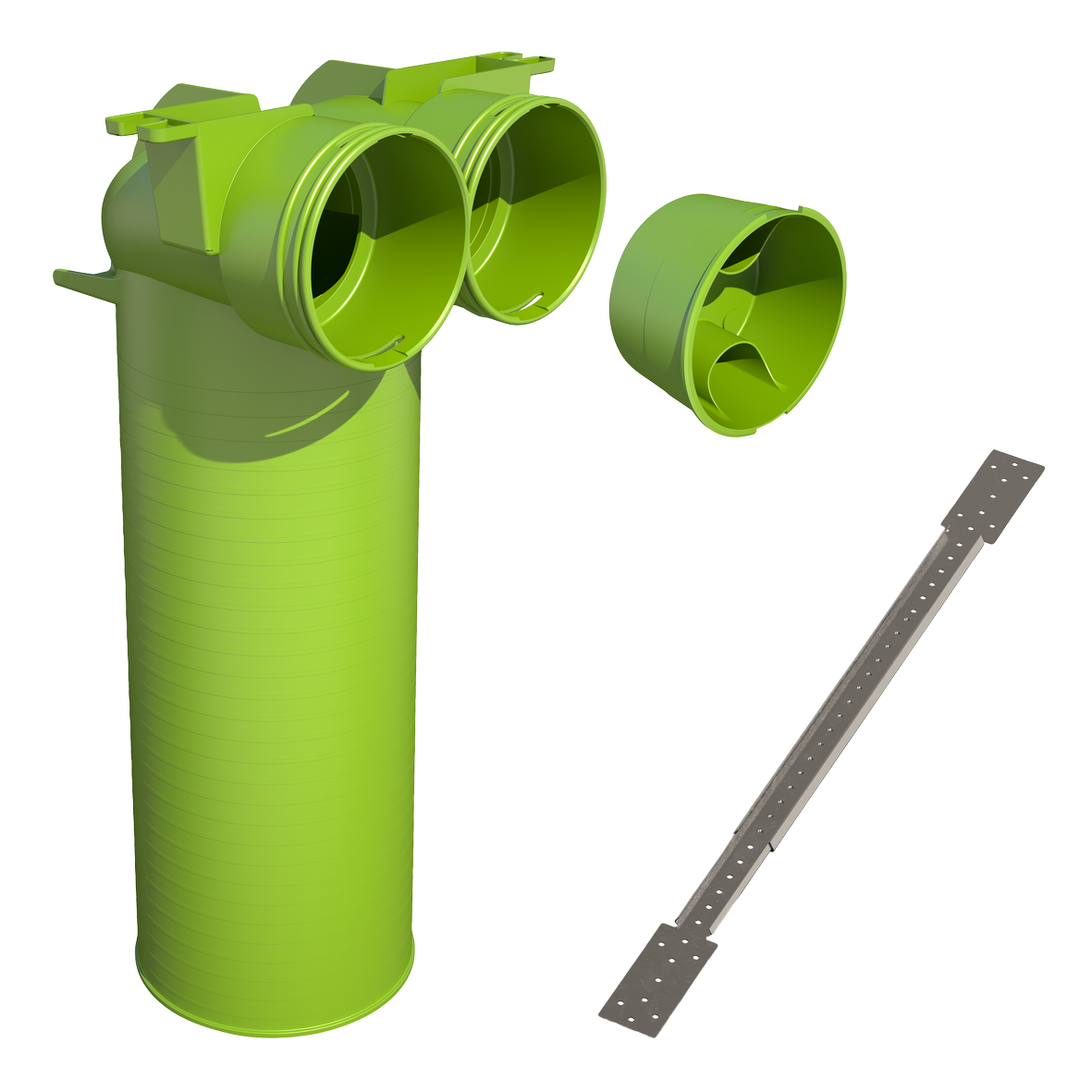

Air Excellent 2x AE34C Valve Adaptor 125mm 90° with mounting strip

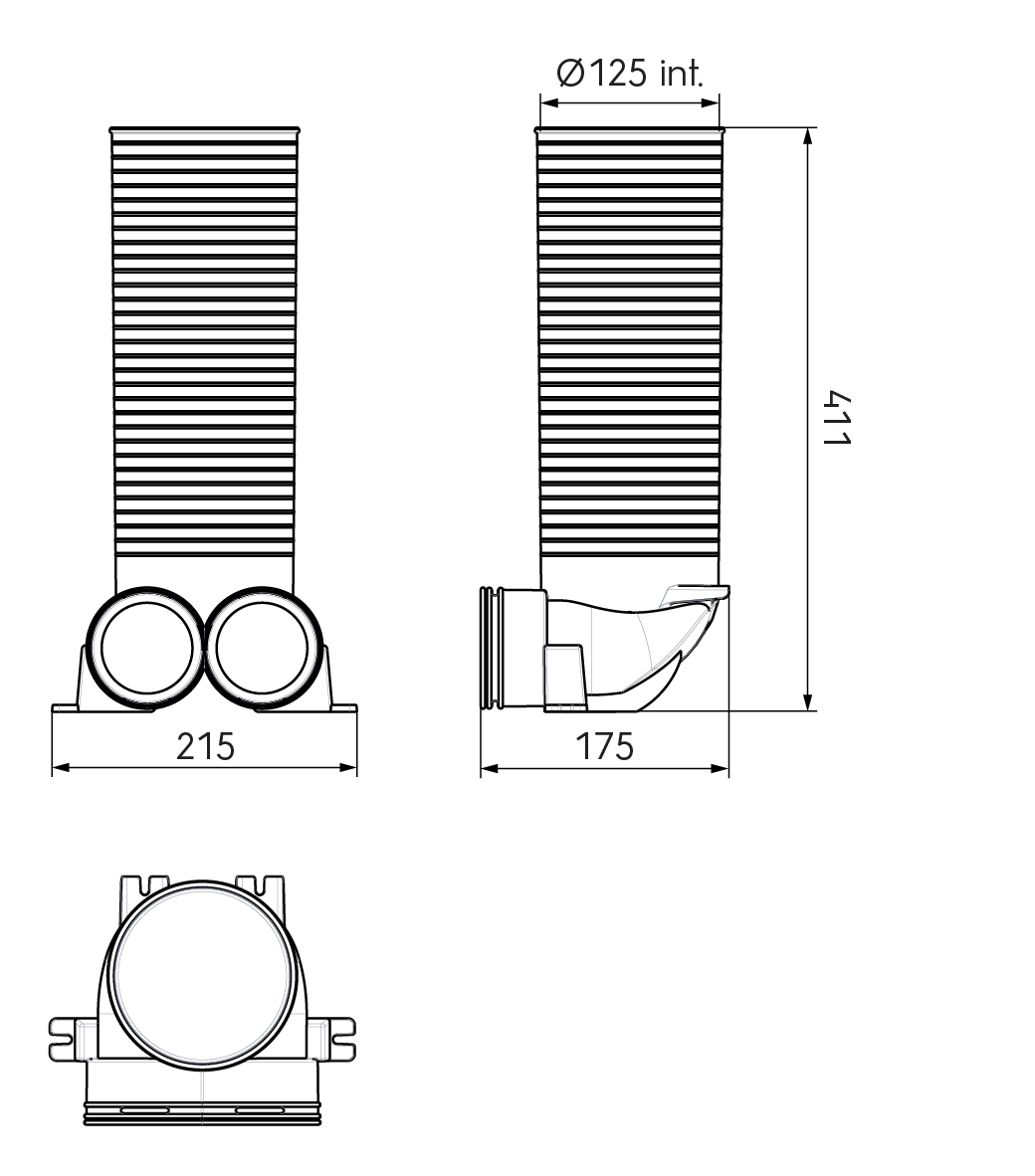

Dimensional drawing – 2x AE34C Valve Adaptor 125mm 90°

Specifications

General

Product Name
Air Excellent 2x AE34C Valve Adaptor 125mm 90° with mounting strip
GTIN
8713645248646
Trade name
Air Excellent
Type
Adaptors
Accessories in package
Cover caps
Part number
100000188974

Technical

Comm. Dimension
75 mm
Shape
Circular
Anti static
Airflow direction
Supply / extract
Color
Green
Number of connections
2
Antimicrobial

Dimensions

Length gross
410 mm / 16.1 inch
Height
175 mm / 6.9 inch
Width
215 mm / 8.5 inch
Net weight
0.38 kg / 0.8 lbs

Logistical

Intrastat
39259080

Performance

CE string
-
Temperature resistance (max.)
60 °C
Temperature resistance (min.)
-20 °C
