125mm Aerfoam Insulated Duct 90° Bend

Article number: 188263

The Aerfoam 125 mm 90° bend allows directional changes within the Aerfoam system. Made of expanded polyethylene (EPE) duct, it minimises the risk of condensation and energy loss. It is very light and extremely easy and safe to install. All Aerfoam parts connect to each other using strong, airtight mechanical connections. They can also be securely mounted to walls or ceilings using brackets. Aerfoam is ideal for both central mechanical ventilation and domestic hot water heat pump systems.

  • Insulated to minimise the risk of condensation and energy loss.
  • Easy mechanical connection and mounting.
  • Lightweight and easy to cut, ensuring quick installation.
  • Impact resistant.
View all specifications

All media

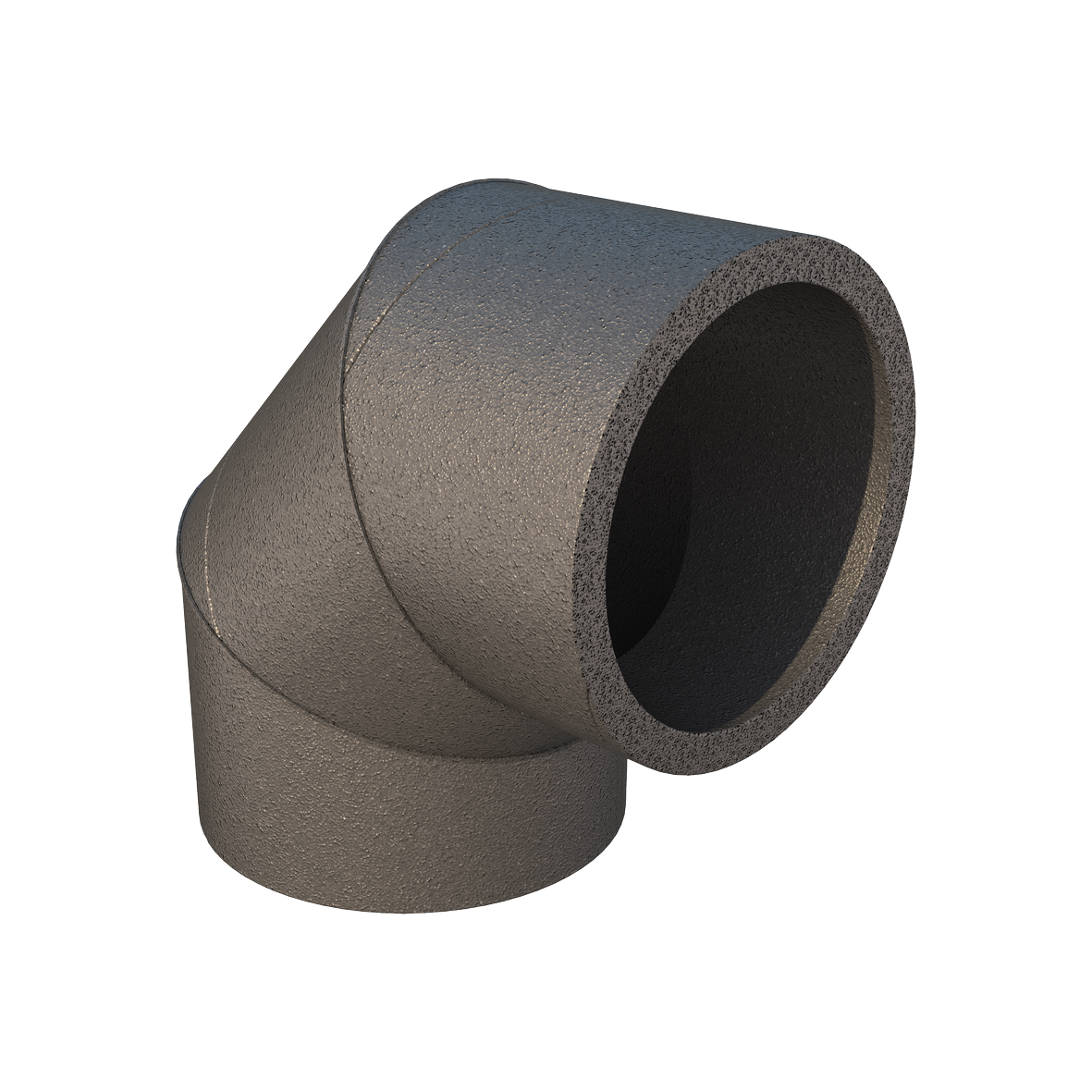

Aerfoam-Bend-90

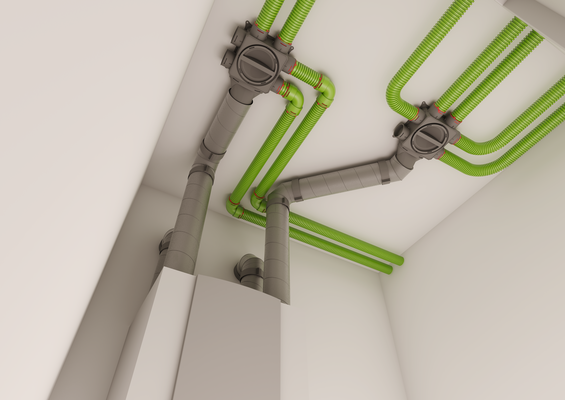

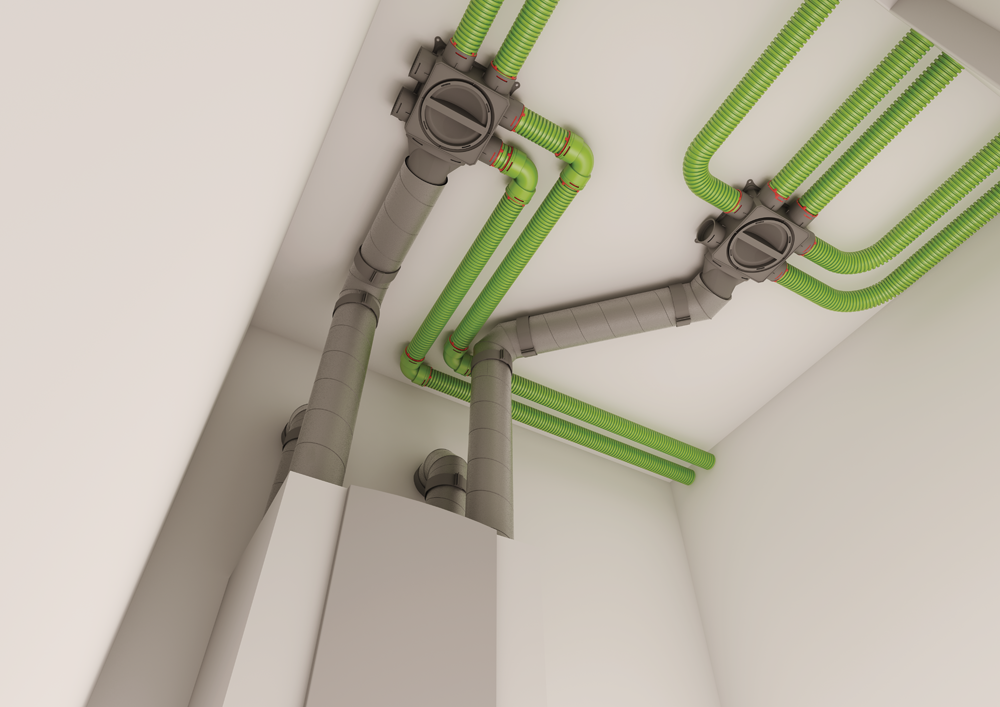

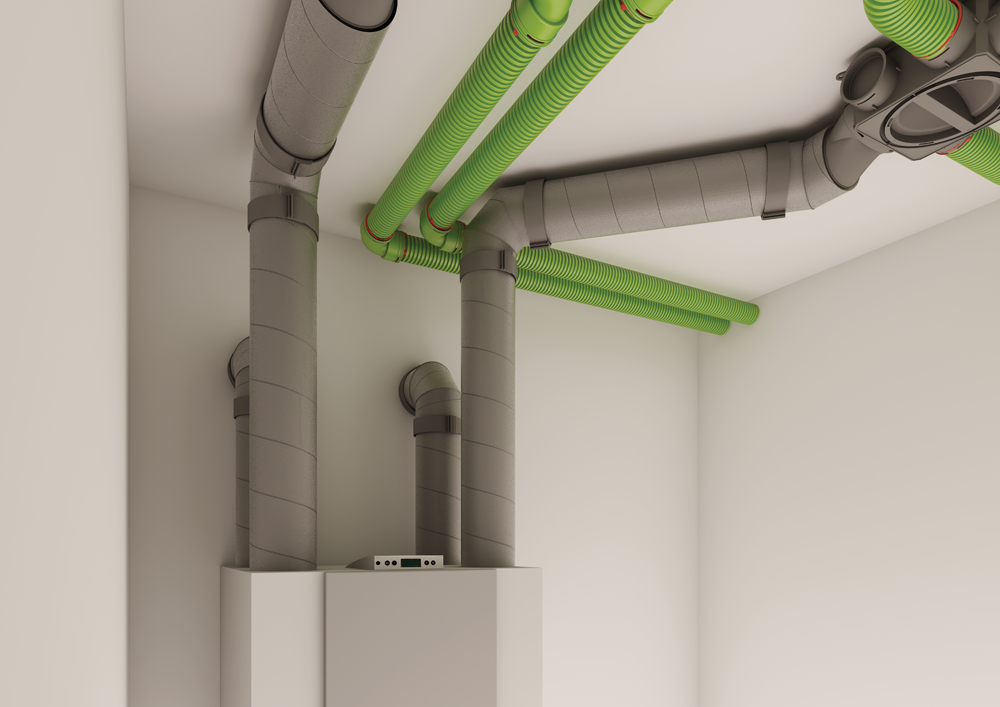

Aerfoam insulated ductwork system

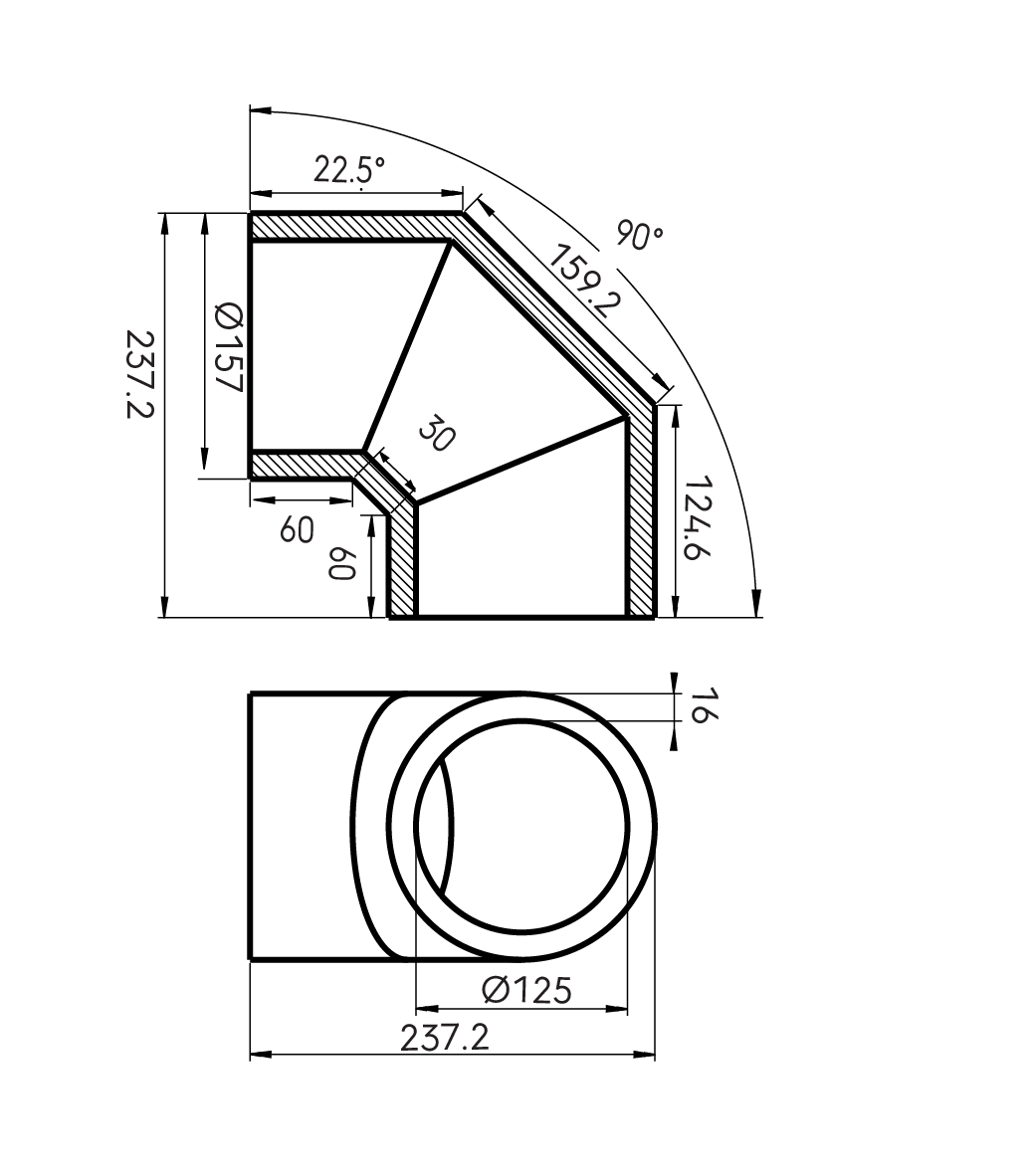

Dimensional Drawing - Aerfoam 90° bend 125

Specifications

General

Product Name
125mm Aerfoam Insulated Duct 90° Bend
GTIN
8713645122991
Part number
100000188263
Type
Elbows
Trade name
Aerfoam

Technical

Comm. Dimension
125 mm
Shape
Circular
Airflow direction
Supply / extract
Color
Gray
Insulation thickness
16 mm

Dimensions

Length gross
237 mm / 9.3 inch
Height
237 mm / 9.3 inch
Width
157 mm / 6.2 inch
Net weight
0.06 kg / 0.1 lbs

Logistical

Intrastat
39259080
Base unit packaging
Unpacked
Packaging / Trade length
237 mm / 9.3 inch
Packaging / Trade height
237 mm / 9.3 inch
Number per packaging
1
Gross weight
0.06 kg / 0.1 lbs
Packaging / Trade width
157 mm / 6.2 inch

Performance

CE string
-
Installation temperature (max.)
60 °C
Installation temperature (min.)
-30 °C
Temperature resistance (min.)
-30 °C
Temperature resistance (max.)
60 °C
