180mm Aerfoam Insulated Duct 45° Bend

Article number: 188282

The Aerfoam 180 mm 45° Elbow allows smooth directional changes within the Aerfoam system. Made from lightweight, insulated EPE foam, it helps prevent condensation, reduce heat loss, and absorb sound. The elbow connects easily to other Aerfoam parts using dedicated connectors and can be securely mounted to walls or ceilings with brackets. Ideal for both central mechanical ventilation and heat pump systems.

  • Insulated to prevent condensation and minimizes heat loss
  • Sound-absorbing material for a better indoor comfort
  • Easy mechanical connection and secure mounting
  • Lightweight and easy to cut, ensuring quick, effortless installation
  • Impact resistant
View all specifications

All media

Aerfoam-Bend-45
Aerfoam insulated ductwork system
Installation EPE

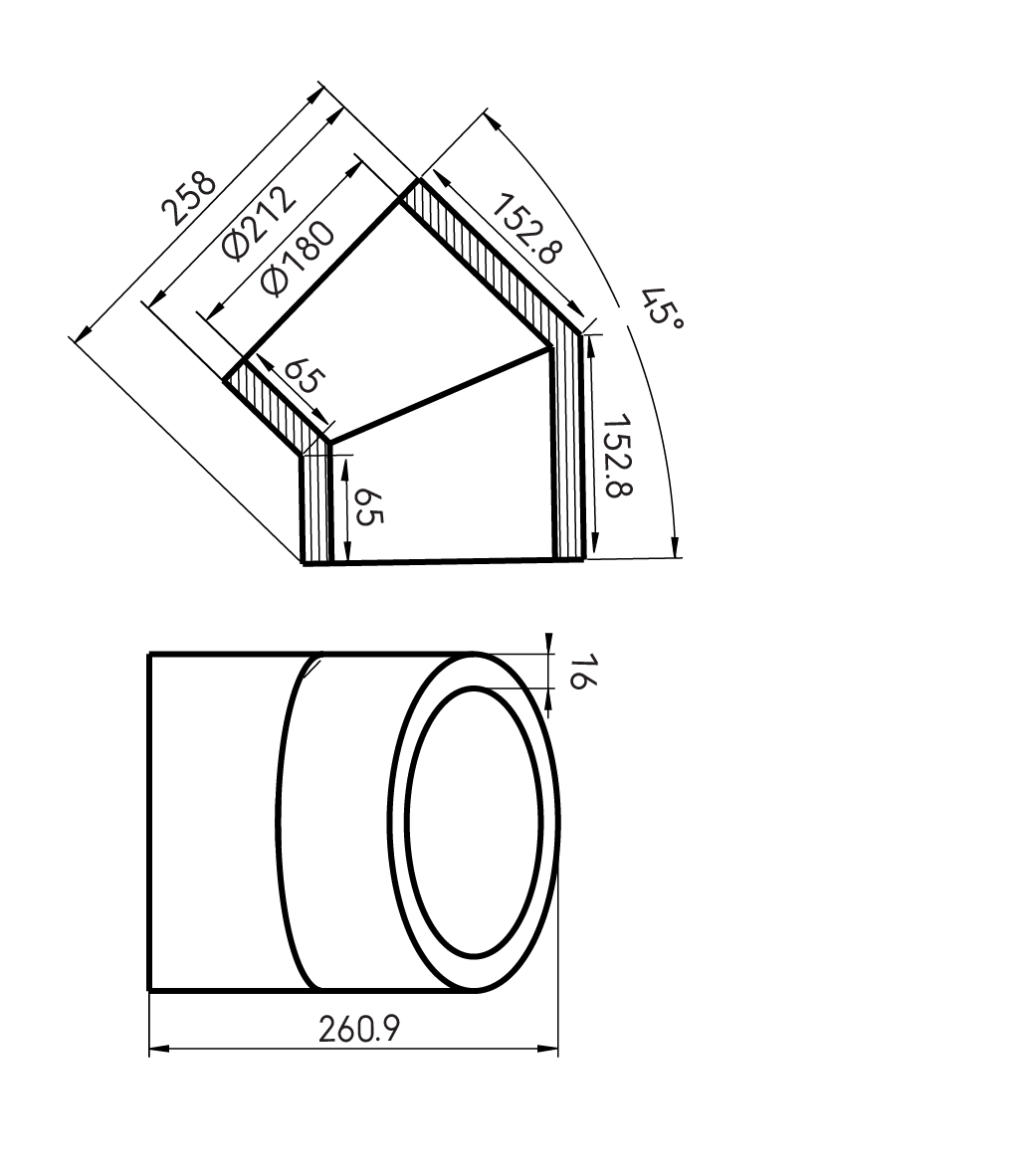

Dimensional Drawing - Aerfoam 45° bend 180

Specifications

General

Product Name
180mm Aerfoam Insulated Duct 45° Bend
GTIN
8713645123097
Part number
100000188282
Type
Elbows
Trade name
Aerfoam

Technical

Comm. Dimension
180 mm
Shape
Circular
Airflow direction
Supply / extract
Color
Gray
Insulation thickness
16 mm

Dimensions

Length gross
258 mm / 10.2 inch
Height
261 mm / 10.3 inch
Width
212 mm / 8.3 inch
Net weight
0.06 kg / 0.1 lbs

Logistical

Intrastat
39259080
Base unit packaging
Unpacked
Packaging / Trade length
258 mm / 10.2 inch
Packaging / Trade height
260.9 mm / 10.3 inch
Number per packaging
1
Gross weight
0.06 kg / 0.1 lbs
Packaging / Trade width
212 mm / 8.3 inch

Performance

CE string
-
Installation temperature (max.)
60 °C
Installation temperature (min.)
-30 °C
Temperature resistance (min.)
-30 °C
Temperature resistance (max.)
60 °C
