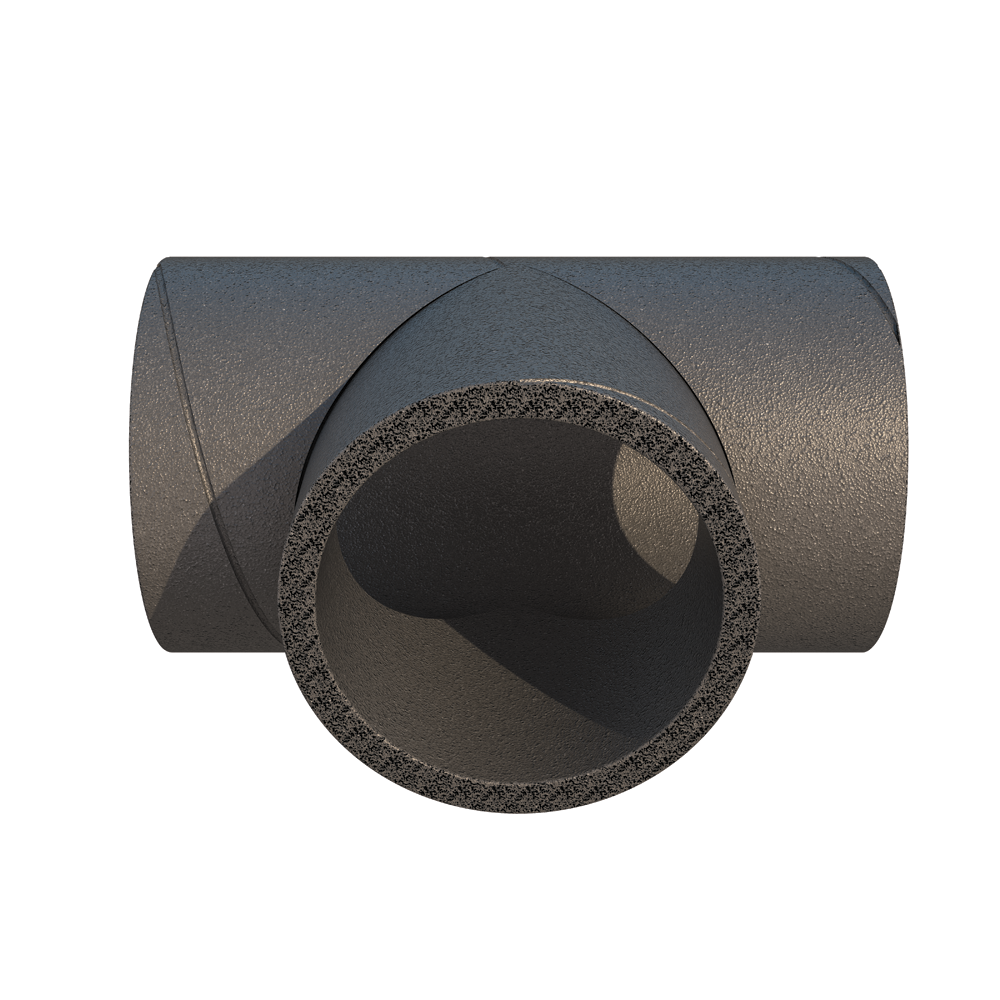

125mm Aerfoam Insulated Duct T-Piece

Article number: 188264

The Aerfoam 125 mm T-Piece allows branching in the Aerfoam system. Made of expanded polyethylene (EPE) duct, which minimises the risk of condensation and energy loss. It is very light and extremely easy and safe to install. All Aerfoam parts connect to each other using strong, airtight mechanical connections. They can also be securely mounted to walls or ceilings using brackets. Aerfoam is ideal for both central mechanical ventilation and domestic hot water heat pump systems.

  • Insulated to minimise the risk of condensation and energy loss.
  • Easy mechanical connection and mounting.
  • Lightweight and easy to cut, ensuring quick installation.
  • Impact resistant.
View all specifications

All media

Aerfoam-T-piece
Aerfoam insulated ductwork system
Installation EPE

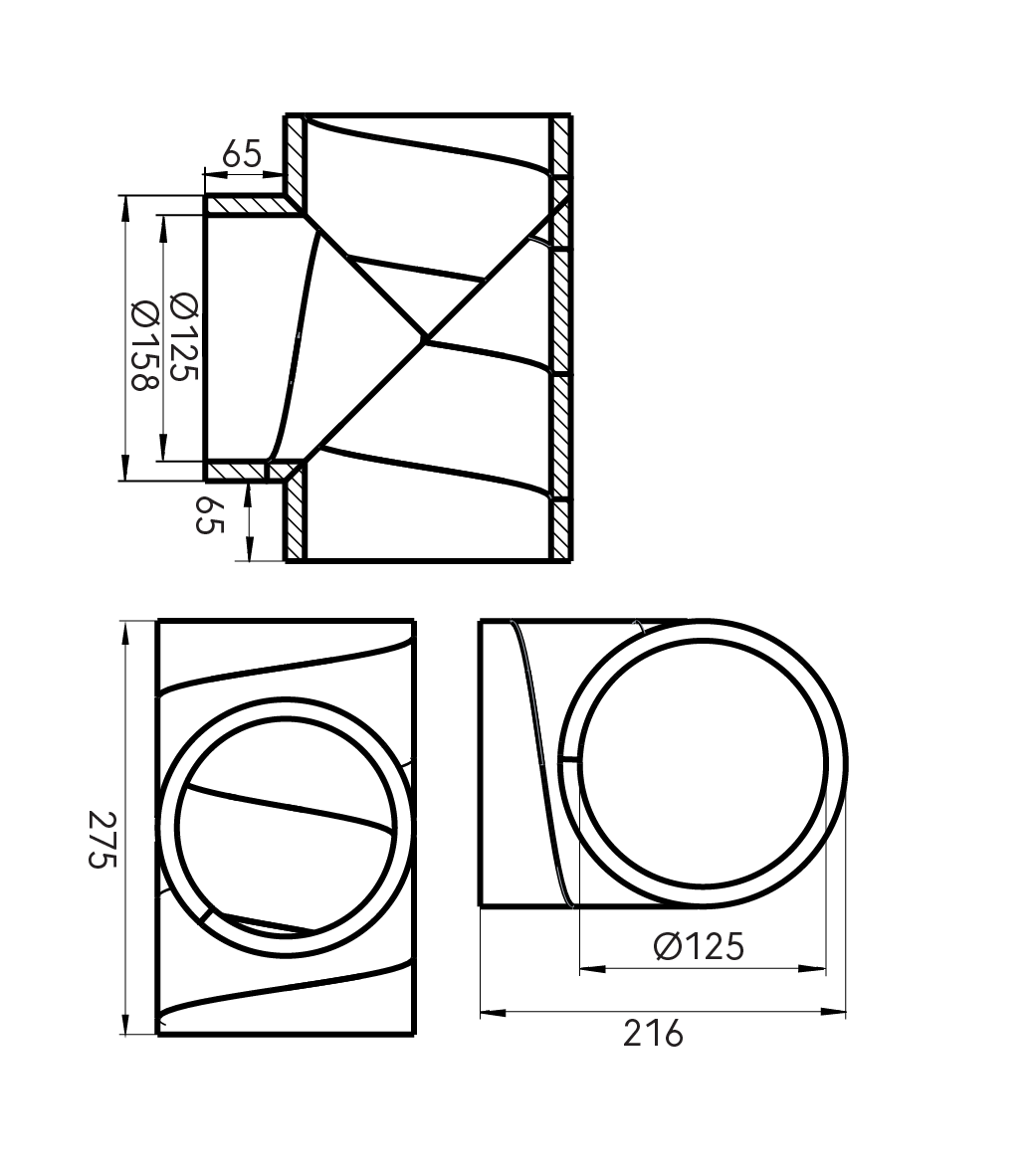

Dimensional Drawing - Aerfoam T-piece 125

Specifications

General

Product Name
125mm Aerfoam Insulated Duct T-Piece
GTIN
8713645123004
Part number
100000188264
Type
T-piece
Trade name
Aerfoam

Technical

Comm. Dimension
125 mm
Shape
Circular
Color
Gray
Insulation thickness
16 mm

Dimensions

Length gross
275 mm / 10.8 inch
Height
216 mm / 8.5 inch
Width
158 mm / 6.2 inch
Net weight
0.07 kg / 0.2 lbs

Logistical

Intrastat
39259080
Gross weight
0.32 kg / 0.7 lbs
Packaging / Trade width
238 mm / 9.4 inch
Base unit packaging
Box
Packaging / Trade length
388 mm / 15.3 inch
Packaging / Trade height
178 mm / 7 inch

Performance

CE string
-
