Aerfoam 125mm Connector

Article number: 188265

The Aerfoam 125 mm Connector joins all Aerfoam parts of the same diameter, ensuring an airtight connection while maintaining the system’s insulation performance.

  • Ensures strong, airtight connections.
  • Maintains full insulation performance.
  • Simple and quick installation without tools.
  • Compatible with all Aerfoam parts of the same diameter.
View all specifications

All media

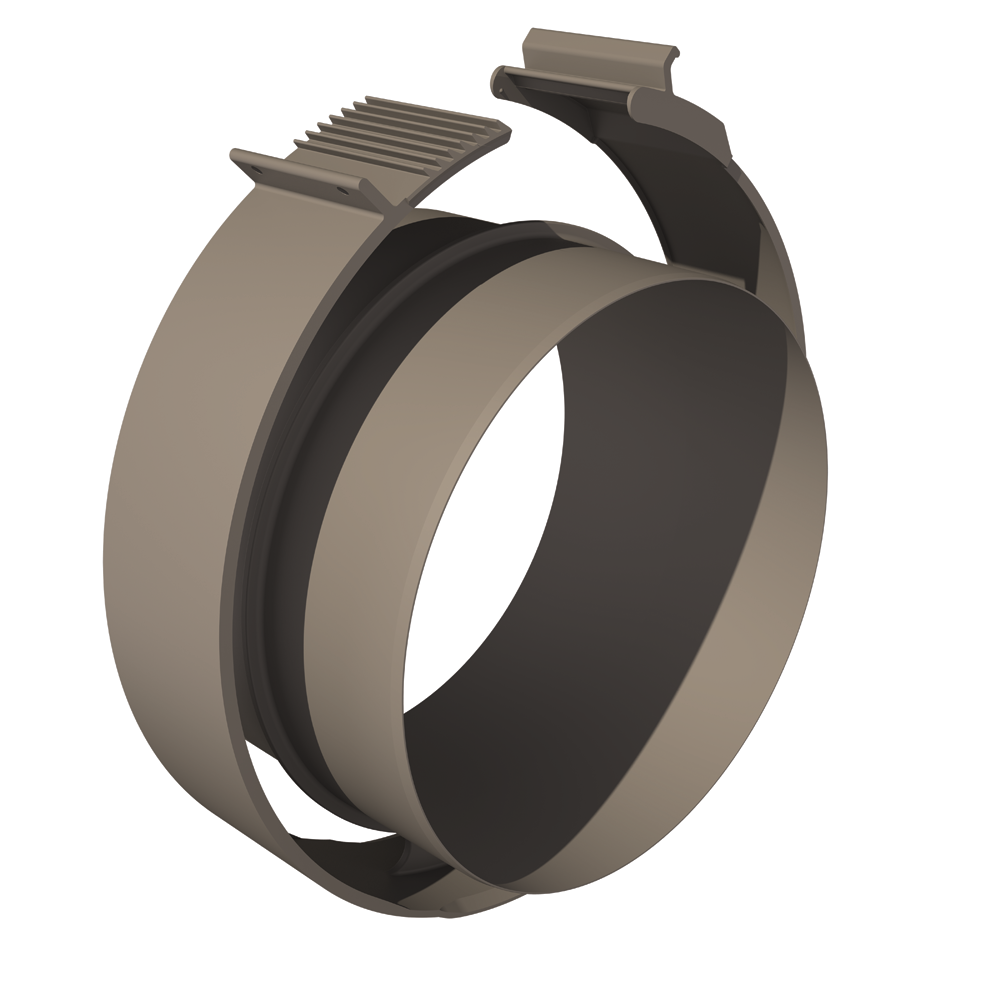

Aerfoam-Coupler
188 265 raccord2
188 265_raccord1
Aerfoam insulated ductwork system

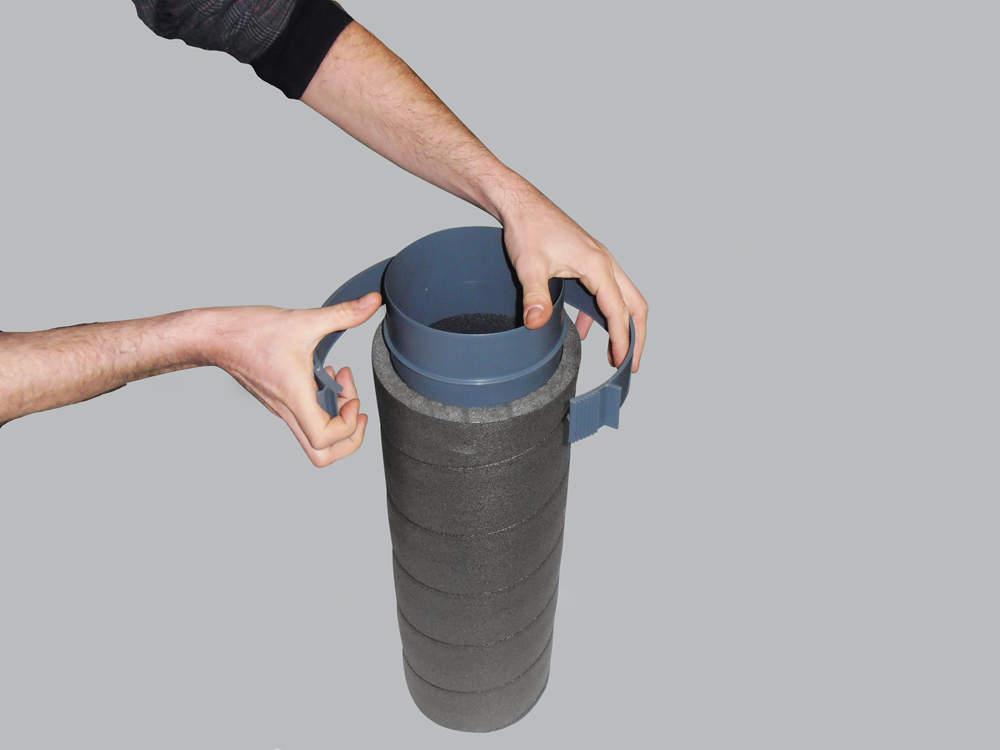

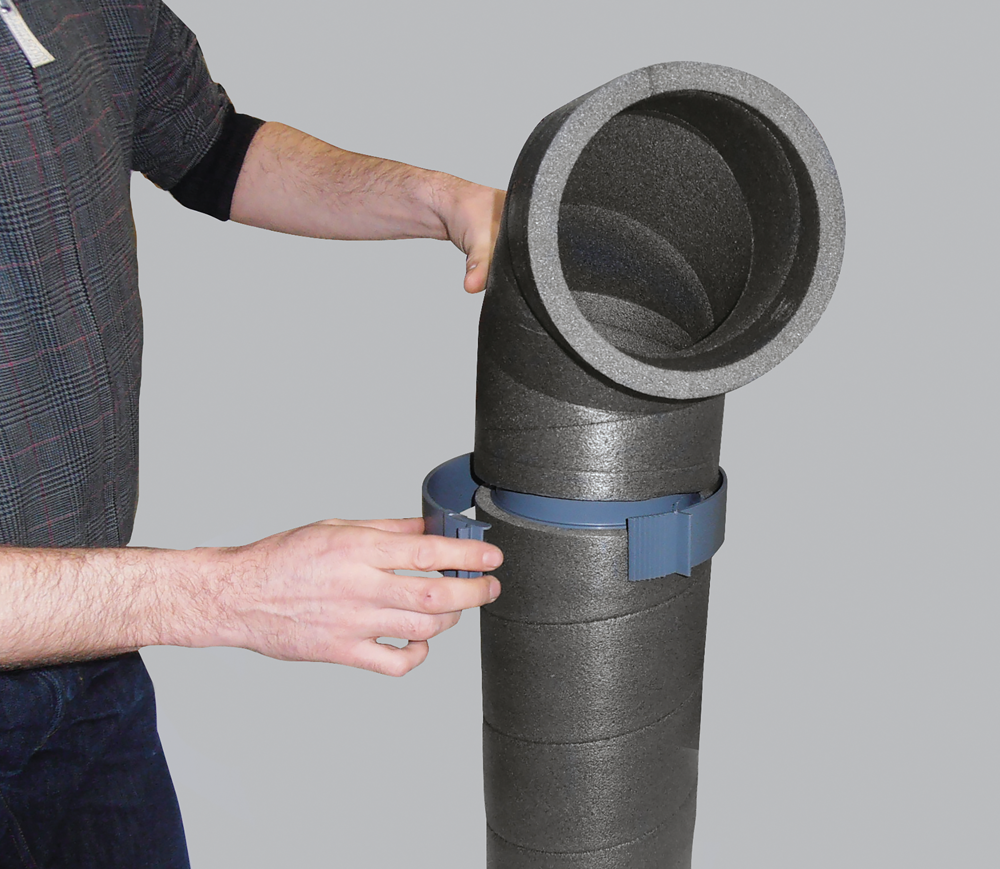

Installation EPE

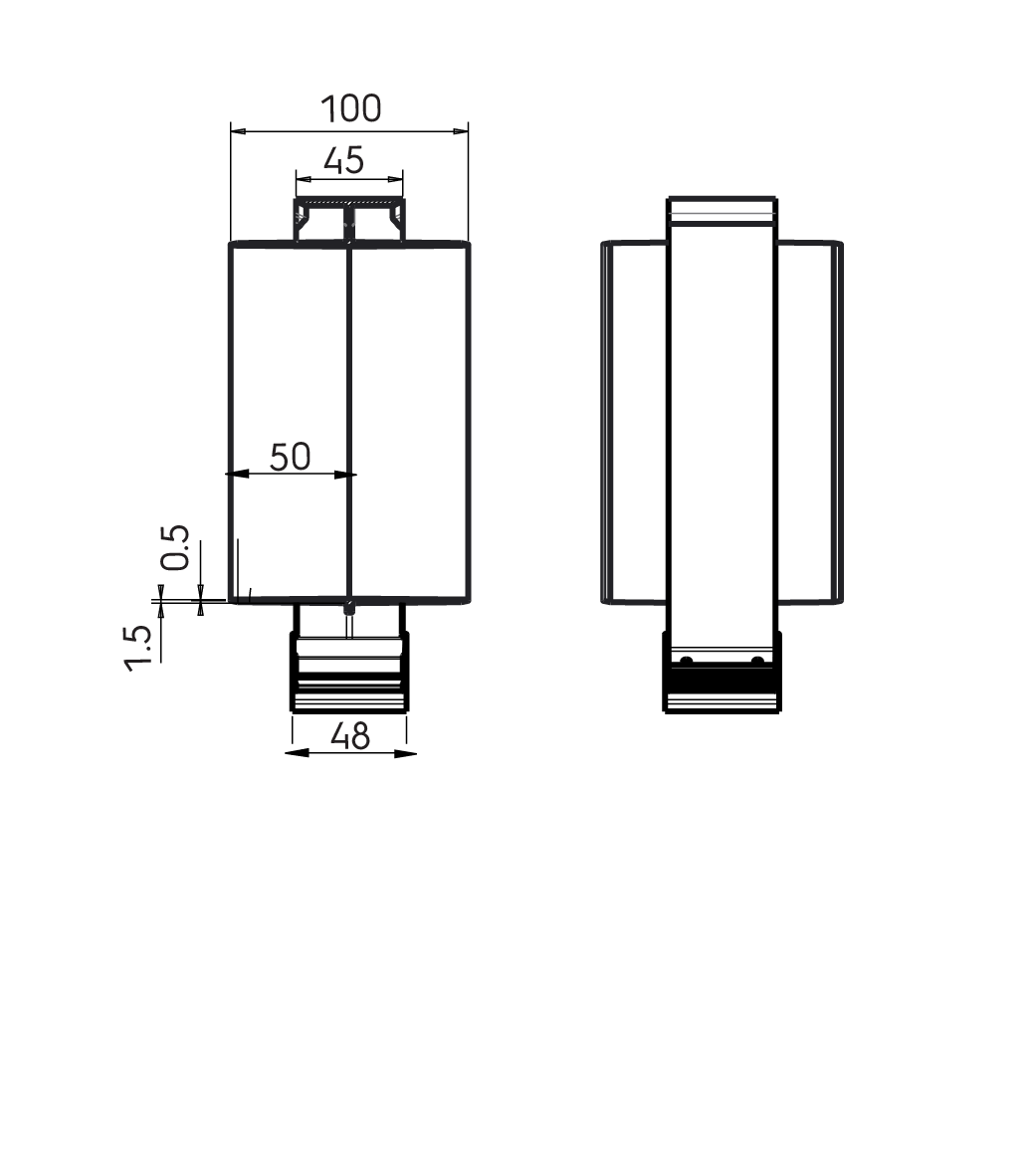

Dimensional Drawing - Aerfoam duct connector 125-200 mm

Specifications

General

Product Name
Aerfoam 125mm Connector
GTIN
8713645123011
Part number
100000188265
Type
Connectors
Trade name
Aerfoam

Technical

Comm. Dimension
125 mm
Material
PP
Color
Gray

Dimensions

Length gross
181 mm / 7.1 inch
Height
100 mm / 3.9 inch
Width
161 mm / 6.3 inch
Net weight
0.1 kg / 0.2 lbs

Logistical

Intrastat
39259080
Base unit packaging
Unpacked
Packaging / Trade length
181 mm / 7.1 inch
Packaging / Trade height
100 mm / 3.9 inch
Number per packaging
1
Gross weight
0.1 kg / 0.2 lbs
Packaging / Trade width
161 mm / 6.3 inch

Performance

CE string
-
