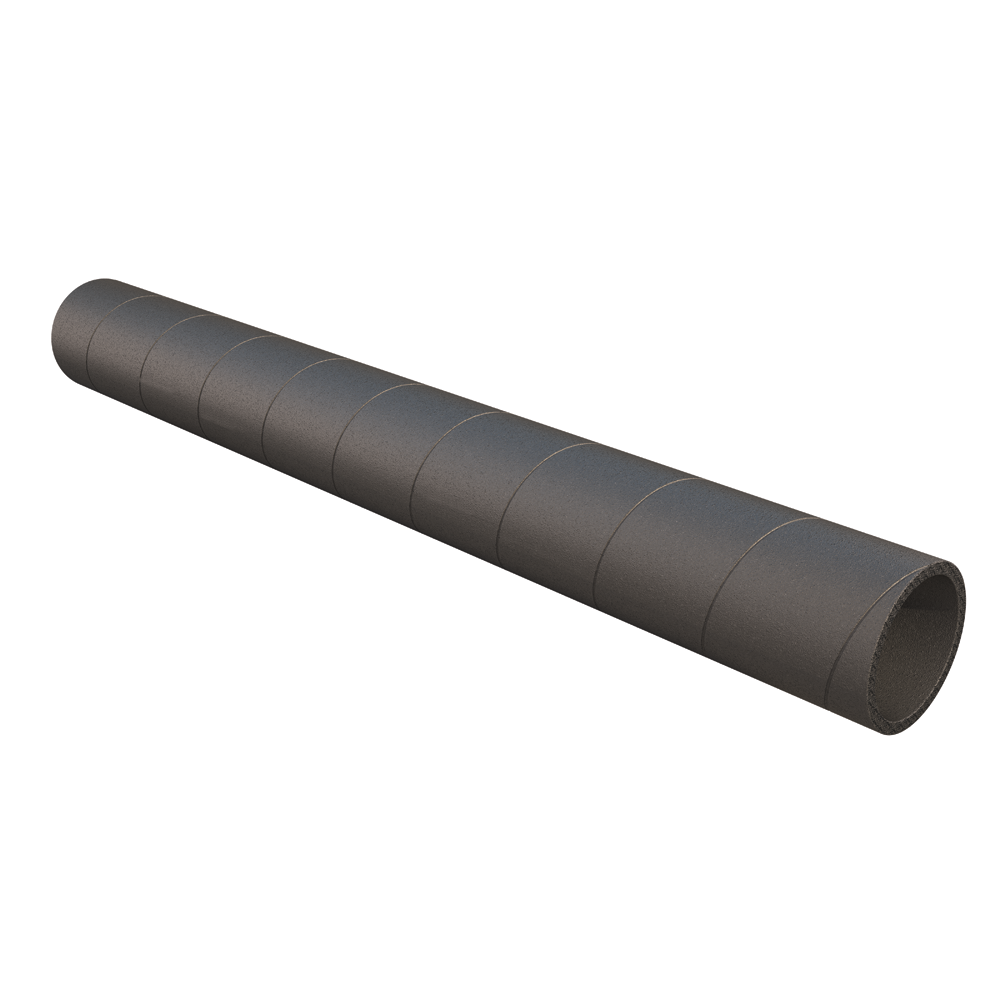

180mm Aerfoam Insulated Duct 2m

Article number: 188206

The Aerfoam 180 mm Duct is made of expanded polyethylene (EPE), which minimises the risk of condensation and energy loss. It is very light and extremely easy and safe to install. All Aerfoam parts connect to each other using strong, airtight mechanical connections. They can also be securely mounted to walls or ceilings using brackets. Aerfoam is ideal for both central mechanical ventilation and domestic hot water heat pump systems.

  • Insulated to minimise the risk of condensation and energy loss.
  • Easy mechanical connection and mounting.
  • Lightweight and easy to cut, ensuring quick installation.
  • Impact resistant.
View all specifications

All media

Aerfoam-Ductwork
Aerfoam insulated ductwork system
Installation EPE

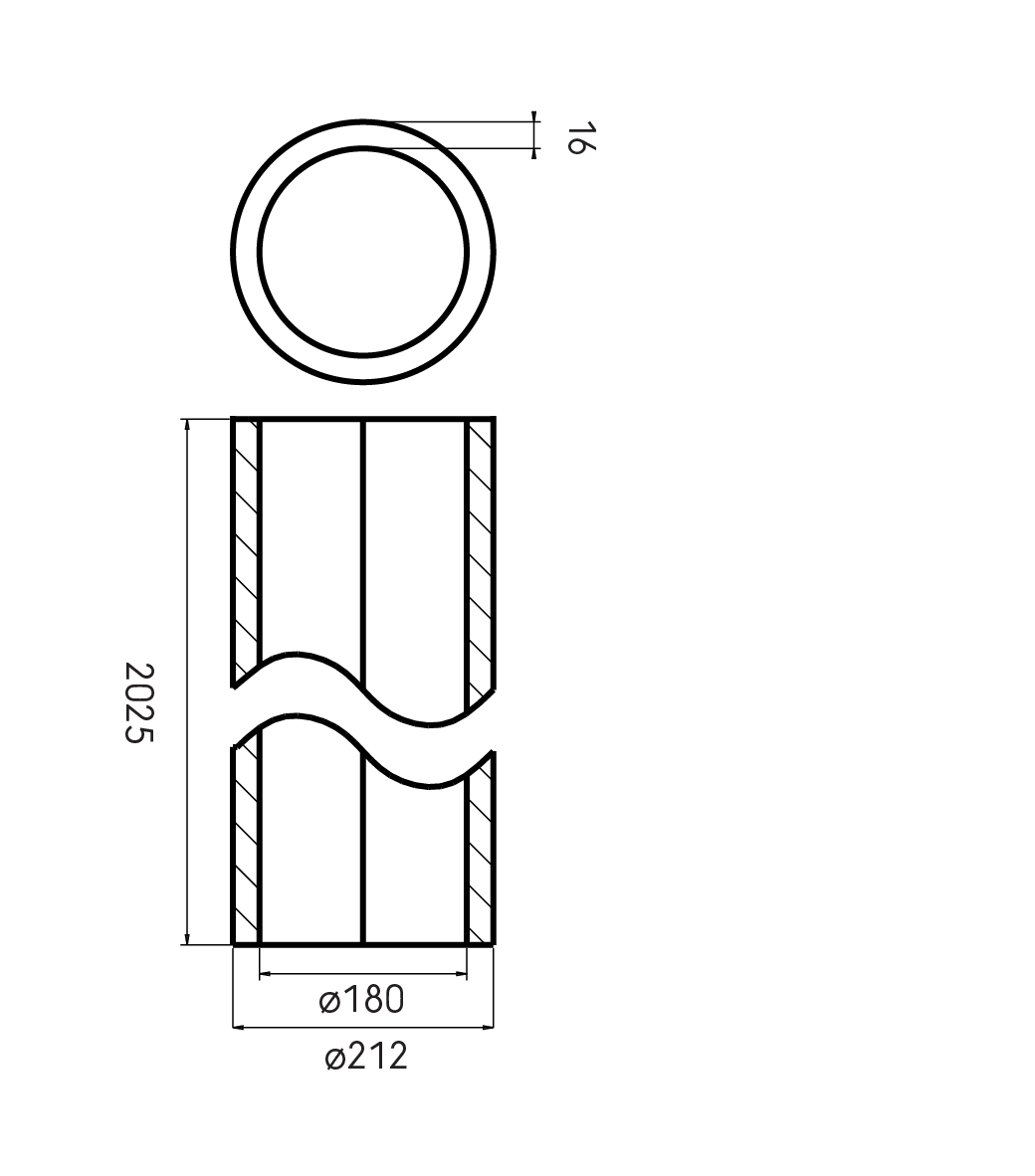

Dimensional Drawing - Aerfoam duct 180x2000mm

Specifications

General

Product Name
180mm Aerfoam Insulated Duct 2m
GTIN
8713645203409
Part number
100000188206
Type
Extensions
Trade name
Aerfoam

Technical

Comm. Dimension
180 mm
Shape
Circular
Airflow direction
Supply / extract
Color
Gray
Insulation thickness
16 mm

Dimensions

Length gross
2000 mm / 78.7 inch
Height
212 mm / 8.3 inch
Width
212 mm / 8.3 inch
Net weight
0.54 kg / 1.2 lbs

Logistical

Intrastat
39259080
Base unit packaging
Unpacked
Packaging / Trade length
2025 mm / 79.7 inch
Packaging / Trade height
212 mm / 8.3 inch
Number per packaging
1
Gross weight
0.54 kg / 1.2 lbs
Packaging / Trade width
212 mm / 8.3 inch

Performance

CE string
-
Temperature resistance (max.)
60 °C
Temperature resistance (min.)
-30 °C
