Air Excellent AE34C Floor Grille Adaptor

Article number: 188973

An AE34C (DN75/63mm) duct accessory. Use AE34C duct seal and click rings to make airtight mechanical connections (airtightness Class ATC1 up to +/- 1000 Pa).

  • Low system pressure loss due to radial design
  • Airtightness Class ATC1 up to +/- 1000 Pa, which minimizes fan energy use and sound production
  • Modular manifolds, which can be used with all duct types
  • Semi-rigid ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • TÜV SÜD and ISEGA tested and certified, REACH compliant
View all specifications

All media

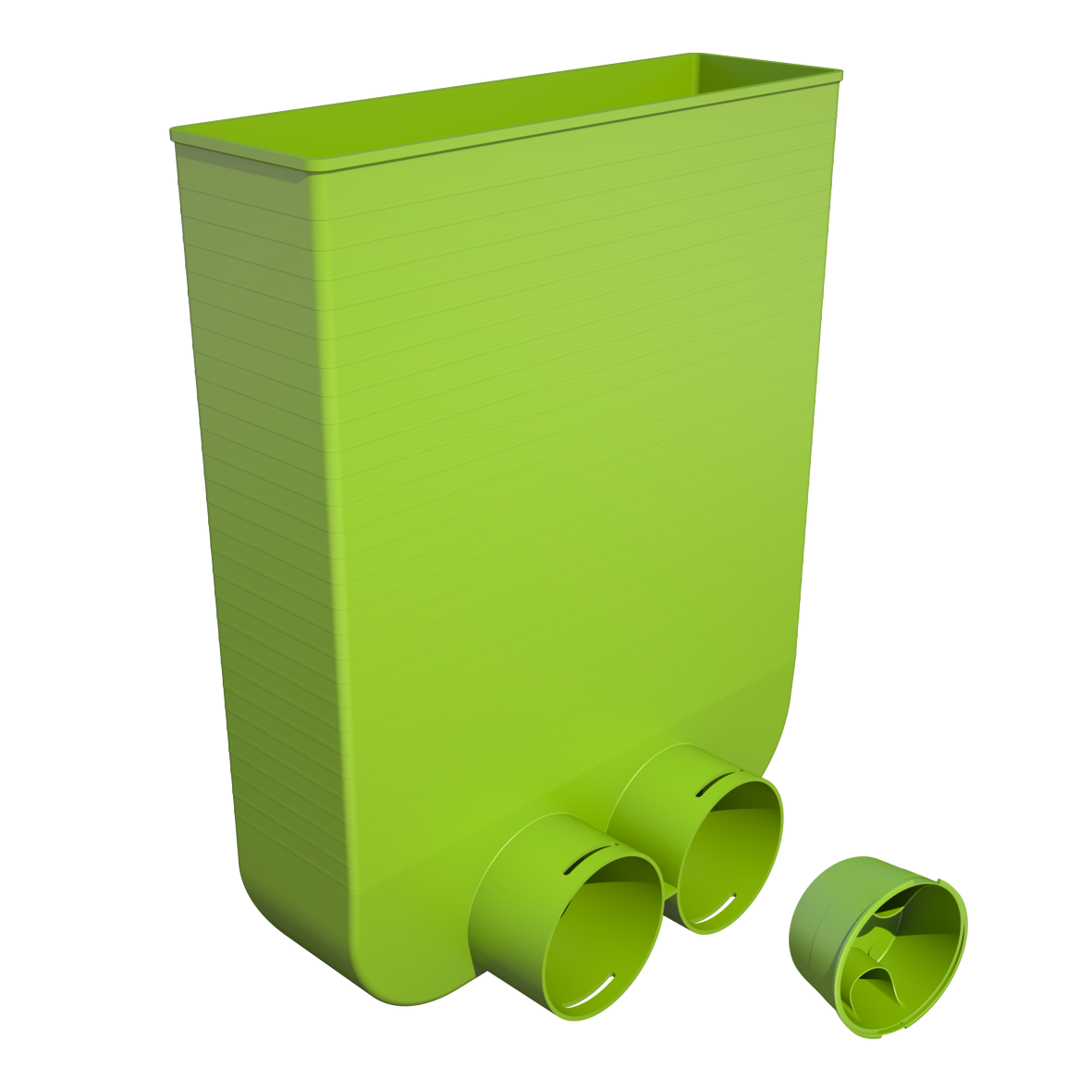

188.397-AE34c-FloorGrillAdapter

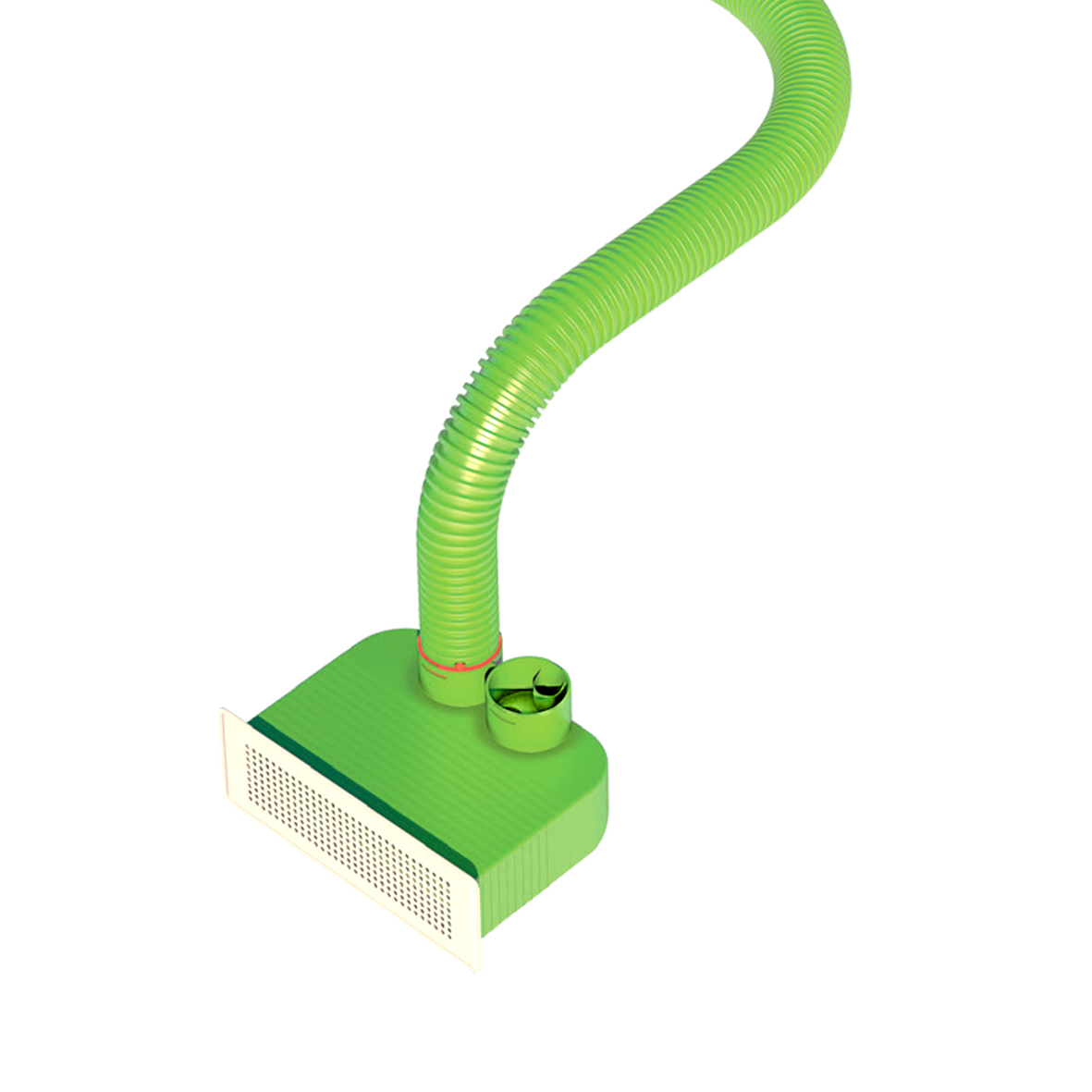

Application picture - Air Excellent AE34C Accessory cap and  Floor Grille Adaptor

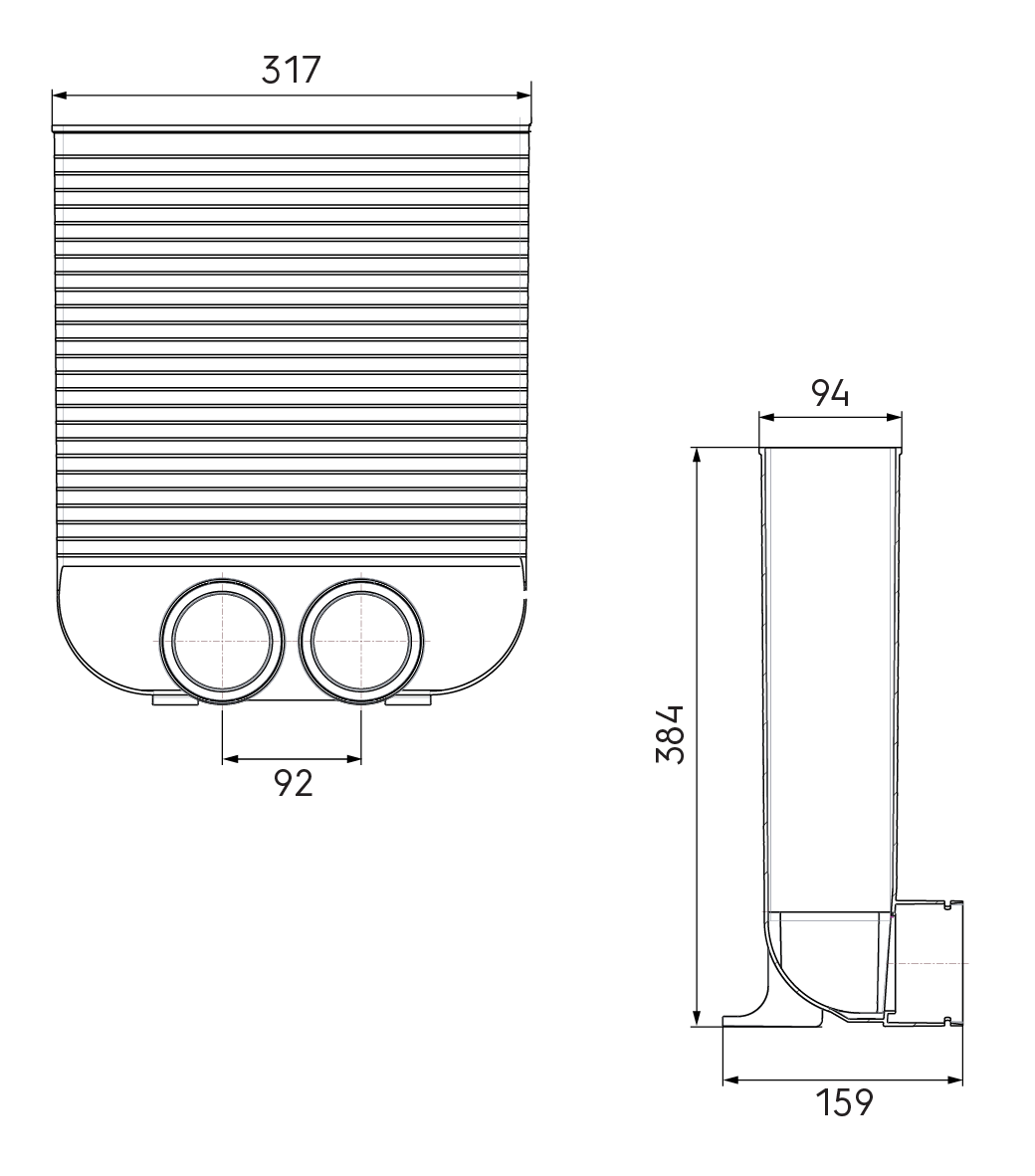

Dimensional drawing – AE34C Floor Grille Adaptor

Detailed information

This item can be used to terminate a duct run inside a habitable room. An Air Excellent floor grille must be inserted into it.

Specifications

General

Product Name
Air Excellent AE34C Floor Grille Adaptor
GTIN
8713645248622
Trade name
Air Excellent
Type
Adaptors
Accessories in package
Cover caps
Part number
100000188973

Technical

Comm. Dimension
75 mm
Shape
Circular
Anti static
Airflow direction
Supply / extract
Color
Green
Number of connections
2
Antimicrobial

Dimensions

Length gross
159 mm / 6.3 inch
Height
383 mm / 15.1 inch
Width
317 mm / 12.5 inch
Net weight
0.793 kg / 1.7 lbs

Logistical

Intrastat
39259080
Base unit packaging
Unpacked
Packaging / Trade length
159 mm / 6.3 inch
Packaging / Trade height
383 mm / 15.1 inch
Number per packaging
1
Gross weight
0.793 kg / 1.7 lbs
Packaging / Trade width
317 mm / 12.5 inch

Performance

CE string
-
Temperature resistance (max.)
60 °C
Temperature resistance (min.)
-20 °C
