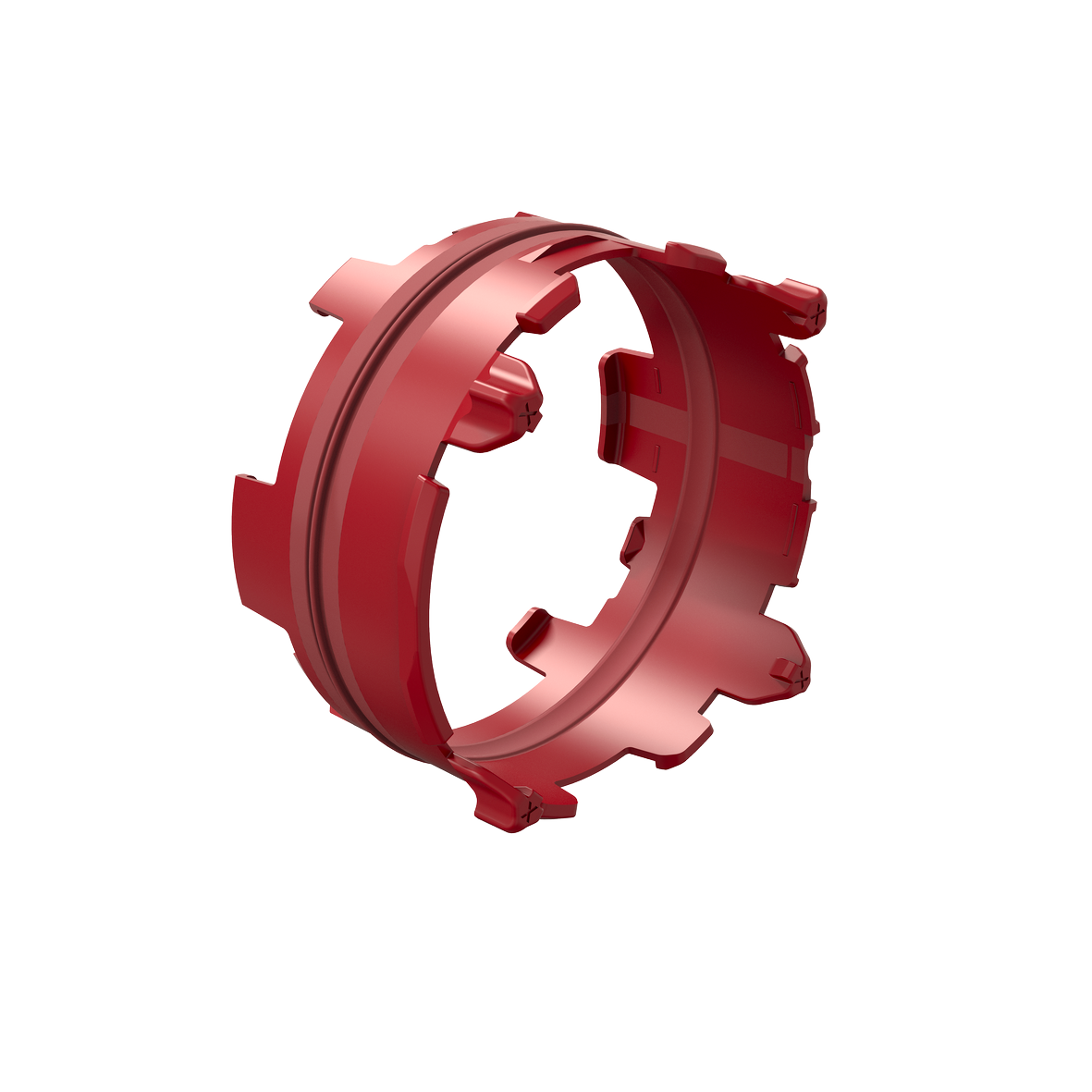

Air Excellent AE34C Click-Seal Ring (10 Pieces)

Article number: 188991

The AE34C Click-Seal ring connects Air Excellent ducts to system accessories, creating a secure and airtight mechanical joint. The ring features a patented 2-in-1 click and seal mechanism, enabling fast, tool-free installation in just one click while ensuring reliable system performance.

  • Airtight connections for reliable system performance
  • Low pressure loss to reduce fan energy use
  • Quick, tool-free installation in just one click
  • Patented 2-in-1 click and seal mechanism
  • TÜV SÜD-certified for quality and safety
View all specifications

All media

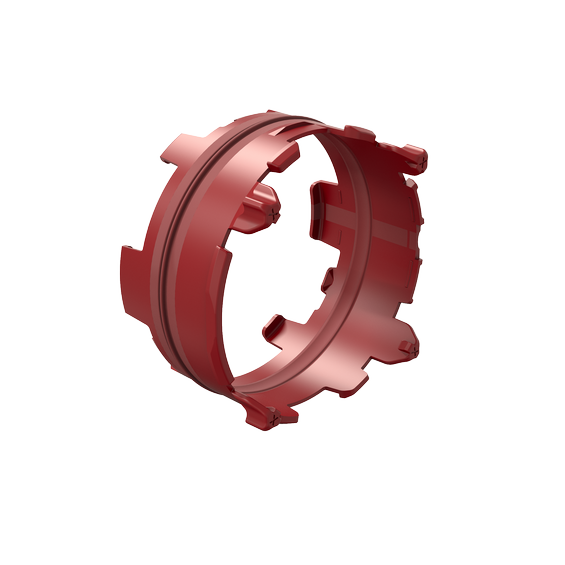

Air Excellent AE34C Seal Ring - 75 mm
Application picture - Air Excellent distribution box DB206H125 6 connections
Application picture - Air Excellent AE34C - AE35SC Adaptor Kit

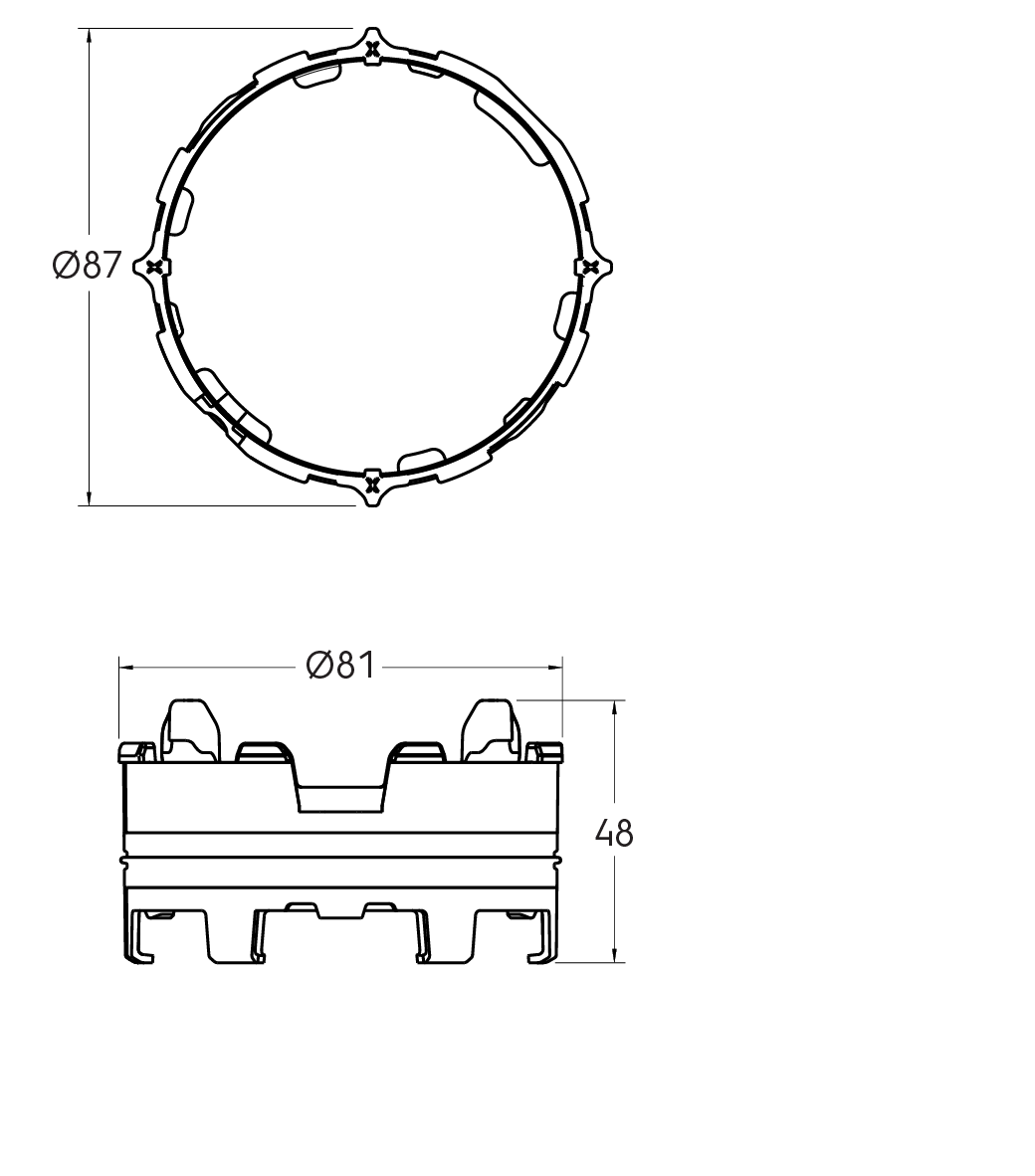

Dimensional drawing – Air Excellent AE34C Click-Seal Ring

Specifications

General

Product Name
Air Excellent AE34C Click-Seal Ring (10 Pieces)
GTIN
8713645247816
Part number
100000188991
Type
Connectors
Trade name
Air Excellent

Technical

Comm. Dimension
75 mm
Shape
Circular
Antimicrobial
Color
Red
Anti static
Airflow direction
Supply / extract

Dimensions

Length gross
87 mm / 3.4 inch
Height
48 mm / 1.9 inch
Width
87 mm / 3.4 inch
Net weight
0.013 kg / 0 lbs

Logistical

Intrastat
39259080
Gross weight
0.5 kg / 1.1 lbs
Packaging / Trade width
250 mm / 9.8 inch
Base unit packaging
Box
Packaging / Trade length
350 mm / 13.8 inch
Packaging / Trade height
48 mm / 1.9 inch

Performance

CE string
-
Temperature resistance (max.)
60 °C
Temperature resistance (min.)
-20 °C
