Air Excellent AE34C Connector Kit

Article number: 188993

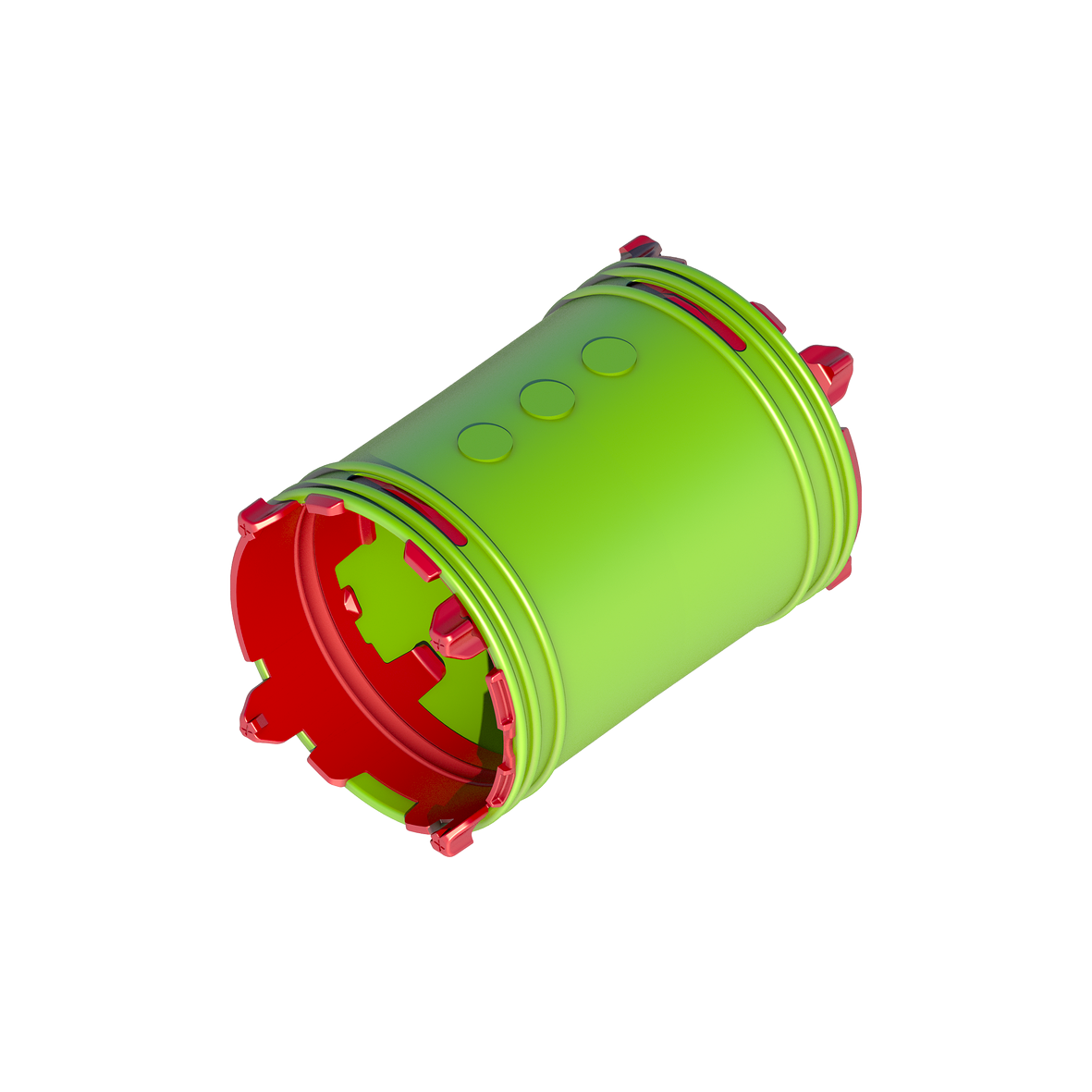

The AE34C Connector Kit seamlessly connects two AE34C ducts, ensuring a quick, secure and tool-free installation. Includes two AE34C Click-Seal Rings.

Airtight connections for reliable system performance
Low pressure loss to reduce fan energy use
Quick, tool-free installation
Lightweight design for easy handling
TÜV SÜD-certified for quality and safety

View all specifications

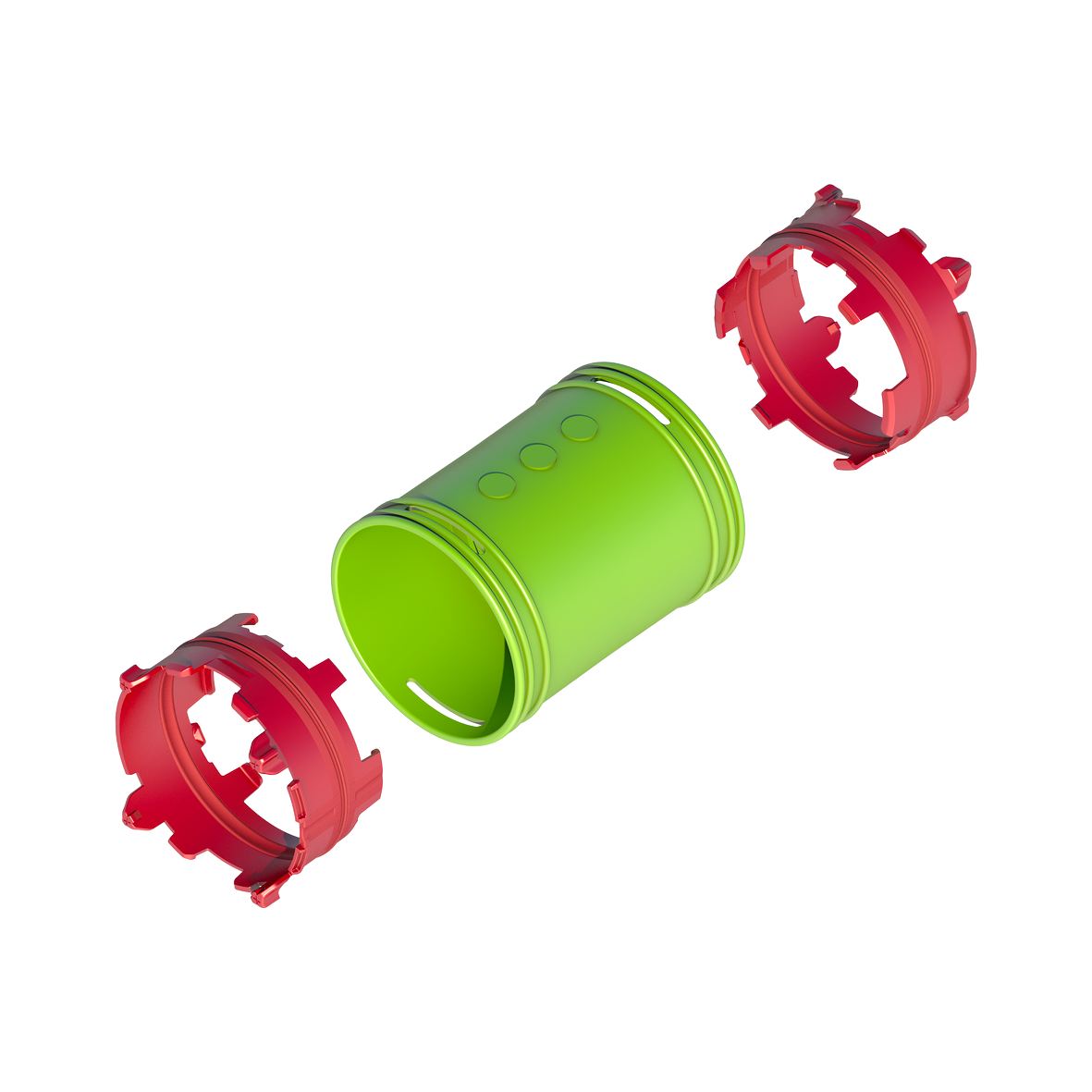

Exploded view - Air Excellent AE34C Connector Kit

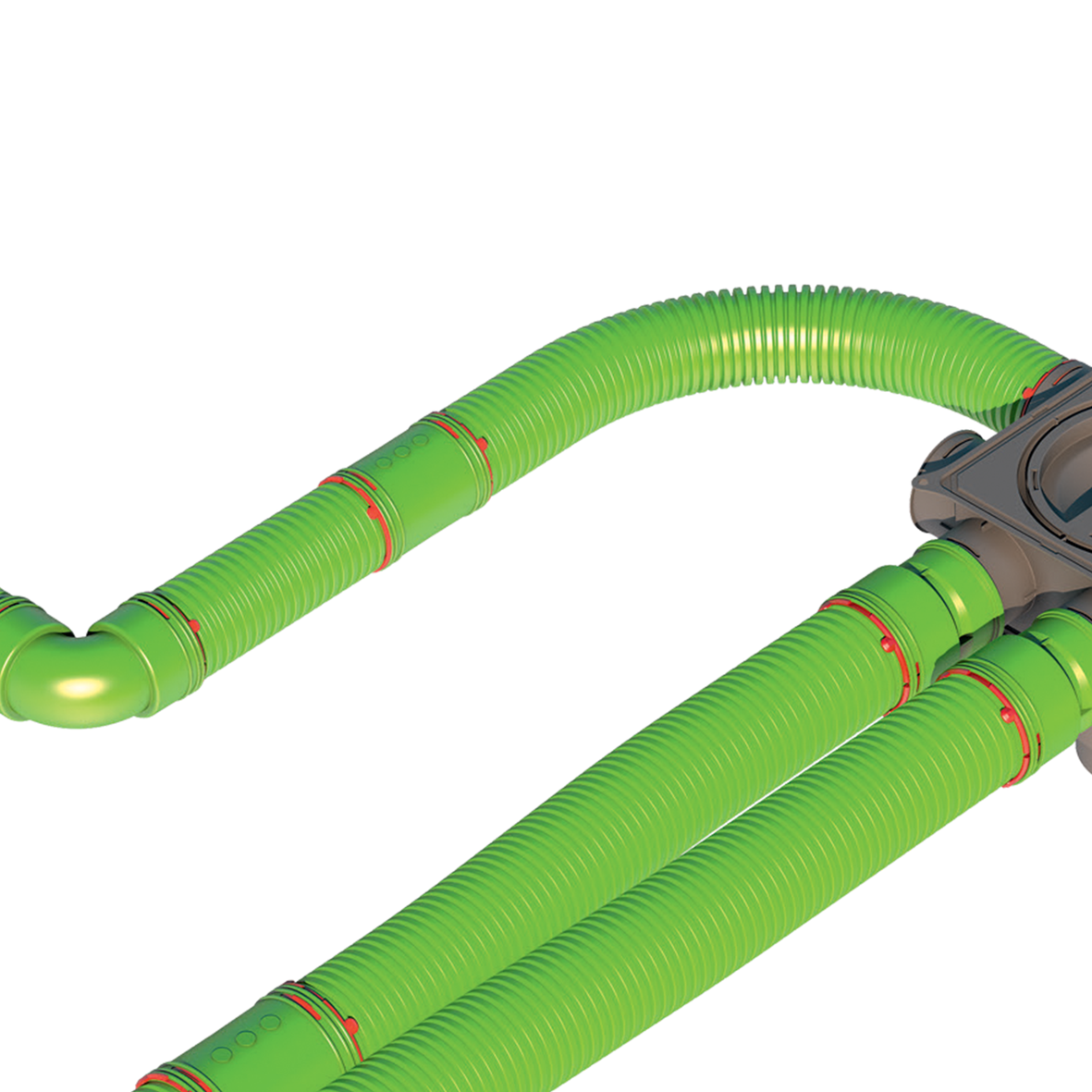

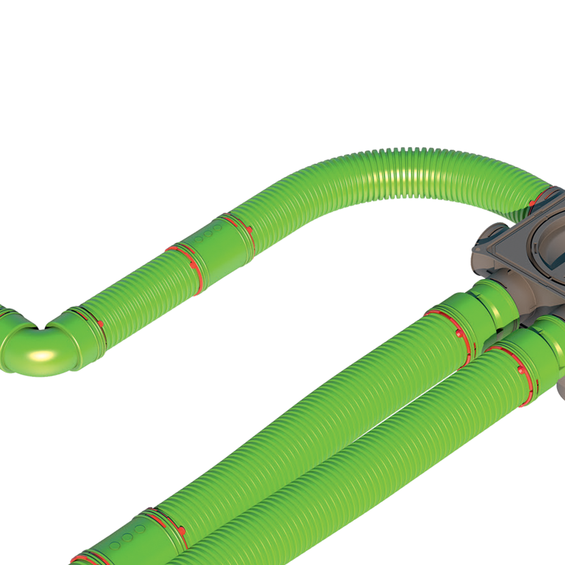

Application picture - Air Excellent AE34C Connector

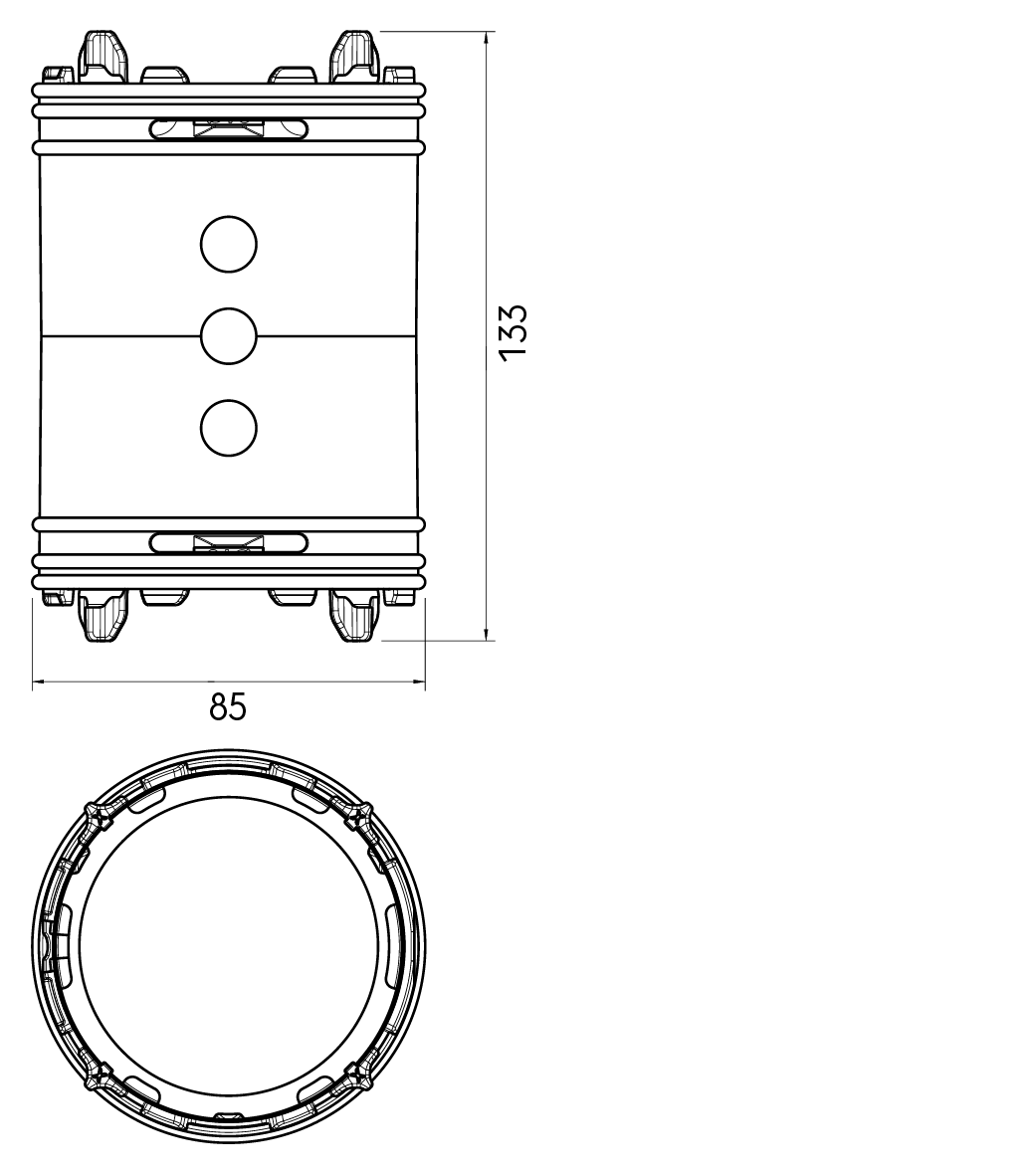

Dimensional drawing - Air Excellent AE34C Connector Kit

Specifications

General

Product Name

Air Excellent AE34C Connector Kit

Trade name

Air Excellent

GTIN

8713645247694

Part number

100000188993

Technical

Comm. Dimension

75 mm

Shape

Circular

Anti static

Airflow direction

Supply / extract

Color

Green

Number of connections

1

Antimicrobial

Dimensions

Length gross

133 mm / 5.2 inch

Height

85 mm / 3.3 inch

Width

85 mm / 3.3 inch

Net weight

0.075 kg / 0.2 lbs

Logistical

Intrastat

39259080

Gross weight

0.075 kg / 0.2 lbs

Packaging / Trade width

85 mm / 3.3 inch

Base unit packaging

Unpacked

Packaging / Trade length

133 mm / 5.2 inch

Packaging / Trade height

85 mm / 3.3 inch

Performance

CE string

-

Temperature resistance (max.)

60 °C

Temperature resistance (min.)

-20 °C
