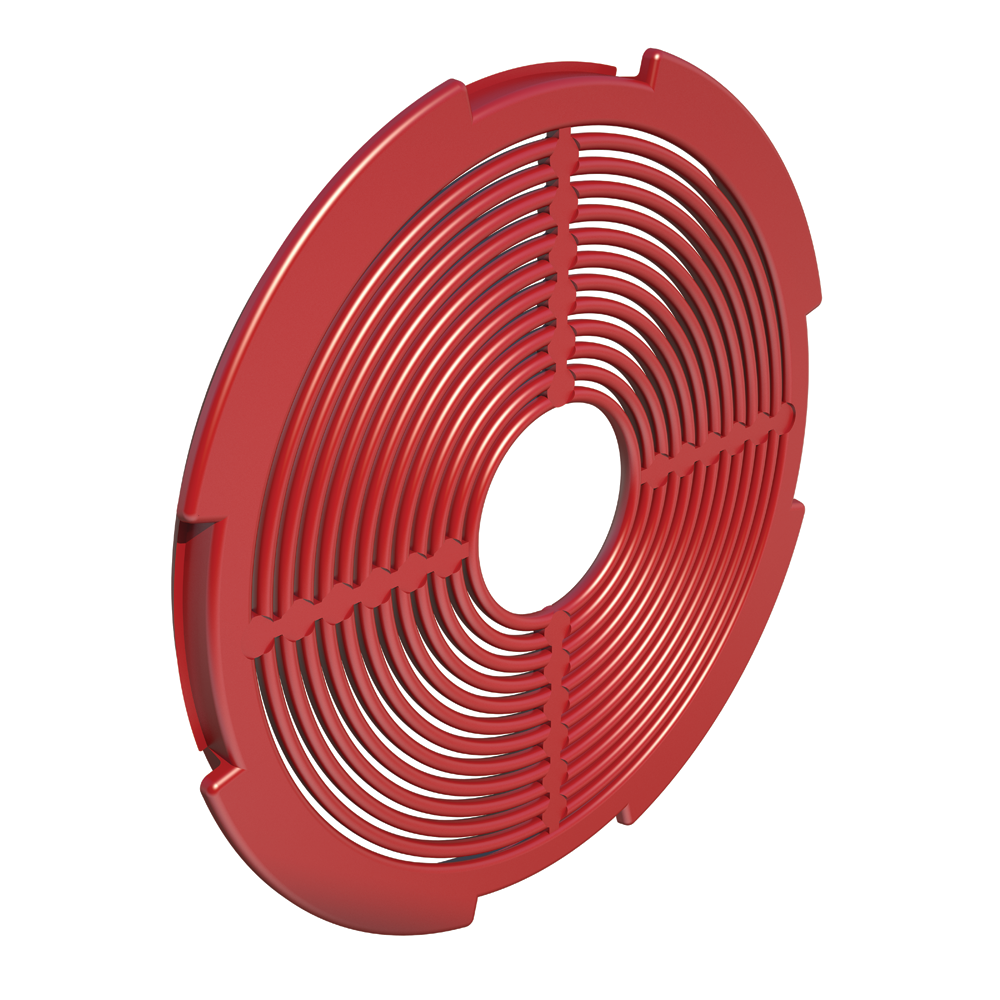

Air Excellent DBOX Internal Air Restrictor Ring

Article number: 188564

The Air Excellent DBOX Internal Air Restrictor Rings, installed in the distribution box, allows precise adjustment of the air flow rate for each duct, ensuring optimal ventilation performance. Each restrictor features twelve rings, with settings determined by the Aerflux configurator that indicates how many rings to remove. The rings are easily applied with simple pressure and can be quickly removed for cleaning or maintenance.

  • Precise air flow control for each duct individually
  • Easy, tool-free adjustment
View all specifications

All media

188564-AirFlowRestrictor

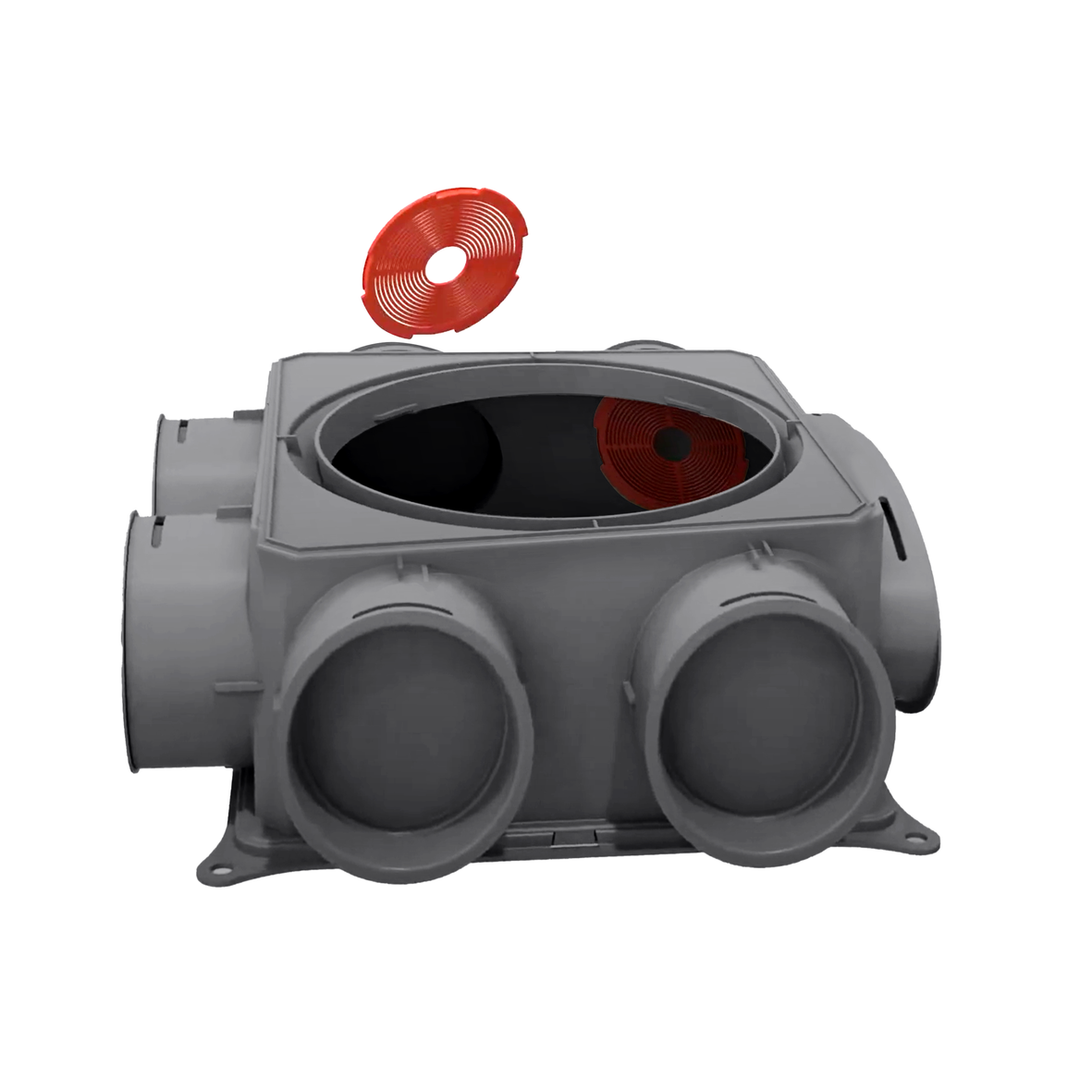

Application picture - Air Excellent DBOX Internal Air Restrictor Ring

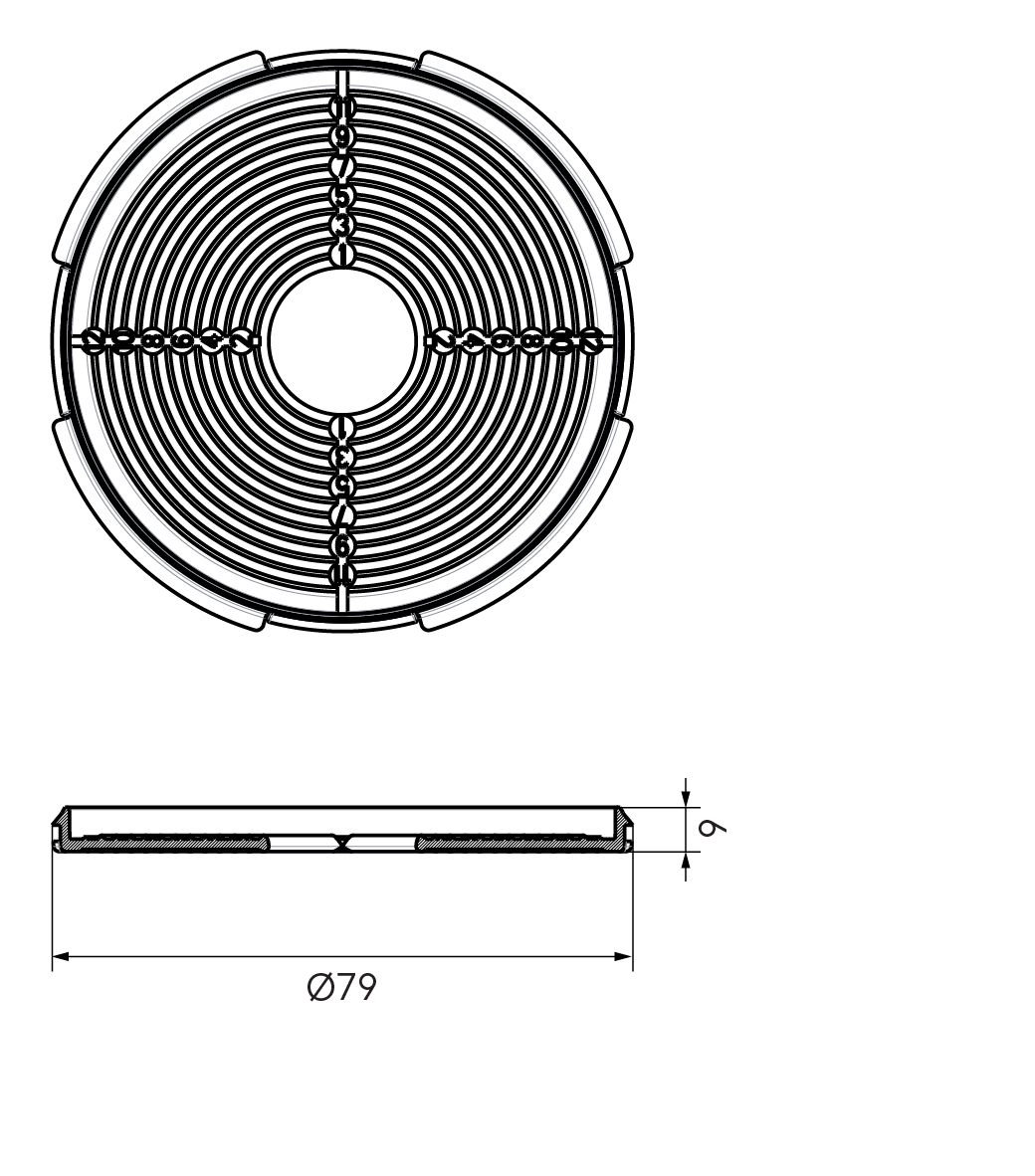

Dimensional drawing – DBOX internal air restrictor ring
Video thumbnail

Specifications

General

Product Name
Air Excellent DBOX Internal Air Restrictor Ring
GTIN
8713645213507
Part number
100000188564
Type
Accessories
Trade name
Air Excellent

Technical

Comm. Dimension
75 mm
Shape
Circular
Antimicrobial
Color
Red
Anti static
Airflow direction
Supply / extract

Dimensions

Length gross
79 mm / 3.1 inch
Height
9 mm / 0.4 inch
Width
79 mm / 3.1 inch
Net weight
0.01 kg / 0 lbs

Logistical

Intrastat
39259080
Base unit packaging
Unpacked
Packaging / Trade length
79 mm / 3.1 inch
Packaging / Trade height
9 mm / 0.4 inch
Number per packaging
1
Gross weight
0.01 kg / 0 lbs
Packaging / Trade width
79 mm / 3.1 inch

Performance

CE string
-
Temperature resistance (max.)
60 °C
Temperature resistance (min.)
-20 °C
