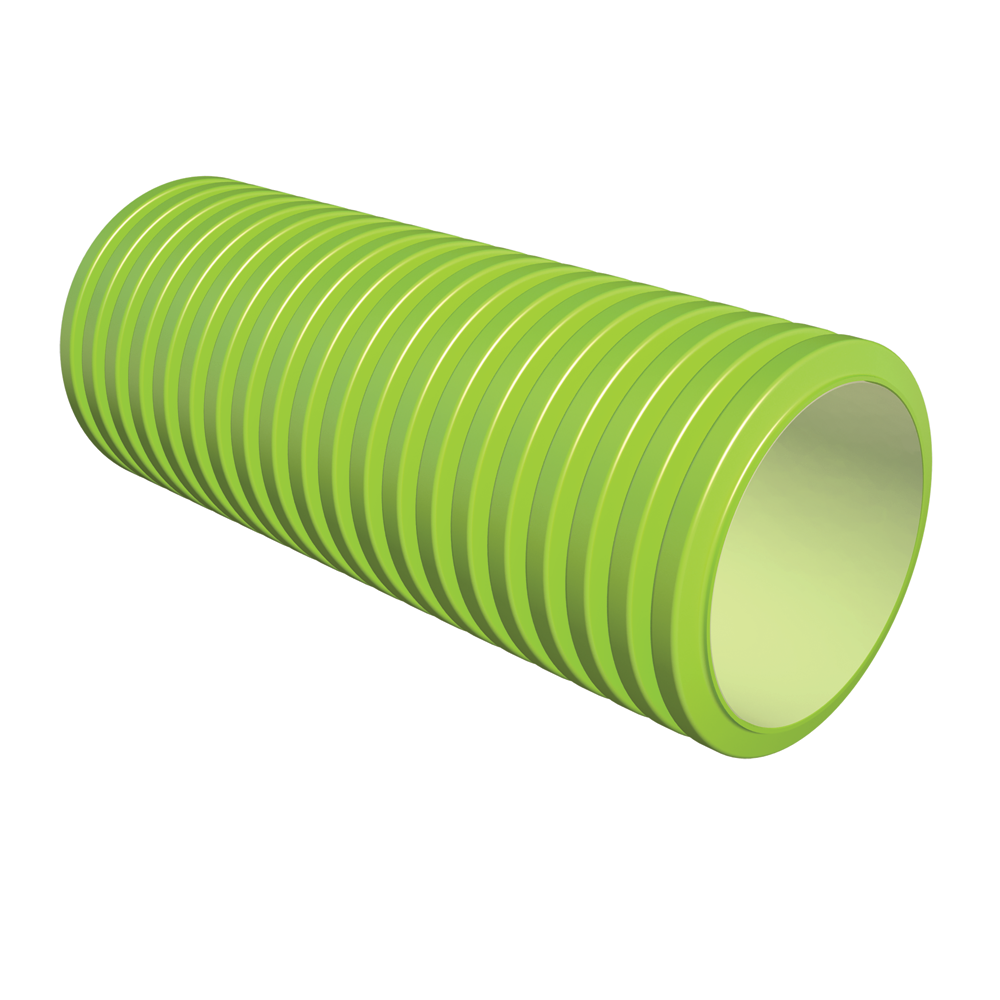

Air Excellent AE34C Semi-Rigid Duct Anti-Microbial & Anti-Static 50m

Article number: 188661

An Air Excellent semi-rigid plastic duct DN75/63mm with Anti-Microbial and Anti-Static additives.

  • Low system pressure loss due to radial design
  • Airtightness Class ATC1 up to +/- 1000 Pa, which minimises fan energy use and sound production
  • Modular manifolds, which can be used with all duct types
  • Semi-rigid ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • TÜV SÜD and ISEGA tested and certified, REACH compliant
View all specifications

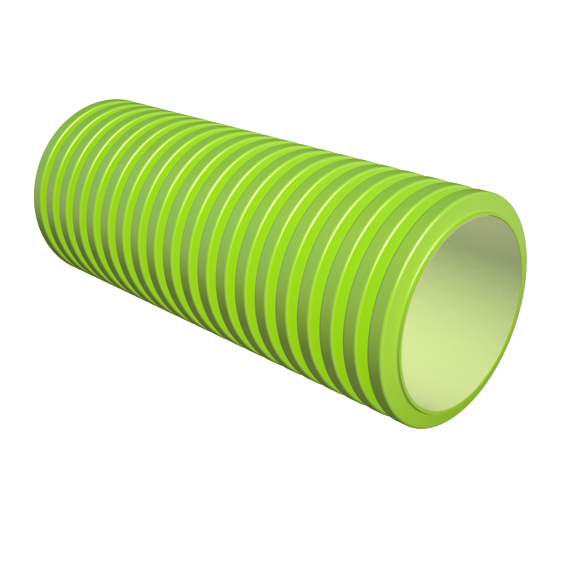

AE-Circular FlexPipe

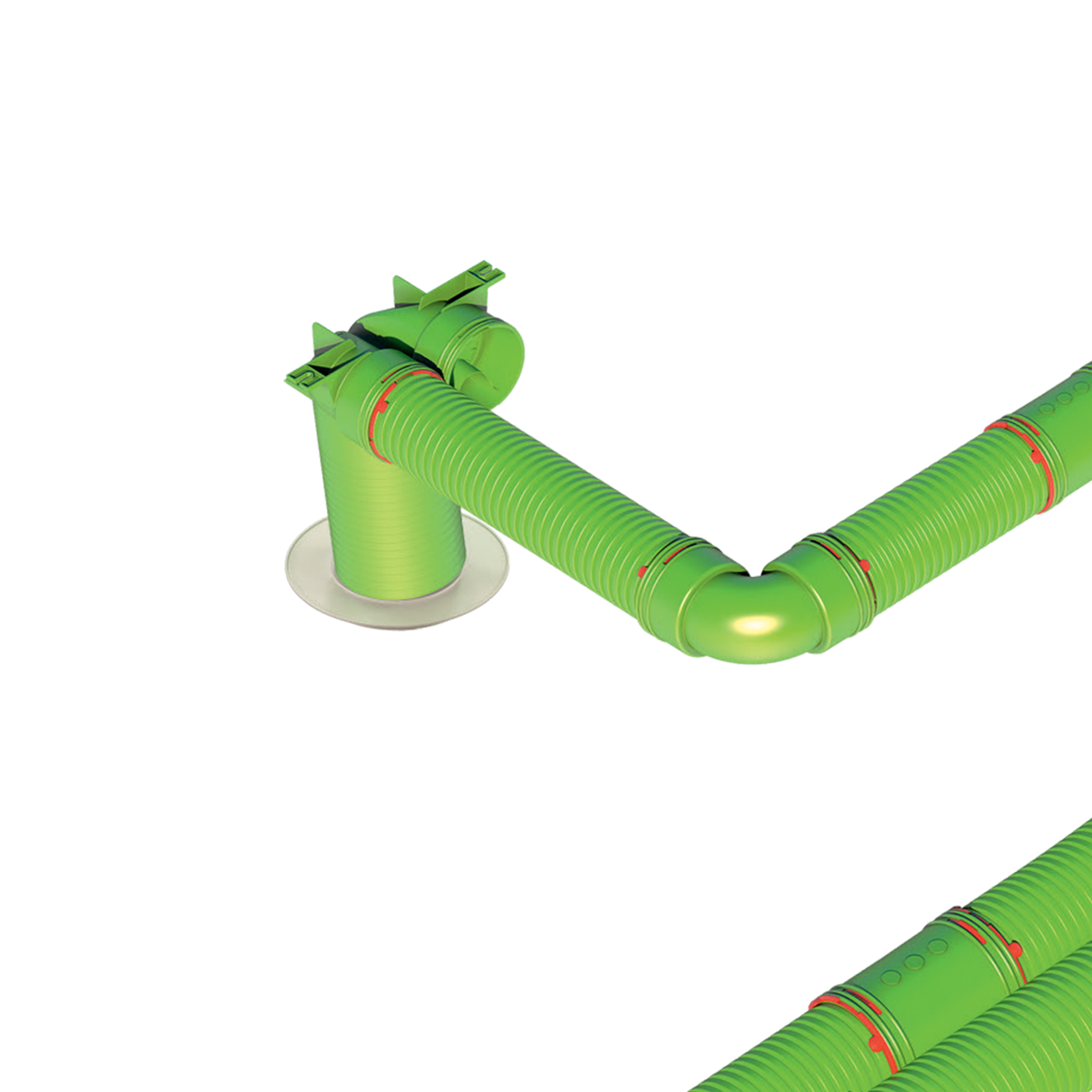

Application picture - Air Excellent distribution box DB206H125 6 connections

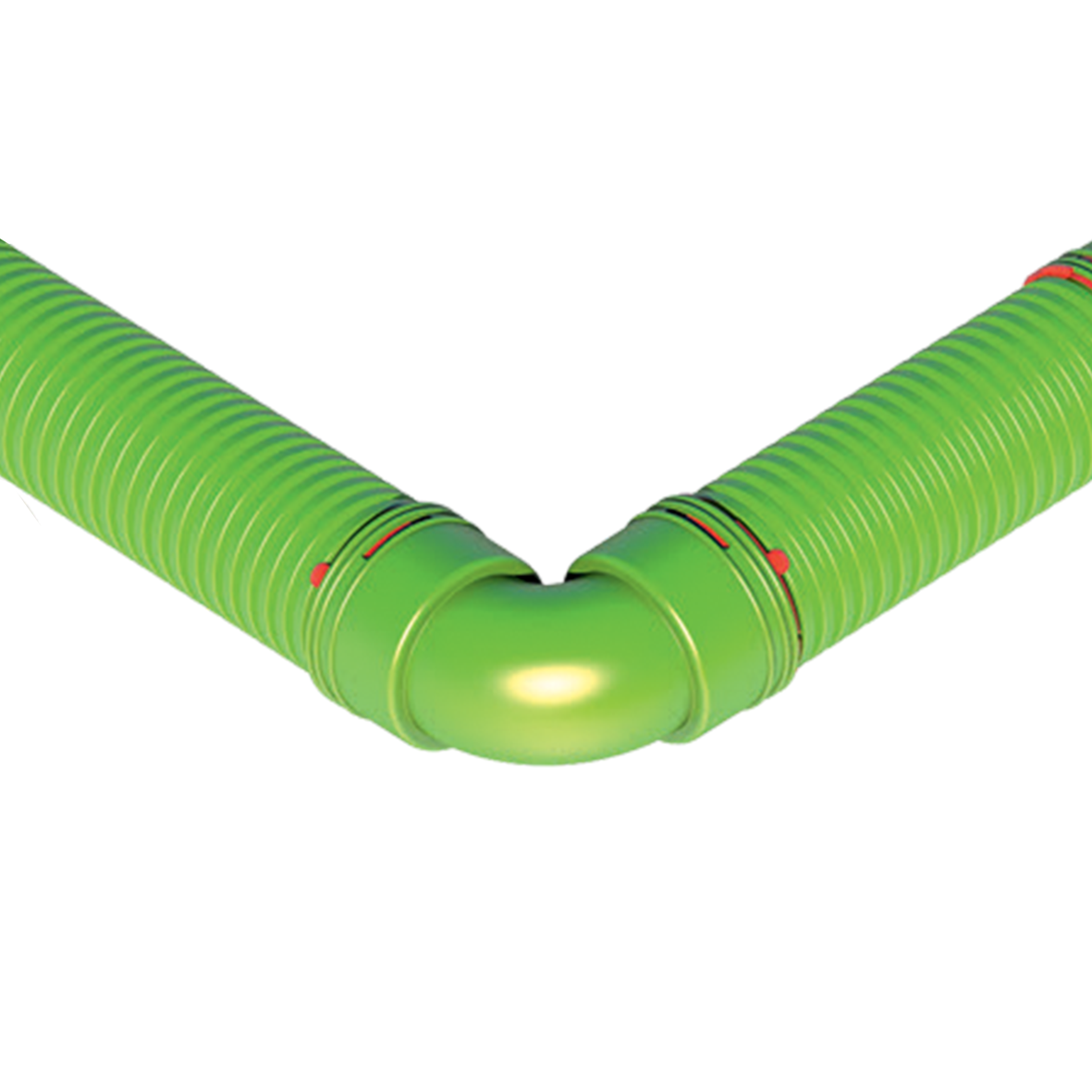

Application picture - Air Excellent AE34C Bend 90°
Application picture - Air Excellent AE34C Accessory cap and  Floor Grille Adaptor
Application picture - Air Excellent AE34C Connector

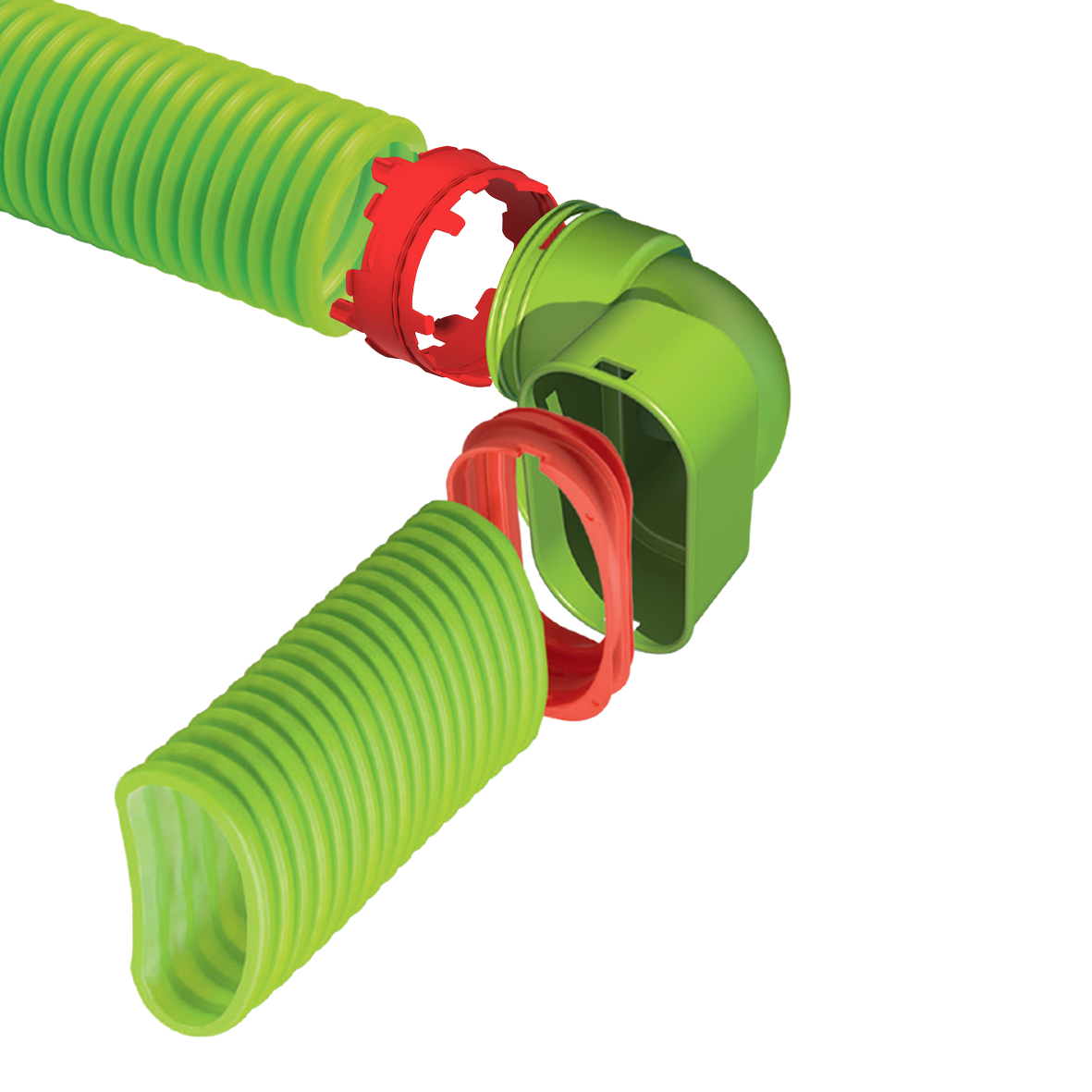

Application picture - Air Excellent AE34C - AE35SC Adaptor Kit
Application picture - Air Excellent AE34C Valve Adaptor Kit

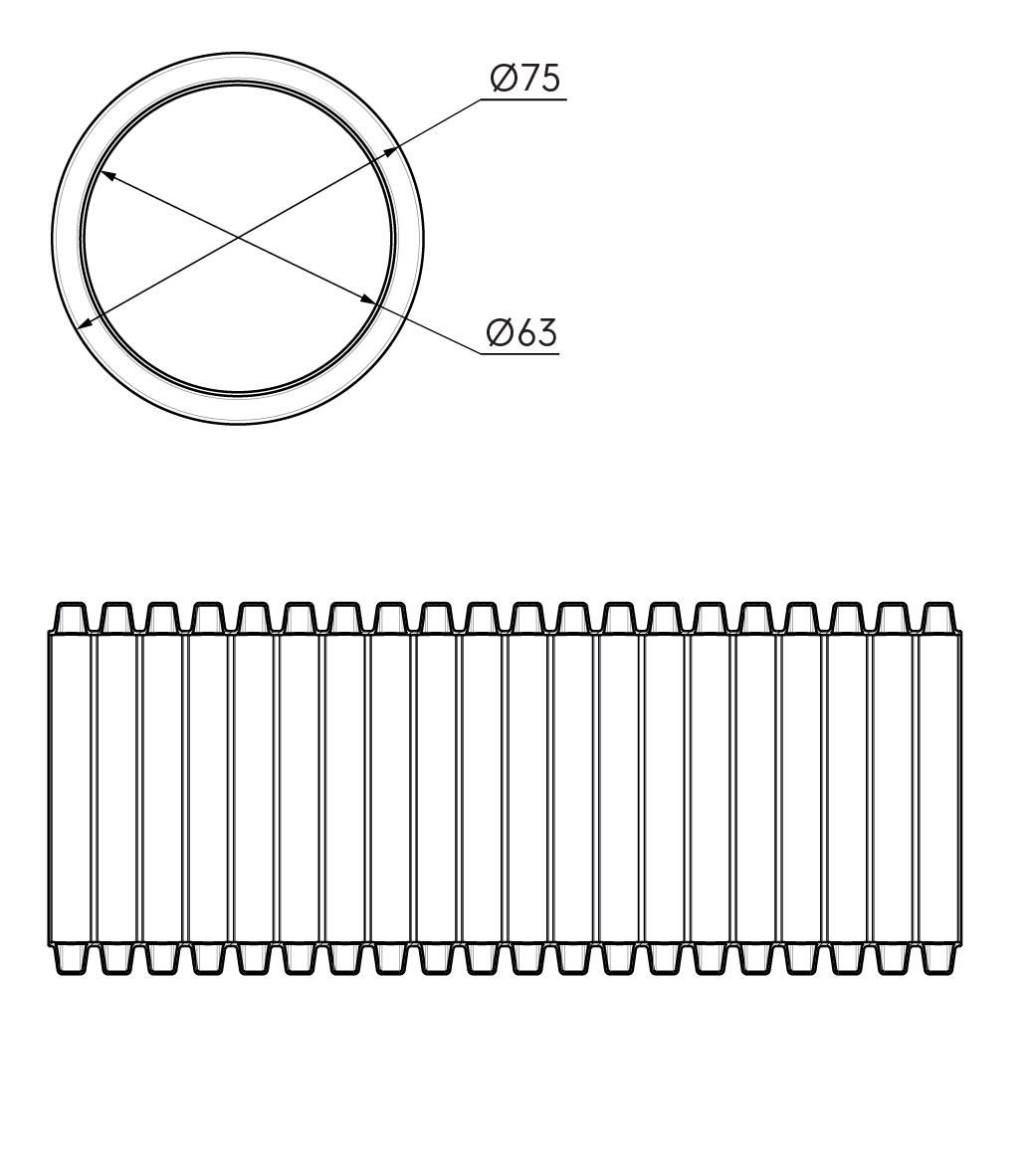

Dimensional drawing – AE34C Semi-Rigid Duct
Video thumbnail

Detailed information

It allows air to circulate between the distribution boxes and the rooms in the home. The duct is treated with silver ions and has antistatic and antimicrobial properties. Circular ducting makes installation quick, easy, intuitive and leak-free. It is ideal for installations with large, unobstructed duct volumes.

Specifications

General

Product Name
Air Excellent AE34C Semi-Rigid Duct Anti-Microbial & Anti-Static 50m
GTIN
4049193055714
Part number
205073000048
Type
Ductwork
Trade name
Air Excellent

Technical

Comm. Dimension
75 mm
Shape
Circular
Antimicrobial
Color
Green
Anti static
Airflow direction
Supply / extract

Dimensions

Length gross
50000 mm / 1968.5 inch
Height
75 mm / 3 inch
Width
75 mm / 3 inch
Net weight
16.63 kg / 36.7 lbs

Logistical

Intrastat
39173200
Base unit packaging
Roll
Packaging / Trade length
1200 mm / 47.2 inch
Packaging / Trade height
350 mm / 13.8 inch
Number per packaging
1
Gross weight
16.63 kg / 36.7 lbs
Packaging / Trade width
1200 mm / 47.2 inch

Performance

Temperature resistance (min.)
-20 °C
Temperature resistance (max.)
60 °C
Installation temperature (max.)
50 °C
Installation temperature (min.)
0 °C
