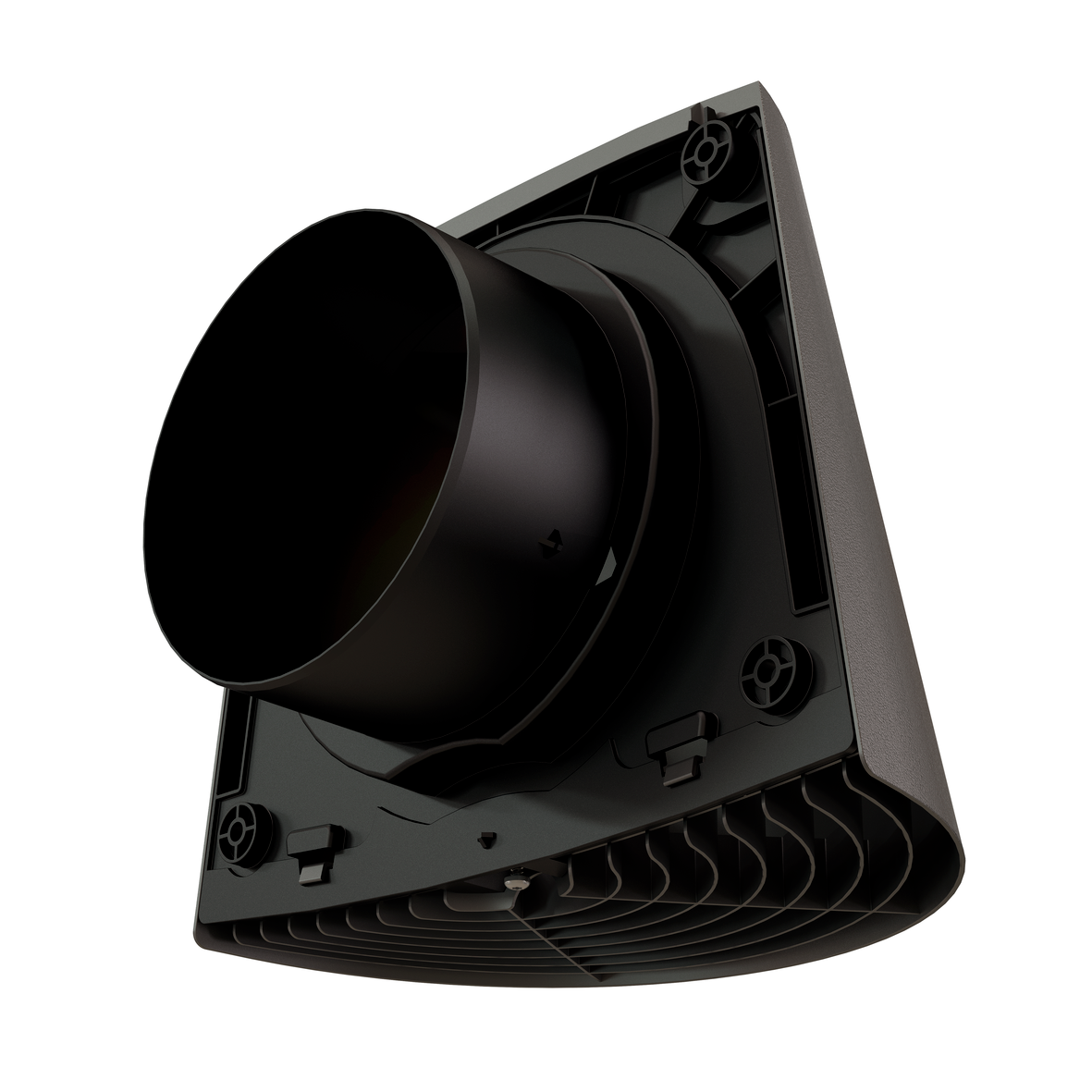

Contego Wall Terminal 180mm Black and Grey

Article number: 188842

The Wall Terminal 180 mm is a metal terminal designed for use in central mechanical ventilation systems. Suitable for both supply and exhaust air, it connects directly to the Aerfoam insulated ducts and ensures efficient airflow between the ventilation unit and the outdoor environment. Its powder-coated finish provides long-lasting protection and UV resistance, while the front grille prevents birds and small animals from entering.

  • Direct connection to Aerfoam insulated ducts
  • Airtight mechanical connection
  • Equipped with a protective mesh
  • Powder-coated finish for long-lasting aesthetics and UV resistance
View all specifications

All media

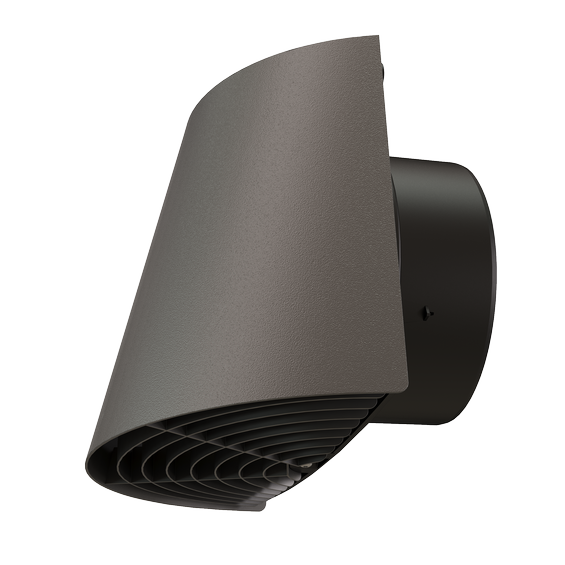

Contego wall terminal 200mm PP grey/black
Contego wall terminal 180mm PP grey/black
Contego wall terminal PP grey/black

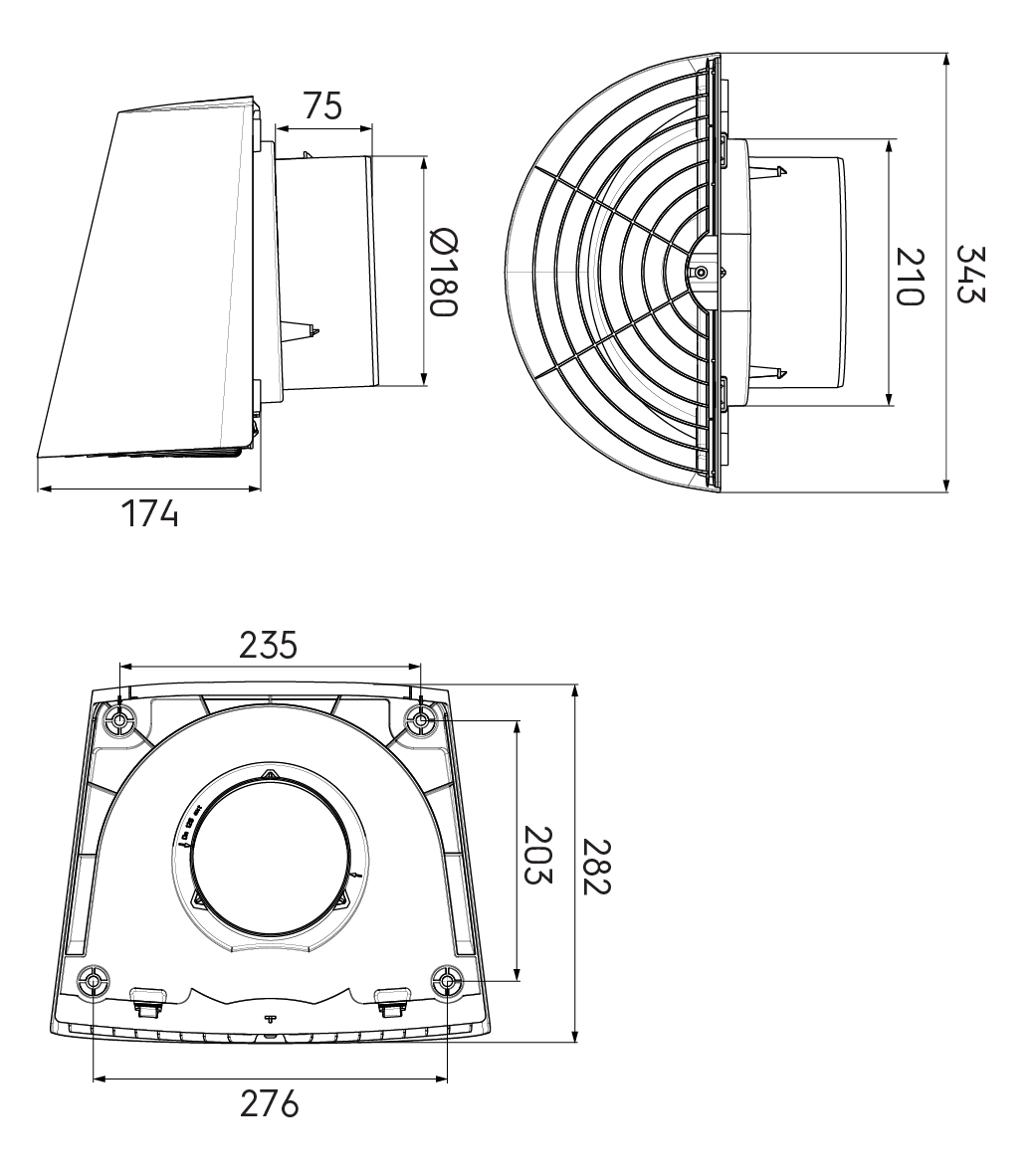

Dimensional drawing – Contego wall terminal 180mm PP grey/black

Specifications

General

Product Name
Contego Wall Terminal 180mm Black and Grey
GTIN
8713645246512
Part number
100000188842
Type
Wall Terminals
Trade name
Contego

Technical

Comm. Dimension
180 mm
Airflow direction
Supply / extract
Color
Anthracite

Dimensions

Length gross
266 mm / 10.5 inch
Height
282 mm / 11.1 inch
Width
343 mm / 13.5 inch
Net weight
0.69 kg / 1.5 lbs

Logistical

Intrastat
39259080
Base unit packaging
Box
Packaging / Trade length
355 mm / 14 inch
Packaging / Trade height
210 mm / 8.3 inch
Number per packaging
1
Gross weight
0.92 kg / 2 lbs
Packaging / Trade width
300 mm / 11.8 inch

Performance

CE string
-
