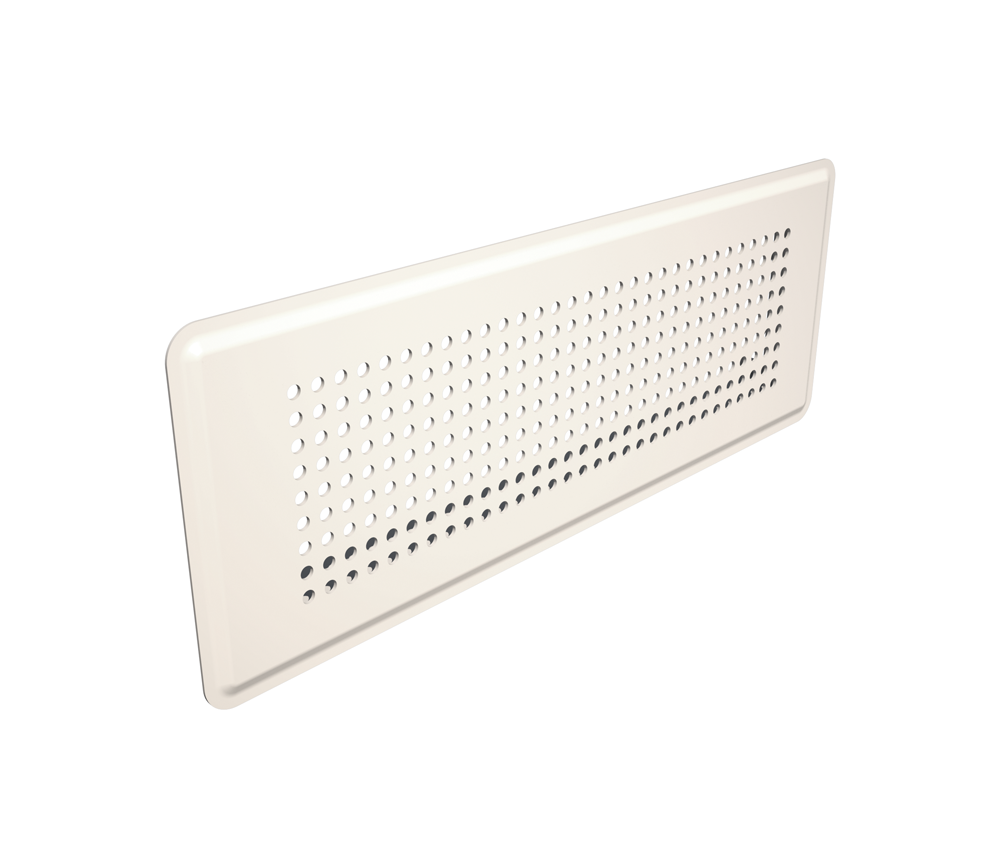

Floor Grille - White

Article number: 188316

A sleek and modern floor grille designed for use with Air Excellent floor grille adaptors. Its rectangular air inlet ensures a smooth and efficient flow of fresh air into living spaces. Suitable for both floor and wall installation.

  • Discreet appearance that blends seamlessly into any interior
  • Easy to clean and maintain
  • Fully dismantlable for convenient access and servicing
  • Quick and simple installation
View all specifications

All media

188316-WHITE Grill

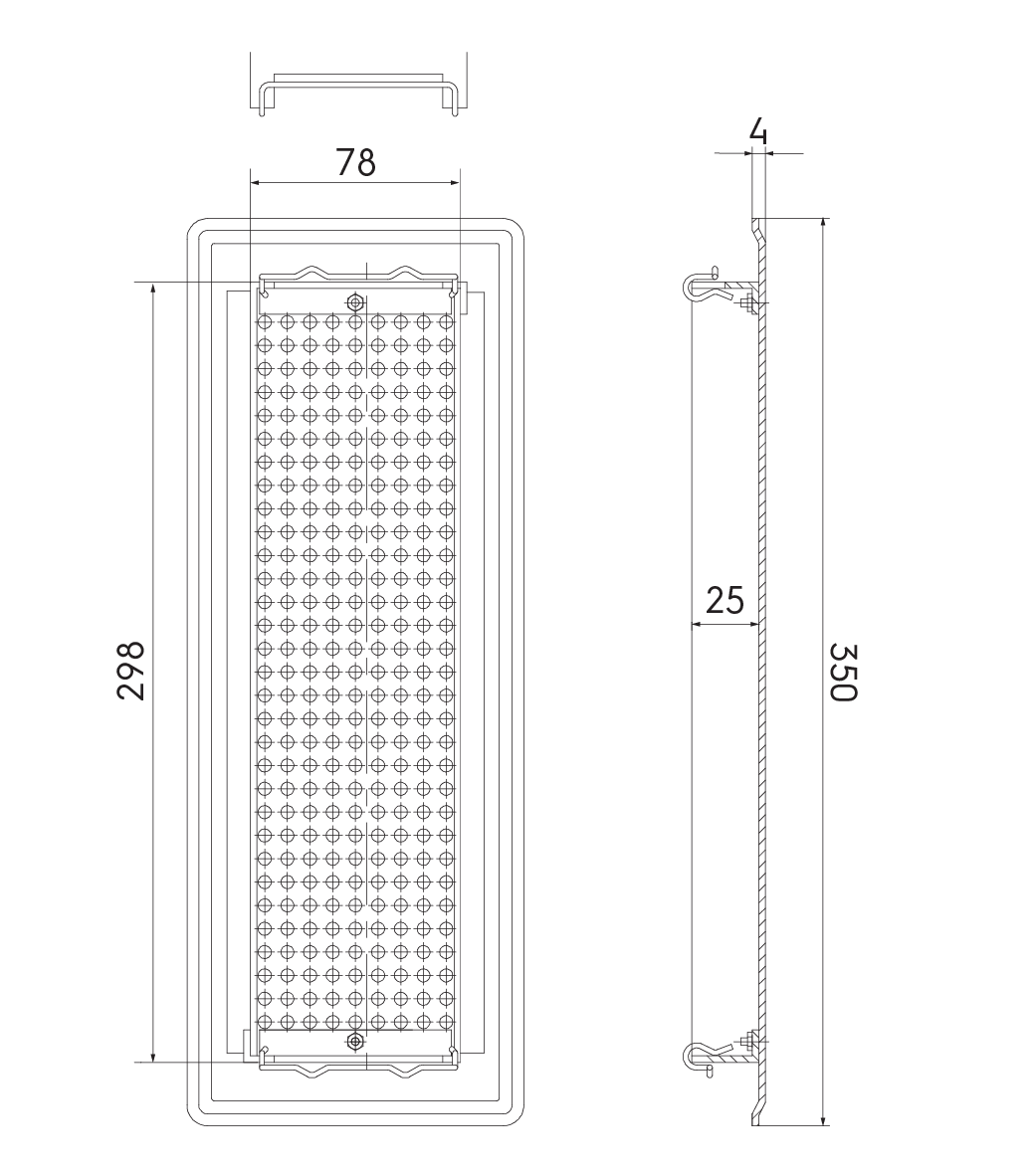

Dimensional drawing – Air Excellent floor grille

Specifications

General

Product Name
Floor Grille - White
GTIN
8713645175119
Part number
100000188316
Type
Valves & Grilles
Trade name
Air Excellent

Technical

Comm. Dimension
50 x 100 mm / 60 x 130 mm / 75 mm / 90 mm
Shape
Rectangular
Color
White
Airflow direction
Supply / extract

Dimensions

Length gross
350 mm / 13.8 inch
Height
25 mm / 1 inch
Width
130 mm / 5.1 inch
Net weight
0.53 kg / 1.2 lbs

Logistical

Intrastat
39259080
Base unit packaging
Box
Packaging / Trade length
365 mm / 14.4 inch
Packaging / Trade height
40 mm / 1.6 inch
Number per packaging
1
Gross weight
0.63 kg / 1.4 lbs
Packaging / Trade width
145 mm / 5.7 inch

Performance

CE string
-
Supply capacity
50 m³/h
Temperature resistance (max.)
60 °C
Extract capacity
50 m³/h
Temperature resistance (min.)
-20 °C
