2" Snout Termination Kit

Article number: ISSNTTK02

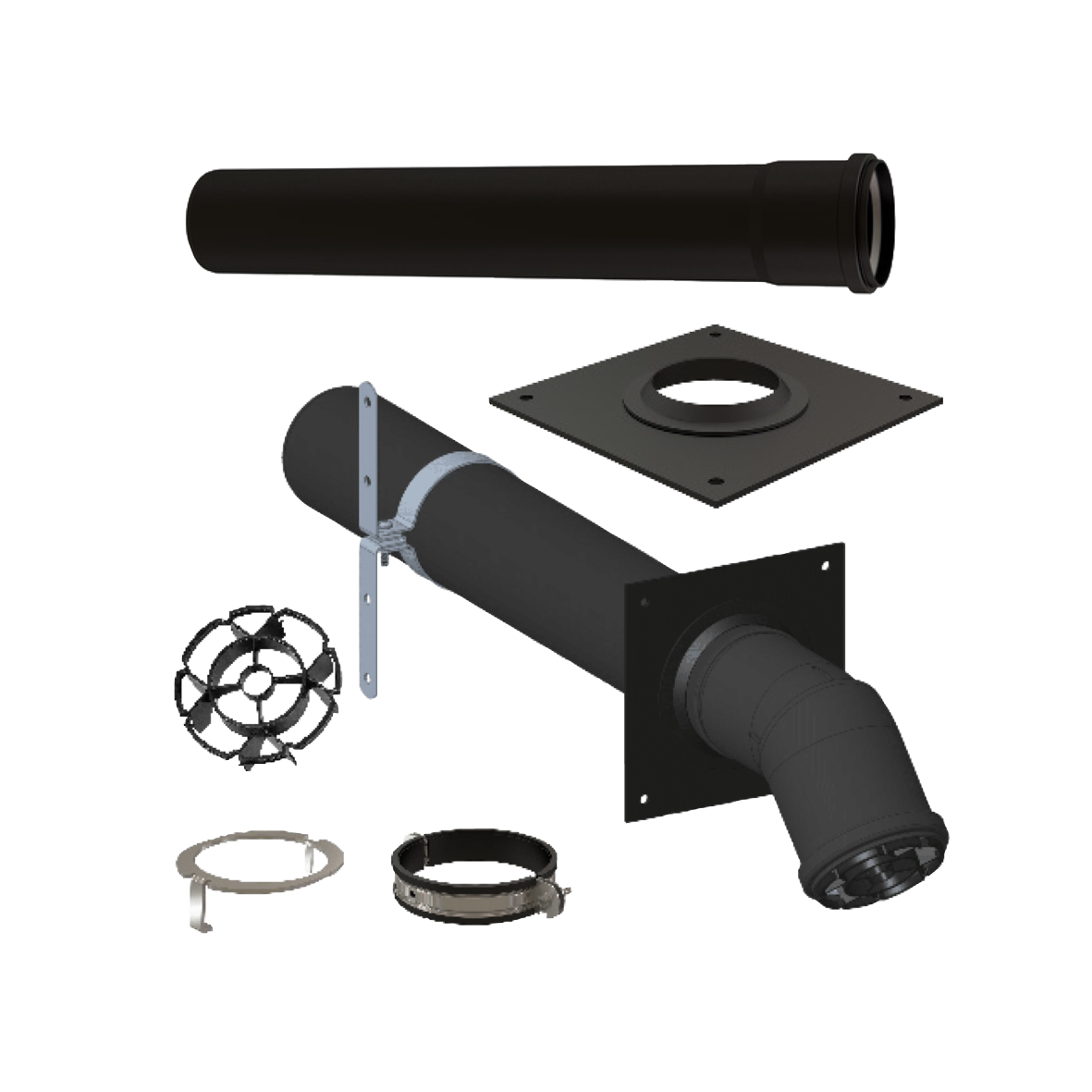

The 2" InnoFlue® Snout Termination Kit features a one-piece air intake termination designed for residential venting applications. The kit includes a bird screen, support clamp, and wall plate, providing the essential components for a streamlined installation.

  • One-piece air intake termination design
  • Includes bird screen, support clamp, and wall plate
View all specifications

All media

Snout Termination Kit Black
Video thumbnail
Video thumbnail

Specifications

General

Product Name
2" Snout Termination Kit
Part number
250407007990
GTIN
0810017294336

Technical

Color
Black
Material
PPs
Bird protection
System type
Single wall
Material flue pipe
PPs

Dimensions

Length gross
533.4 mm / 21 inch
Height
140.46 mm / 5.5 inch
Diameter air inlet pipe
60 mm
Width
76.2 mm / 3 inch
Net weight
1.51 kg / 3.3 lbs
Diameter flue pipe
60 mm / 2 inch

Logistical

Intrastat
3925900000
Gross weight
1.51 kg / 3.3 lbs
Packaging / Trade width
323.85 mm / 12.7 inch
Base unit packaging
Box
Packaging / Trade length
590.55 mm / 23.2 inch
Packaging / Trade height
381 mm / 15 inch

Performance

CE string
-
Temperature resistance (max.)
120 °C / 230 °F
