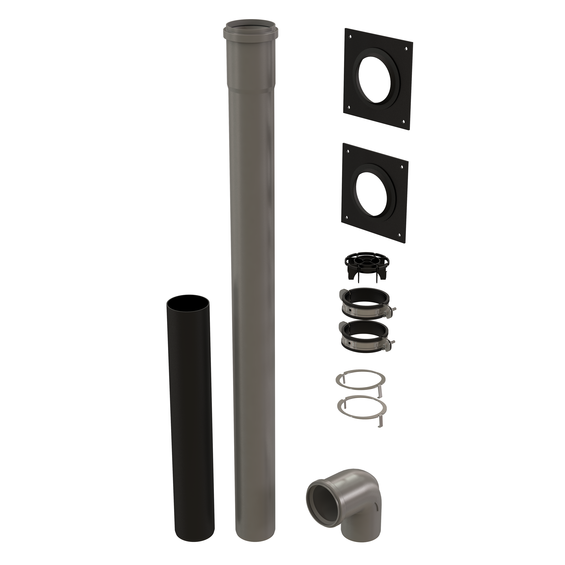

3" Single Wall Vent Kit Horizontal

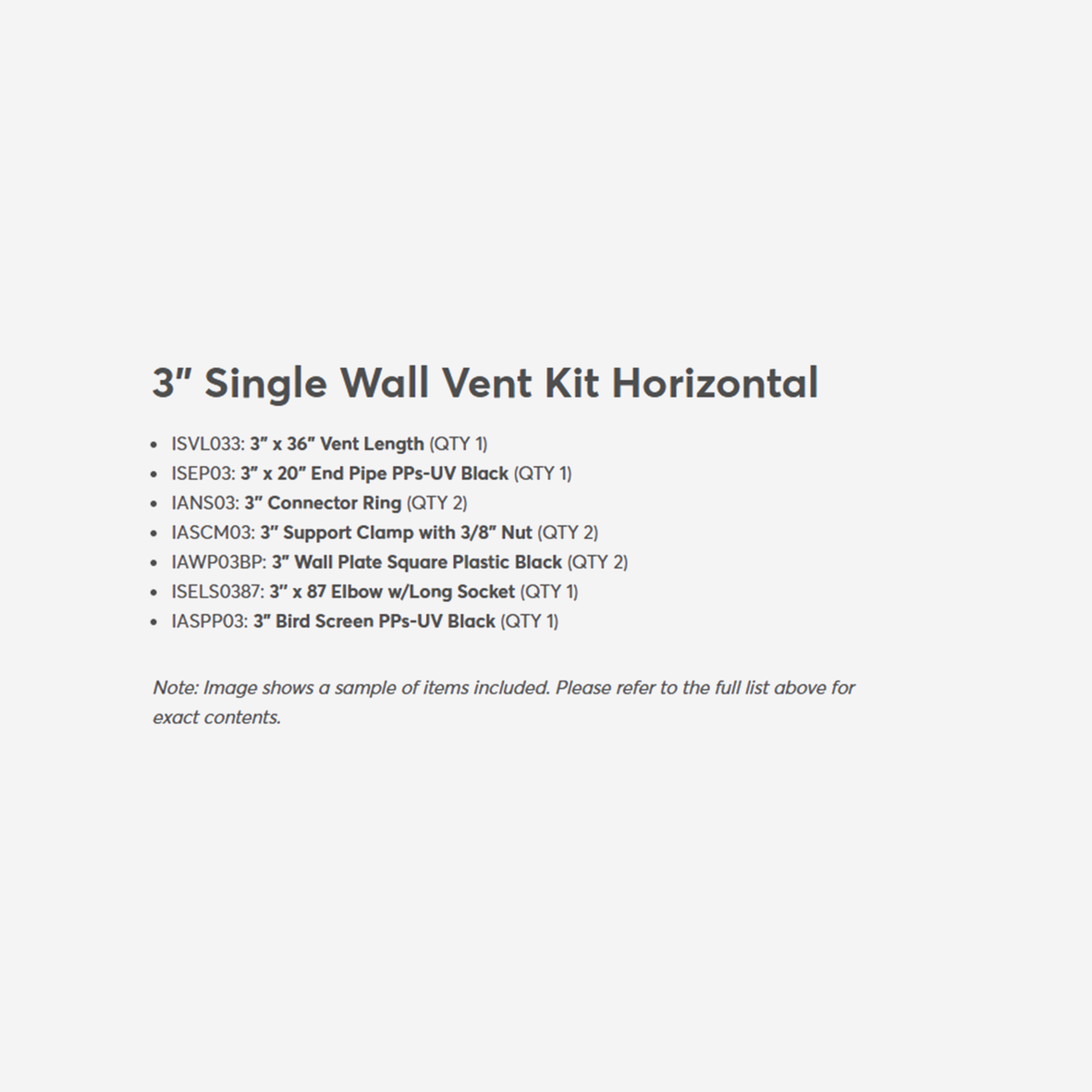

3in Single Wall Vent Kit Horizontal / kit contents v2

3" Single Wall Vent Kit Horizontal

Article number: ISVKH03

3" Single Wall Vent Kit Horizontal
3in Single Wall Vent Kit Horizontal / kit contents v2
3" Single Wall Vent Kit Horizontal
3in Single Wall Vent Kit Horizontal / kit contents v2

InnoFlue Horizontal Vent Kits include all the components necessary to sidewall terminate an exhaust run. Rated to 230°F (110°C), InnoFlue Horizontal Vent Kits are the easiest way to quickly complete shorter horizontal installations without repeated trips to the distributor.

  • Saves time and money at jobsite and distributor.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Lightweight and durable.
  • Installs quickly & easily without glues, primers, or solvents.
  • Rated to 230°F (110°C).
View all specifications

Specifications

Product Name
3" Single Wall Vent Kit Horizontal
Accessories in package
Bracket / Inner plate / Outer plate / Clamp / Bird protection
Part number
250407103290
GTIN
0815010014967
Trade name
InnoFlue

Color
Gray
Material
PPs
Bird protection
System type
Single wall
Material flue pipe
PPs

Length gross
239 mm / 9.4 inch
Height
1230 mm / 48.4 inch
Diameter flue pipe
80 mm / 3 inch
Width
235 mm / 9.3 inch
Net weight
2.105 kg / 4.6 lbs

Intrastat
3917220000
Base unit packaging
Unpacked
Packaging / Trade length
239 mm / 9.4 inch
Packaging / Trade height
1230 mm / 48.4 inch
Number per packaging
1
Gross weight
2.105 kg / 4.6 lbs
Packaging / Trade width
235 mm / 9.3 inch

Temperature resistance (max.)
120 °C

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
