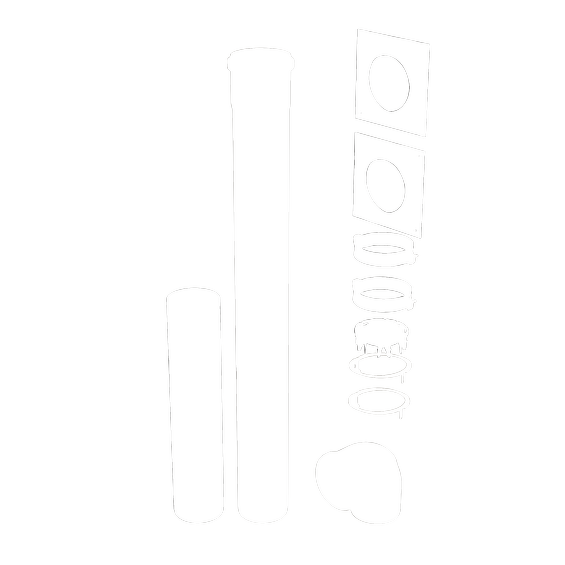

4" Single Wall Vent Kit Horizontal

Article number: ISVKH04

InnoFlue Horizontal Vent Kits include all the components necessary to sidewall terminate an exhaust run. Rated to 230°F (110°C), InnoFlue Horizontal Vent Kits are the easiest way to quickly complete shorter horizontal installations without repeated trips to the distributor.

  • Saves time and money at jobsite and distributor.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Lightweight and durable.
  • Installs quickly & easily without glues, primers, or solvents.
  • Rated to 230°F (110°C).
View all specifications
4" Single Wall Vent Kit Horizontal

All media

4" Single Wall Vent Kit Horizontal
4" Single Wall Vent Kit Horizontal
4" Single Wall Vent Kit Horizontal

Specifications

General

Product Name
4" Single Wall Vent Kit Horizontal
Accessories in package
Bracket / Inner plate / Outer plate / Clamp / Bird protection
Part number
250407203300
GTIN
0815010015049
Trade name
InnoFlue

Technical

Color
Gray
Material
PPs
Bird protection
System type
Single wall
Material flue pipe
PPs

Dimensions

Length gross
245 mm / 9.6 inch
Height
1058 mm / 41.7 inch
Diameter flue pipe
110 mm / 4 inch
Width
242 mm / 9.5 inch
Net weight
2.949 kg / 6.5 lbs

Logistical

Intrastat
3917220000
Base unit packaging
Unpacked
Packaging / Trade length
245 mm / 9.6 inch
Packaging / Trade height
1058 mm / 41.7 inch
Number per packaging
1
Gross weight
2.949 kg / 6.5 lbs
Packaging / Trade width
242 mm / 9.5 inch

Performance

Temperature resistance (max.)
120 °C

Certification

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
