4" Snork 1 Foot Termination Kit

Article number: ISSNKLTK04

The 4" InnoFlue® Snork Termination Kit features a one-piece termination designed for residential exhaust applications. The kit includes a bird screen, connector ring, support clamp, and wall plate, providing the components needed for a streamlined installation.

  • One-piece termination design

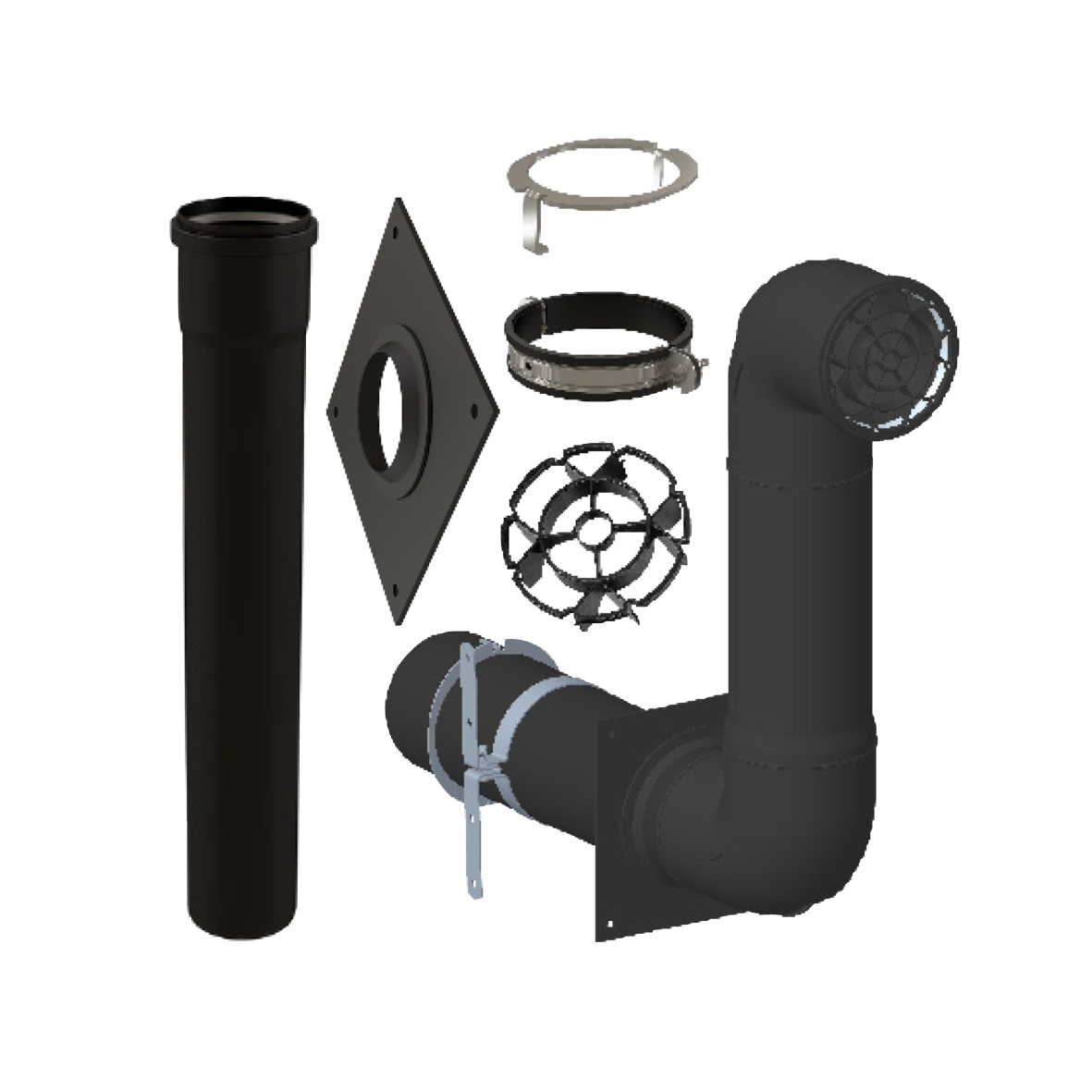

  • Includes bird screen, connector ring, support clamp, and wall plate
View all specifications

All media

Snork Termination Kit Black
Video thumbnail
Video thumbnail

Specifications

General

Product Name
4" Snork 1 Foot Termination Kit
Part number
250407208020
GTIN
0810017294367

Technical

Color
Black
Material
PPs
Bird protection
System type
Single wall
Material flue pipe
PPs

Dimensions

Length gross
662.94 mm / 26.1 inch
Height
548.64 mm / 21.6 inch
Diameter air inlet pipe
110 mm
Width
127 mm / 5 inch
Net weight
8.82 kg / 19.4 lbs
Diameter flue pipe
110 mm / 4 inch

Logistical

Intrastat
3925900000
Gross weight
8.82 kg / 19.4 lbs
Packaging / Trade width
660.4 mm / 26 inch
Base unit packaging
Box
Packaging / Trade length
660.4 mm / 26 inch
Packaging / Trade height
304.8 mm / 12 inch

Performance

CE string
-
Temperature resistance (max.)
120 °C / 230 °F
