AE34c Adustable Restrictor

Article number: 23188663

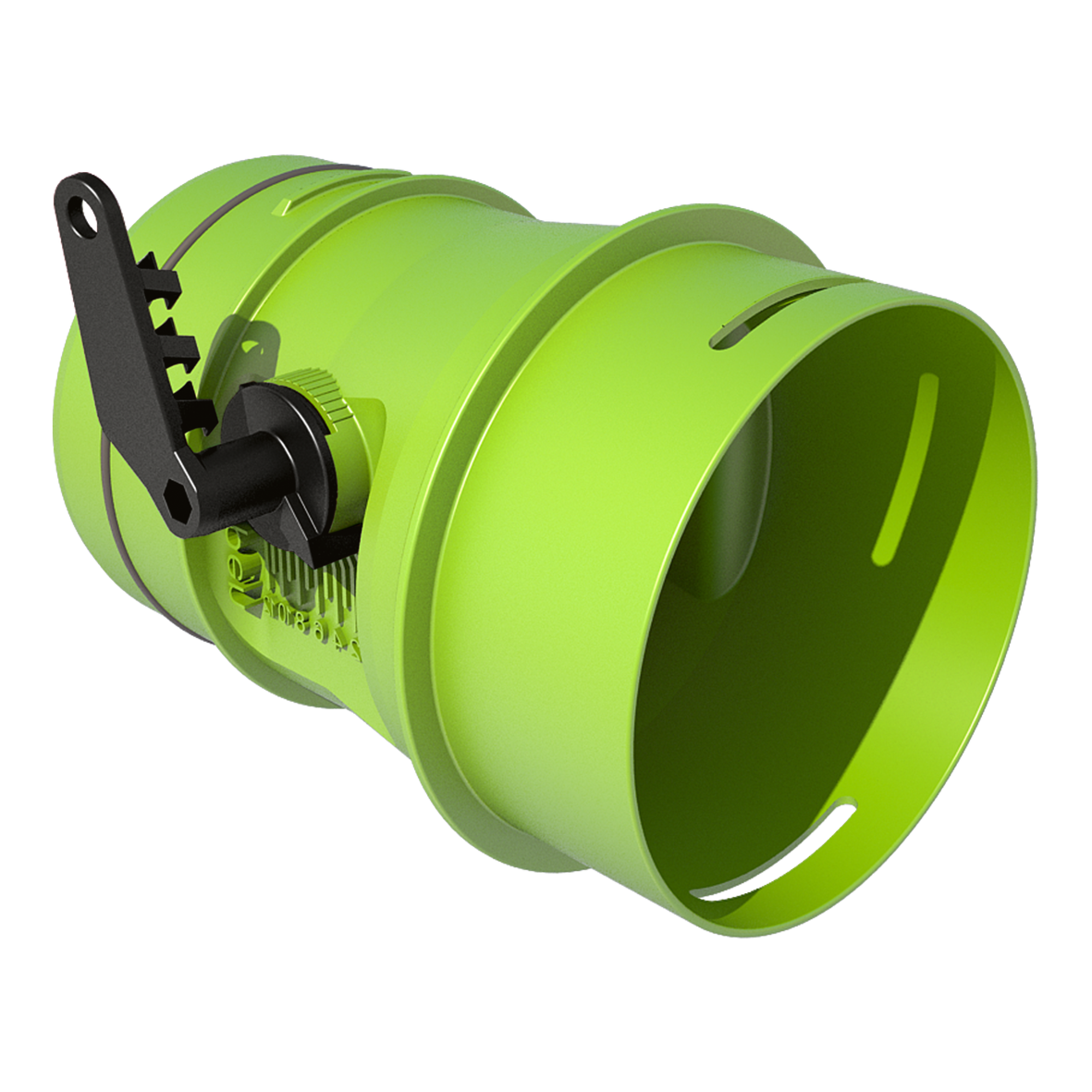

The Air Excellent DBOX External Air Restrictor Valve allows precise adjustment of the air flow rate for each duct, ensuring optimal ventilation performance. It connects directly to the distribution box and, with the use of converters, is compatible with any duct in the Air Excellent range. Air flow settings can be determined via the Aerflux configurator. The external lever enables easy adjustment without the need to access the distribution box, making installation and maintenance quick and hassle-free.

  • Precise air flow control for each duct individually
  • Easy, tool-free adjustment
View all specifications

All media

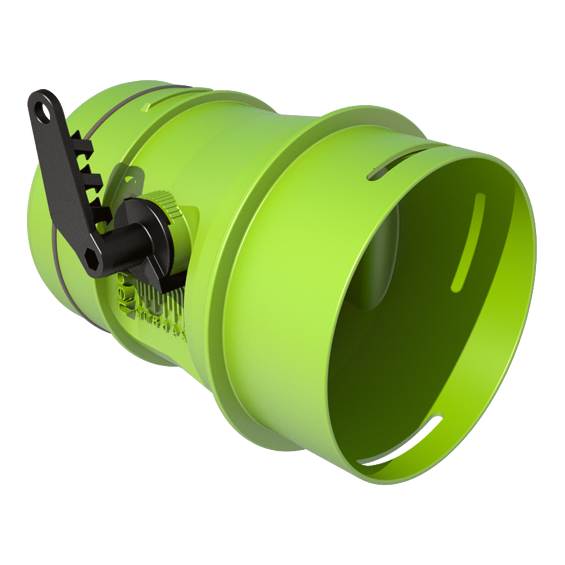

Air Excellent DBOX External Air Restrictor Valve

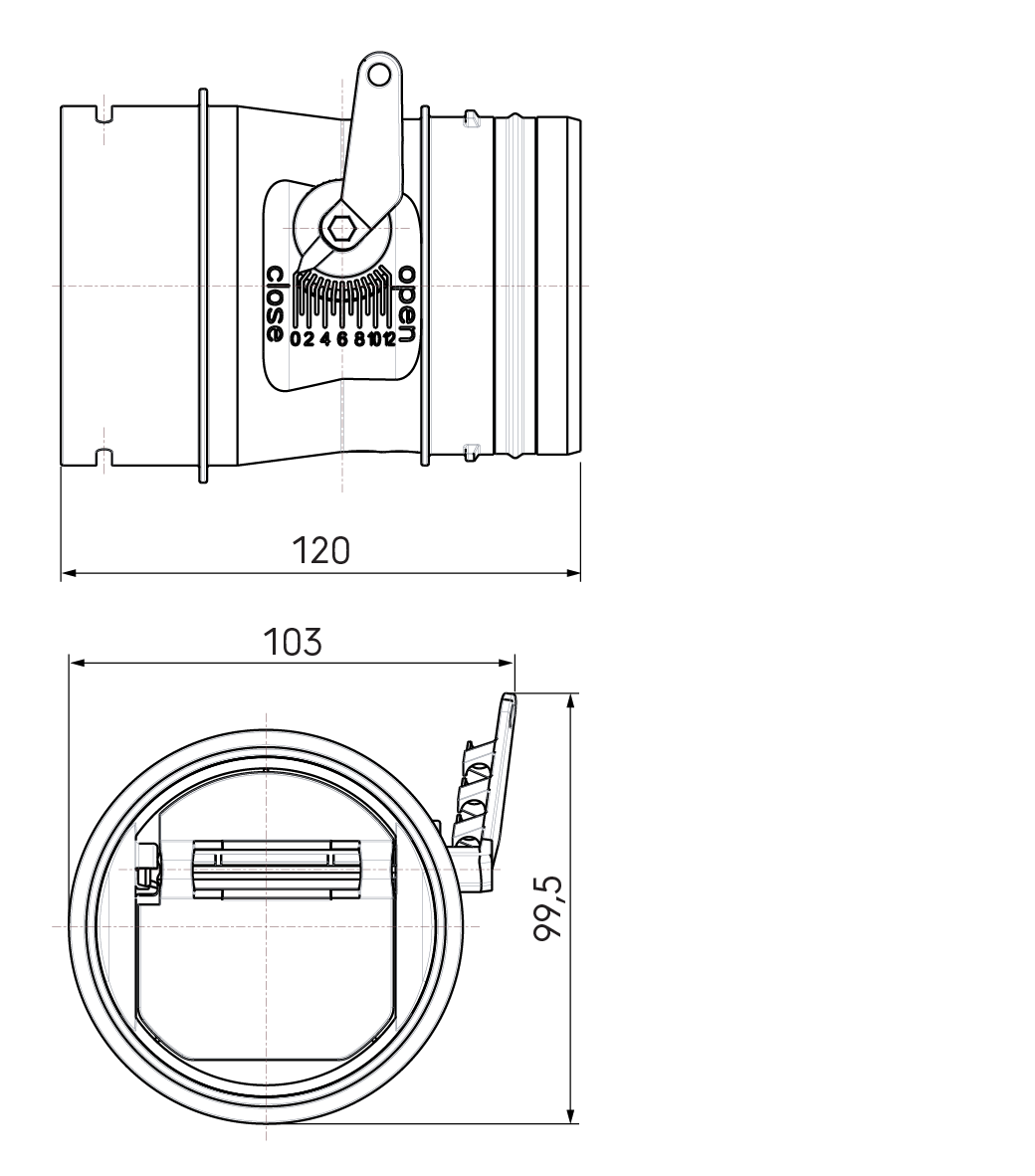

Dimensional drawing – DBOX External Air Restrictor Valve

Specifications

General

Product Name
AE34c Adustable Restrictor
GTIN
8713645248783
Part number
100023188663
Type
Accessories
Trade name
Air Excellent

Technical

Comm. Dimension
75 mm
Shape
Circular
Antimicrobial
Color
Green
Anti static
Airflow direction
Supply / extract

Dimensions

Length gross
120 mm / 4.7 inch
Height
100 mm / 3.9 inch
Width
103 mm / 4.1 inch
Net weight
0.09 kg / 0.2 lbs

Logistical

Intrastat
39259080
Base unit packaging
Box

Performance

CE string
-
Temperature resistance (max.)
60 °C
Temperature resistance (min.)
-20 °C
