5" Support Clamp With 3/8" Nut

Article number: IASCM05

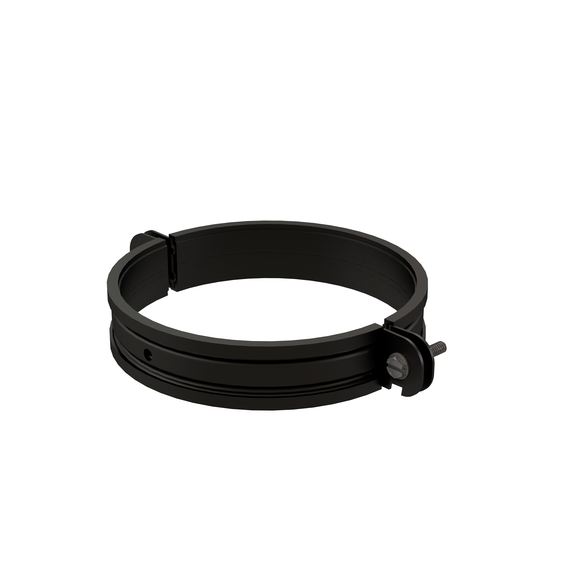

Innoflue support clamp with 3/8" nut 5" Stainless steel black
Innoflue support clamp with 3/8" nut 5" Stainless steel black

InnoFlue Support Clamps provide a sleek, user-friendly option to support the exhaust system. The engineered metal clamp is designed to withstand & support the vent system while installing quickly and easily. The metal interior is coated with a rubber exterior to prevent any scratching of the venting components. InnoFlue Support Clamps can be used as vertical or horizontal support. Space 78" in vertical and 39" in horizontal installations. Integrated installation system uses 3/8th" threaded rod.

  • Accepts standard 3/8th" threaded rod.
  • Metal interior and rubber exterior support and protect pipe.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Lightweight and durable.

Specifications

Product Name
5" Support Clamp With 3/8" Nut
Part number
250410304510
GTIN
0815010016169

Material
Stainless steel

Length gross
177.8 mm / 7 inch
Height
27 mm / 1.1 inch
Diameter flue pipe
125 mm / 5 inch
Width
143 mm / 5.6 inch
Net weight
0.150743864296667 kg / 0.3 lbs

Intrastat
7326908630
Gross weight
0.150743864296667 kg / 0.3 lbs
Packaging / Trade width
143 mm / 5.6 inch
Base unit packaging
Unpacked
Packaging / Trade length
177.8 mm / 7 inch
Packaging / Trade height
27 mm / 1.1 inch

Temperature resistance (max.)
120 °C
