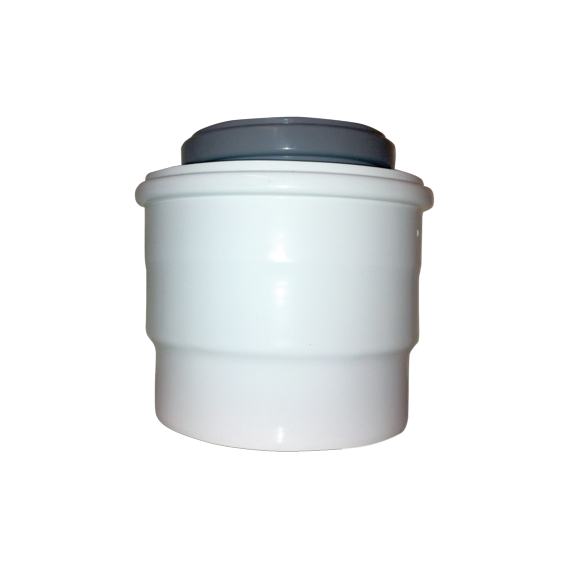

110mm/150mm to 4''/6'' Concentric Increaser

Article number: ICIA11015046

ICIA
ICIA

InnoFlue Concentric Increasers provide a versatile solution designed to enhance your exhaust system's performance and adaptability. Transition to a larger diameter while maintaining flow with centric vent design and combustion air intake. Evaluated to UL1738 and ULCS636 by ICC, InnoFlue Increasers optimize the vent layout for maximum efficiency. InnoFlue Concentric Increasers have the same powder white exterior as all InnoFlue Concentric Components.

  • Integrated combustion air intake and exhaust reduces components.
  • Optimizes vent system efficiency.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Durable and lightweight.
  • Installs quickly & easily without glues, primers, or solvents.
View all specifications

Specifications

Product Name
110mm/150mm to 4''/6'' Concentric Increaser
Trade name
InnoFlue
GTIN
0815010013366
Part number
250408400150

Color
White
Material flue pipe
PPs
Number of connections
4
System type
Concentric
Material air inlet pipe
Galvanized

Length gross
173.99 mm / 6.8 inch
Height
196.85 mm / 7.7 inch
Diameter air inlet pipe
150 mm / 6 inch
Width
173.99 mm / 6.8 inch
Net weight
0.68 kg / 1.5 lbs
Diameter flue pipe
110 mm / 4 inch

Intrastat
7609000000
Base unit packaging
Unpacked
Packaging / Trade length
173.99 mm / 6.8 inch
Packaging / Trade height
196.85 mm / 7.7 inch
Number per packaging
1
Gross weight
0.8391452 kg / 1.8 lbs
Packaging / Trade width
173.99 mm / 6.8 inch

Temperature resistance (max.)
120 °C

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
