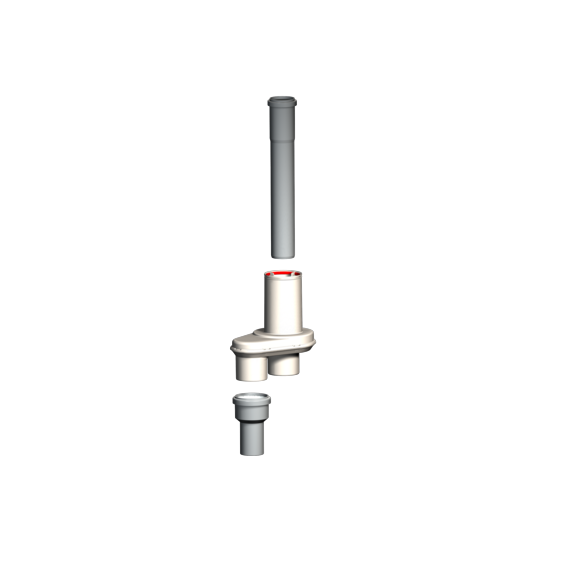

ICTCR_exploded

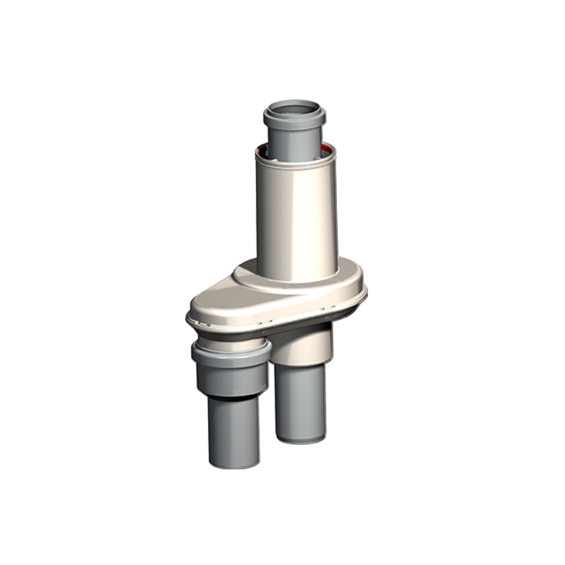

2"/4" Twin Pipe/Concentric Reversible Adaptor

Article number: ICTCR24

ICTCR_1
ICTCR_exploded
ICTCR_1
ICTCR_exploded

Seamlessly transition from InnoFlue Concentric to InnoFlue Single Wall with InnoFlue Reversible Concentric Adaptor. Meet any venting requirements and effortlessly manage any unforeseen obstacles with versatile adaptor that maximizes the best options from two different InnoFlue product families. Rated to Rated to 230°F (110°C), InnoFlue Concentric Adaptors are a user-friendly option that has been evaluated to UL1738 and ULCS636 by ICC.

  • Seamlessly transitions between InnoFlue Single Wall and InnoFlue Concentric components.
  • Reversible configurable options easily handles any obstacles and allows for maximum versatility.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Installs quickly & easily without glues, primers, or solvents.
  • Rated to 230°F (110°C).
View all specifications

Specifications

Product Name
2"/4" Twin Pipe/Concentric Reversible Adaptor
Trade name
InnoFlue
GTIN
0815010018217
Part number
250408200180

Color
White
Material flue pipe
PPs
Number of connections
4
System type
Concentric
Material air inlet pipe
PPs

Length gross
413 mm / 16.3 inch
Height
166 mm / 6.5 inch
Diameter air inlet pipe
100 mm / 4 inch
Width
259 mm / 10.2 inch
Net weight
0.537809353363333 kg / 1.2 lbs
Diameter flue pipe
60 mm / 2 inch

Intrastat
3917400090
Base unit packaging
Unpacked
Packaging / Trade length
413 mm / 16.3 inch
Packaging / Trade height
166 mm / 6.5 inch
Number per packaging
1
Gross weight
0.537809353363333 kg / 1.2 lbs
Packaging / Trade width
259 mm / 10.2 inch

Temperature resistance (max.)
120 °C

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
