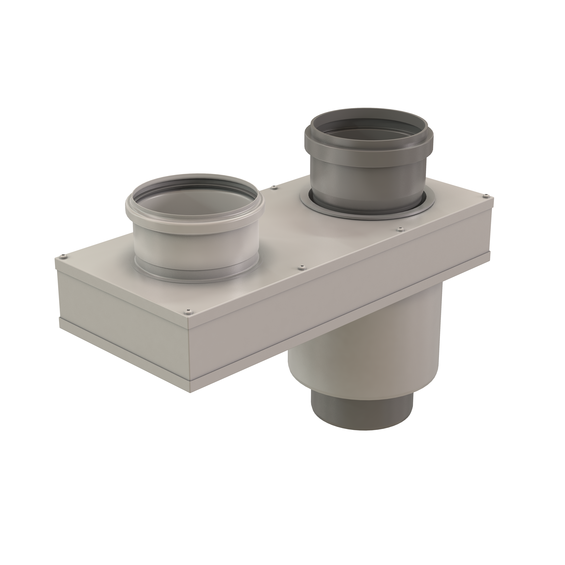

InnoFlue concentric adaptor 4"/6" to 4" twin pipe PPs white

4"/6" Concentric to 4" Twin Pipe Adaptor

Article number: ICCT4604

InnoFlue concentric adaptor 4"/6" to 4" twin pipe PPs white
InnoFlue concentric adaptor 4"/6" to 4" twin pipe PPs white

Seamlessly transition from InnoFlue Concentric to InnoFlue Single Wall with InnoFlue Concentric to Twin-Pipe Adaptor. Meet any venting requirements and effortlessly manage any unforeseen obstacles with versatile adaptor that maximizes the best options from two different InnoFlue product families. Rated to Rated to 230°F (110°C), InnoFlue Concentric Adaptors are a user-friendly option that has been evaluated to UL1738 and ULCS636 by ICC.

  • Seamlessly transitions between InnoFlue Single Wall and InnoFlue Concentric components.
  • Configuragle options easily handles any obstacles and allows for maximum versatility.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Installs quickly & easily without glues, primers, or solvents.
  • Rated to 230°F (110°C).
View all specifications

Specifications

Product Name
4"/6" Concentric to 4" Twin Pipe Adaptor
Part number
250408408360
GTIN
0815010011256

Material
PPs

Length gross
342.9 mm / 13.5 inch
Height
234.95 mm / 9.2 inch
Diameter flue pipe
110 mm / 4 inch
Width
450.85 mm / 17.7 inch
Net weight
3.3 kg / 7.3 lbs

Intrastat
7307933010
Gross weight
3.32936528 kg / 7.3 lbs
Packaging / Trade width
450.85 mm / 17.7 inch
Base unit packaging
Unpacked
Packaging / Trade length
342.9 mm / 13.5 inch
Packaging / Trade height
234.95 mm / 9.2 inch

Temperature resistance (max.)
120 °C
