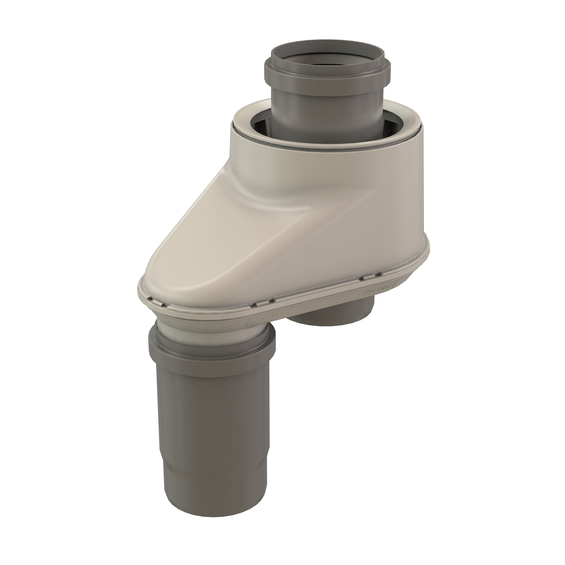

InnoFlue concentric adaptor 3" twin pipe to 3"/5" PPs white

Viessmann CU3A 26/35 - 3'' Twin Pipe to 3''/5'' Concentric Adaptor

Article number: ICTCV0335

InnoFlue concentric adaptor 3" twin pipe to 3"/5" PPs white
InnoFlue concentric adaptor 3" twin pipe to 3"/5" PPs white

Seamlessly transition from InnoFlue Single Wall to InnoFlue Concentric with InnoFlue Viessmann CU3A Concentric Adaptors. Meet any venting requirements and effortlessly manage any unforeseen obstacles with versatile adaptor that maximizes the best options from two different InnoFlue product families. Rated to Rated to 230°F (110°C), InnoFlue Concentric Adaptors are a user-friendly option that has been evaluated to UL1738 and ULCS636 by ICC.

  • Approved by Viessmann.
  • Configurable options easily handles any obstacles and allows for maximum versatility.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Installs quickly & easily without glues, primers, or solvents.
  • Rated to 230°F (110°C). "
View all specifications

Specifications

Product Name
Viessmann CU3A 26/35 - 3'' Twin Pipe to 3''/5'' Concentric Adaptor
Trade name
InnoFlue
GTIN
0815010017968
Part number
250408300200

Color
Gray
Material flue pipe
PPs
System type
Concentric
Number of connections
4

Length gross
309.88 mm / 12.2 inch
Height
205.74 mm / 8.1 inch
Diameter air inlet pipe
125 mm / 5 inch
Width
255.27 mm / 10 inch
Net weight
0.49 kg / 1.1 lbs
Diameter flue pipe
80 mm / 3 inch

Intrastat
3917400090
Base unit packaging
Unpacked
Packaging / Trade length
309.88 mm / 12.2 inch
Packaging / Trade height
205.74 mm / 8.1 inch
Number per packaging
1
Gross weight
0.87 kg / 1.9 lbs
Packaging / Trade width
255.27 mm / 10 inch

Temperature resistance (max.)
120 °C

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
