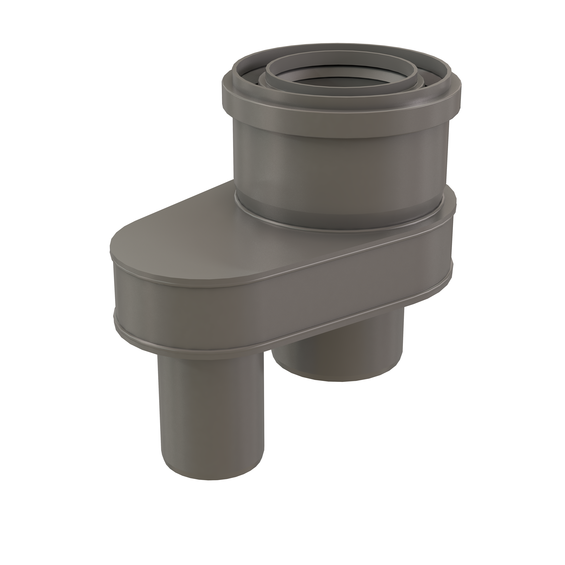

InnoFlue concentric adaptor 3'' air intake and 4" exhaust to 4''/6'' PPs grey

Viessmann CU3A 45/57 - 3'' Air Intake and 4" Exhaust to 4''/6'' Concentric Adaptor

Article number: ICTCV030446

InnoFlue concentric adaptor 3'' air intake and 4" exhaust to 4''/6'' PPs grey
InnoFlue concentric adaptor 3'' air intake and 4" exhaust to 4''/6'' PPs grey

Seamlessly transition from InnoFlue Single Wall to InnoFlue Concentric with InnoFlue Viessmann CU3A Concentric Adaptors. Meet any venting requirements and effortlessly manage any unforeseen obstacles with versatile adaptor that maximizes the best options from two different InnoFlue product families. Rated to Rated to 230°F (110°C), InnoFlue Concentric Adaptors are a user-friendly option that has been evaluated to UL1738 and ULCS636 by ICC.

  • Approved by Viessmann.
  • Configurable options easily handles any obstacles and allows for maximum versatility.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Installs quickly & easily without glues, primers, or solvents.
  • Rated to 230°F (110°C). "
View all specifications

Specifications

Product Name
Viessmann CU3A 45/57 - 3'' Air Intake and 4" Exhaust to 4''/6'' Concentric Adaptor
Trade name
InnoFlue
GTIN
0815010018170
Part number
250408400190

Color
Gray
Material flue pipe
PPs
Number of connections
4
System type
Concentric
Material air inlet pipe
PPs

Length gross
279.4 mm / 11 inch
Height
150 mm / 5.9 inch
Diameter flue pipe
80 mm / 3 inch
Width
302.26 mm / 11.9 inch
Diameter air inlet pipe
125 mm / 5 inch

Intrastat
3917400090
Base unit packaging
Unpacked
Packaging / Trade width
302.26 mm / 11.9 inch
Number per packaging
1
Packaging / Trade length
279.4 mm / 11 inch
Packaging / Trade height
150 mm / 5.9 inch

Temperature resistance (max.)
120 °C

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
