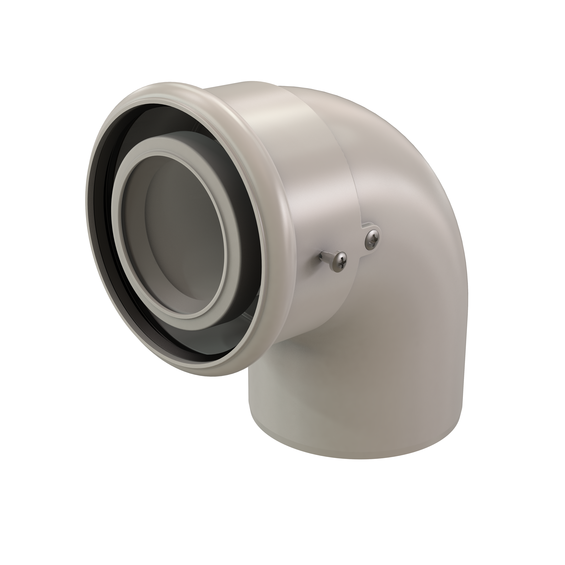

InnoFlue concentric elbow 2"/4" x 87 PPs/Alu white

2"/4" x 87 Concentric PPs/Alu Elbow

Article number: ICEL2487

InnoFlue concentric elbow 2"/4" x 87 PPs/Alu white
InnoFlue concentric elbow 2"/4" x 87 PPs/Alu white

InnoFlue Concentric Elbows provide stability to offsets while integrating combustion air intake in a single system. Powder white metal outer air intake combines with UL1738 and ULCS636 listed polypropene exhaust components to form a single, aesthetically pleasing Concentric system. InnoFlue Concentric provides the same simple venting solution while reducing components, and wall and roof penetrations.

  • Integrated intake/exhaust system reduces components and wall/roof penetrations.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Powder white exterior provides aesthetically pleasing appearance
  • Full line of adaptors, accessories and terminations.
  • Installs quickly & easily without glues, primers, or solvents.
View all specifications

Specifications

Product Name
2"/4" x 87 Concentric PPs/Alu Elbow
Trade name
InnoFlue
GTIN
0815010013175
Part number
250406208380

Color
White
Material flue pipe
PPs
System type
Concentric
Material air inlet pipe
Galvanized

Length gross
180.34 mm / 7.1 inch
Height
115.57 mm / 4.5 inch
Diameter air inlet pipe
100 mm / 4 inch
Width
165.1 mm / 6.5 inch
Net weight
0.49 kg / 1.1 lbs
Diameter flue pipe
60 mm / 2 inch

Intrastat
7609000000
Base unit packaging
Unpacked
Packaging / Trade length
180.34 mm / 7.1 inch
Packaging / Trade height
115.57 mm / 4.5 inch
Number per packaging
1
Gross weight
0.56699 kg / 1.2 lbs
Packaging / Trade width
165.1 mm / 6.5 inch

Temperature resistance (max.)
120 °C

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
