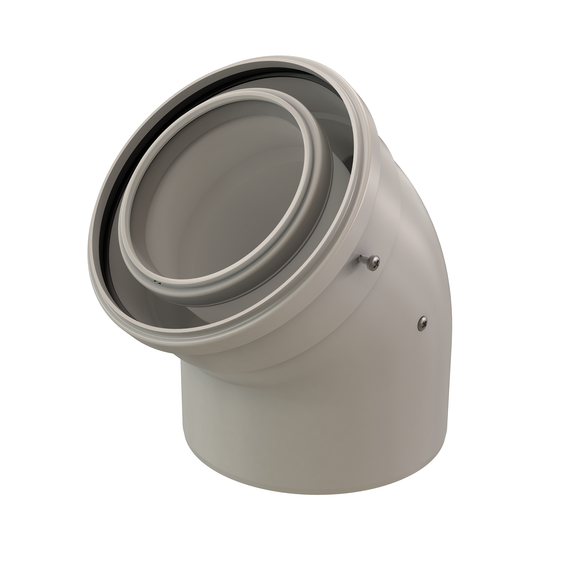

InnoFlue concentric elbow 4"/6" x 45 PPs/Alu white

4"/6" x 45 Concentric PPs/Alu Elbow

Article number: ICEL4645

InnoFlue concentric elbow 4"/6" x 45 PPs/Alu white
InnoFlue concentric elbow 4"/6" x 45 PPs/Alu white

InnoFlue Concentric Elbows provide stability to offsets while integrating combustion air intake in a single system. Powder white metal outer air intake combines with UL1738 and ULCS636 listed polypropene exhaust components to form a single, aesthetically pleasing Concentric system. InnoFlue Concentric provides the same simple venting solution while reducing components, and wall and roof penetrations.

  • Integrated intake/exhaust system reduces components and wall/roof penetrations.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Powder white exterior provides aesthetically pleasing appearance
  • Full line of adaptors, accessories and terminations.
  • Installs quickly & easily without glues, primers, or solvents.
View all specifications

Specifications

Product Name
4"/6" x 45 Concentric PPs/Alu Elbow
Trade name
InnoFlue
GTIN
0815010011768
Part number
250405408410

Color
White
Material flue pipe
PPs
System type
Concentric
Material air inlet pipe
Galvanized

Length gross
236.22 mm / 9.3 inch
Height
175.26 mm / 6.9 inch
Diameter air inlet pipe
160 mm / 6 inch
Width
218.44 mm / 8.6 inch
Net weight
0.85 kg / 1.9 lbs
Diameter flue pipe
110 mm / 4 inch

Intrastat
7609000000
Base unit packaging
Unpacked
Packaging / Trade length
236.22 mm / 9.3 inch
Packaging / Trade height
175.26 mm / 6.9 inch
Number per packaging
1
Gross weight
1.1566596 kg / 2.5 lbs
Packaging / Trade width
218.44 mm / 8.6 inch

Temperature resistance (max.)
120 °C

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
