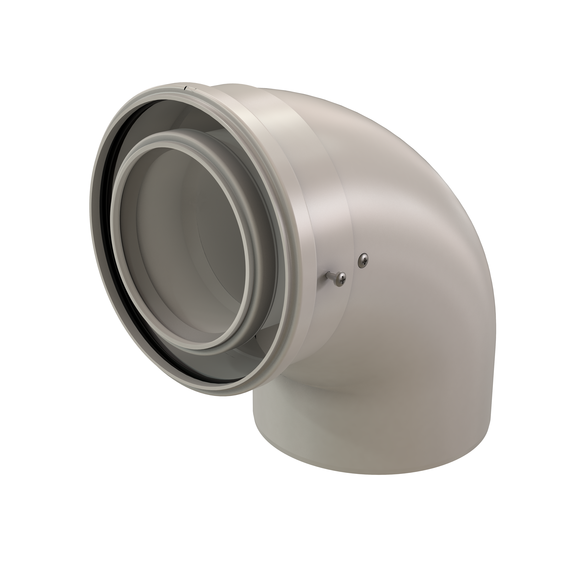

InnoFlue concentric elbow 4"/6" x 87 PPs/Alu white

4"/6" x 87 Concentric PPs/Alu Elbow

Article number: ICEL4687

InnoFlue concentric elbow 4"/6" x 87 PPs/Alu white
InnoFlue concentric elbow 4"/6" x 87 PPs/Alu white

InnoFlue Concentric Elbows provide stability to offsets while integrating combustion air intake in a single system. Powder white metal outer air intake combines with UL1738 and ULCS636 listed polypropene exhaust components to form a single, aesthetically pleasing Concentric system. InnoFlue Concentric provides the same simple venting solution while reducing components, and wall and roof penetrations.

  • Integrated intake/exhaust system reduces components and wall/roof penetrations.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Powder white exterior provides aesthetically pleasing appearance
  • Full line of adaptors, accessories and terminations.
  • Installs quickly & easily without glues, primers, or solvents.
View all specifications

Specifications

Product Name
4"/6" x 87 Concentric PPs/Alu Elbow
Trade name
InnoFlue
GTIN
0815010011775
Part number
250406408420

Color
White
Material flue pipe
PPs
System type
Concentric
Material air inlet pipe
Galvanized

Length gross
255.27 mm / 10 inch
Height
176.53 mm / 6.9 inch
Diameter air inlet pipe
160 mm / 6 inch
Width
252.73 mm / 9.9 inch
Net weight
1.2 kg / 2.6 lbs
Diameter flue pipe
110 mm / 4 inch

Intrastat
7609000000
Base unit packaging
Unpacked
Packaging / Trade length
255.27 mm / 10 inch
Packaging / Trade height
176.53 mm / 6.9 inch
Number per packaging
1
Gross weight
1.5422128 kg / 3.4 lbs
Packaging / Trade width
252.73 mm / 9.9 inch

Temperature resistance (max.)
120 °C

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
