2/4" Concentric Vent Kit Vertical

Article number: ICVKV24

ICVKV
ICVKV

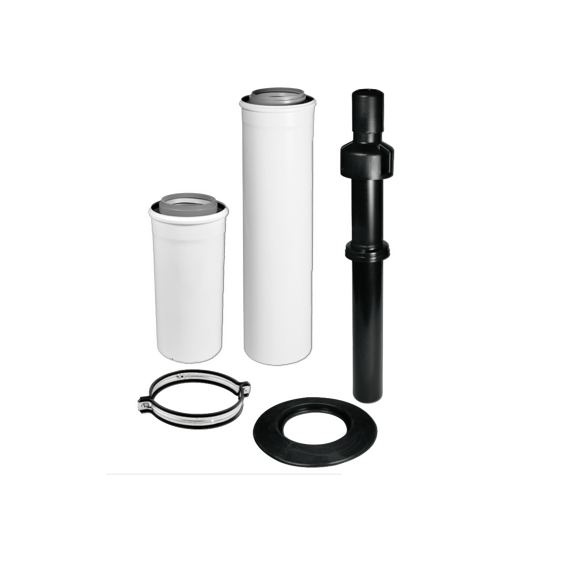

InnoFlue Concentric Vertical Vent Kits include all the components necessary to integrate combustion air intake and exhaust runs and terminate in a single pipe vent system through the roof. Reduce penetrations at the roof with supplied InnoFlue Concentric Roof Termination and reduce components with aesthetically pleasing powder white InnoFlue Concentric exterior. Evaluated to UL1738 and ULCS636 by ICC, InnoFlue Concentric Vent Kits install quickly and easily.

  • Pleasing, powder white exterior aesthetic.
  • Integrated two-in-one system reduces time and components.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Installs quickly & easily without glues, primers, or solvents.
  • Saves time at jobsite and distributor.

Specifications

Product Name
2/4" Concentric Vent Kit Vertical
Trade name
InnoFlue
GTIN
0815010016435
Part number
250411203460

Color
Gray
Material flue pipe
PPs
System type
Concentric
Material air inlet pipe
Galvanized

Length gross
328 mm / 12.9 inch
Height
1287 mm / 50.7 inch
Diameter air inlet pipe
100 mm
Width
595 mm / 23.4 inch
Net weight
7.823554816 kg / 17.2 lbs
Diameter flue pipe
60 mm / 2 inch

Intrastat
7306501010
Base unit packaging
Unpacked
Packaging / Trade length
328 mm / 12.9 inch
Packaging / Trade height
1287 mm / 50.7 inch
Number per packaging
1
Gross weight
7.823554816 kg / 17.2 lbs
Packaging / Trade width
595 mm / 23.4 inch

Temperature resistance (max.)
120 °C

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
