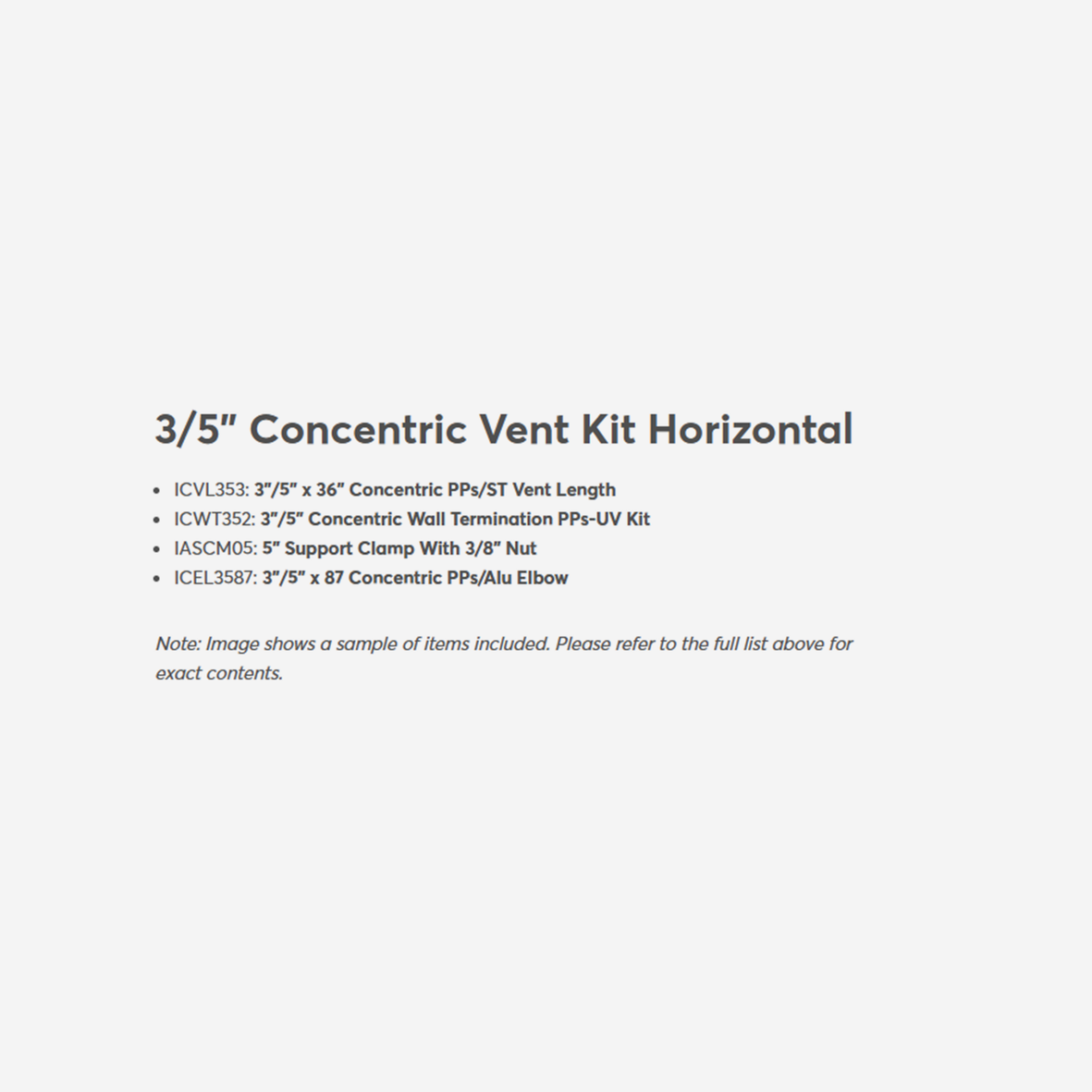

3/5" Concentric Vent Kit Horizontal

Article number: ICVKH35

ICVKH
ICVKH

InnoFlue Concentric Horizontal Vent Kits include all the components necessary to integrate combustion air intake and exhaust runs and terminate in a single pipe vent system through the sidewall. Reduce penetrations at the wall with supplied InnoFlue Concentric Wall Termination and reduce components with aesthetically pleasing powder white InnoFlue Concentric exterior. Evaluated to UL1738 and ULCS636 by ICC, InnoFlue Concentric Vent Kits install quickly and easily.

  • Pleasing, powder white exterior aesthetic.
  • Integrated two-in-one system reduces time and components.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Installs quickly & easily without glues, primers, or solvents.
  • Saves time at jobsite and distributor.

Specifications

Product Name
3/5" Concentric Vent Kit Horizontal
Accessories in package
Inner plate / Outer plate / Clamp / Self tappers
Part number
250411300420
GTIN
0815010014936
Trade name
InnoFlue

Color
Black
Material flue pipe
PPs
System type
Concentric
Material air inlet pipe
HDPE

Diameter air inlet pipe
125 mm / 5 inch
Diameter flue pipe
80 mm / 3 inch

Intrastat
7306501000
Base unit packaging
Box
Packaging / Trade length
285 mm / 11.2 inch
Packaging / Trade height
1092 mm / 43 inch
Number per packaging
1
Gross weight
6.282 kg / 13.8 lbs
Packaging / Trade width
350 mm / 13.8 inch

Temperature resistance (max.)
120 °C

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
