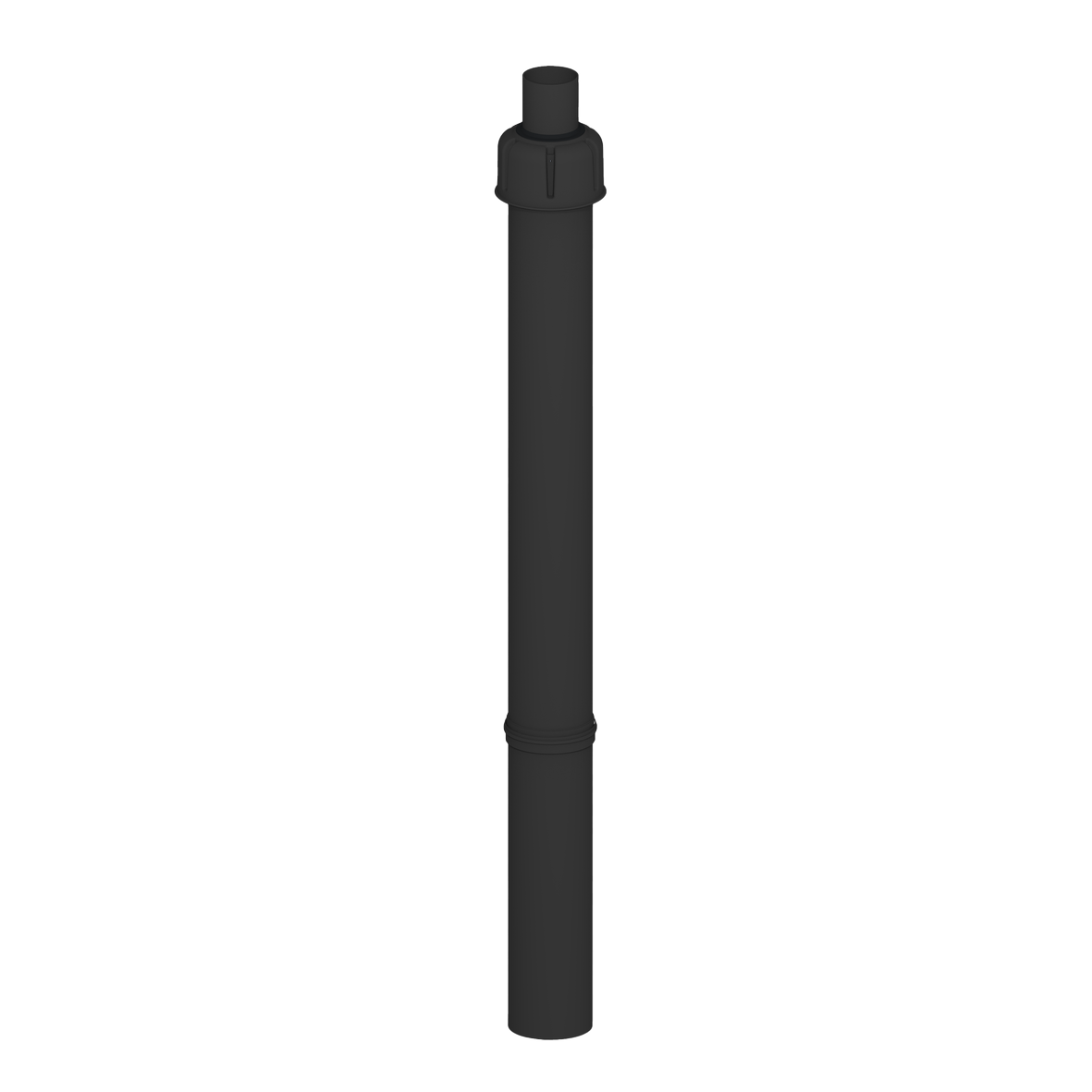

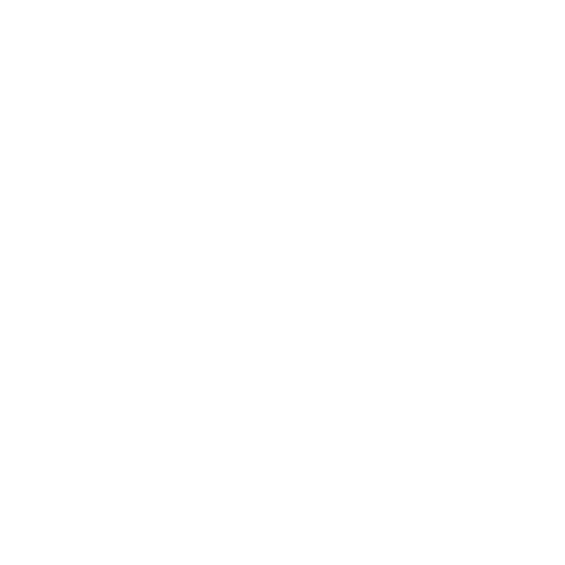

4''/6'' Concentric Roof Termination PPs-UV Black

4''/6'' Concentric Roof Termination PPs-UV

Article number: ICRT4679

4''/6'' Concentric Roof Termination PPs-UV Black
4''/6'' Concentric Roof Termination PPs-UV Black

InnoFlue Concentric Roof Terminations offer a streamlined and effective way to manage exhaust and terminate through roof quickly and easily. Rated to 230°F (110°C), InnoFlue Concentric Terminations integrate combustion air intake and UL listed polypropylene exhaust vent into a single system reducing labor and construction at the jobsite. Evaluated to UL1738 and ULCS636 by ICC, InnoFlue Concentric Roof Terminations are a favorite of professional installers.

  • Neatly terminates combustion air intake and exhaust in single penetration.
  • Reduces time and labor at jobsite.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Installs quickly & easily without glues, primers, or solvents.
  • Lightweight and durable.
  • Rated to 230°F (110°C).
View all specifications

Specifications

Product Name
4''/6'' Concentric Roof Termination PPs-UV
Accessories in package
Clamp
Part number
250407400400
GTIN
0815010011225
Trade name
InnoFlue

Color
Black
Material flue pipe
PPs
System type
Concentric
Material air inlet pipe
HDPE

Length gross
1988 mm / 78.3 inch
Height underroof
600 mm / 23.6 inch
Height
220 mm / 8.7 inch
Diameter air inlet pipe
166 mm / 6 inch
Height overroof
1389 mm / 54.7 inch
Width
220 mm / 8.7 inch
Net weight
6.8265651685 kg / 15 lbs
Diameter flue pipe
110 mm / 4 inch

Intrastat
3917210000
Base unit packaging
Unpacked
Packaging / Trade length
1988 mm / 78.3 inch
Packaging / Trade height
220 mm / 8.7 inch
Number per packaging
1
Gross weight
6.8265651685 kg / 15 lbs
Packaging / Trade width
220 mm / 8.7 inch

Temperature resistance (max.)
120 °C

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
