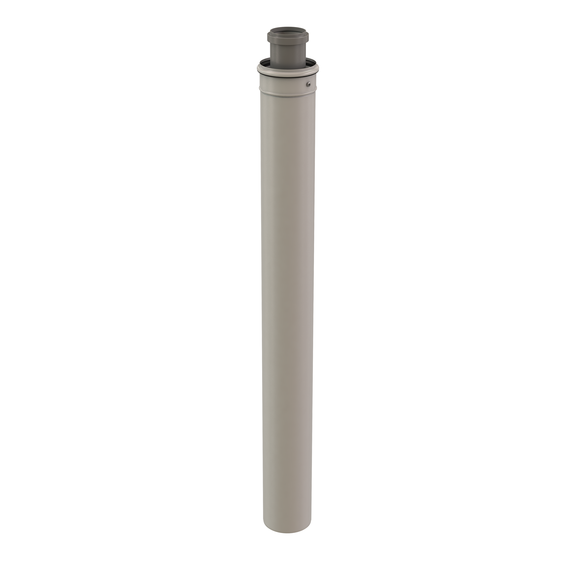

2"/4" x 36" Concentric PPs/ST Vent Length

2"/4" x 36" Concentric PPs/ST Vent Length

Article number: ICVL243

2"/4" x 36" Concentric PPs/ST Vent Length
2"/4" x 36" Concentric PPs/ST Vent Length

Constructed from UL1738 and ULCS636 listed polypropylene, InnoFlue Concentric Vent Lengths integrate combustion air intake with Centrotherm's industry leading exhaust technology through an aesthetically pleasing powder white exterior. InnoFlue Concentric Vent Lengths provide the same simple and efficient venting solution while reducing components, and wall and roof penetrations. Seal airtight Concentric Vent Lengths without glues, primers, or solvents.

  • Integrated intake/exhaust system reduces components and wall/roof penetrations.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Powder white exterior provides aesthetically pleasing appearance
  • Full line of adaptors, accessories and terminations.
  • Installs quickly & easily without glues, primers, or solvents.
View all specifications

Specifications

Product Name
2"/4" x 36" Concentric PPs/ST Vent Length
Accessories in package
Self tappers
Part number
250400200290
GTIN
0815010011874
Trade name
InnoFlue

Color
White
Material flue pipe
PPs
System type
Concentric
Material air inlet pipe
Galvanized

Length gross
1022 mm / 40.2 inch
Height
112 mm / 4.4 inch
Diameter air inlet pipe
100 mm / 4 inch
Width
112 mm / 4.4 inch
Net weight
1.56066014771333 kg / 3.4 lbs
Diameter flue pipe
60 mm / 2 inch

Intrastat
7306501000
Base unit packaging
Unpacked
Packaging / Trade length
1022 mm / 40.2 inch
Packaging / Trade height
112 mm / 4.4 inch
Number per packaging
1
Gross weight
1.56066014771333 kg / 3.4 lbs
Packaging / Trade width
112 mm / 4.4 inch

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
