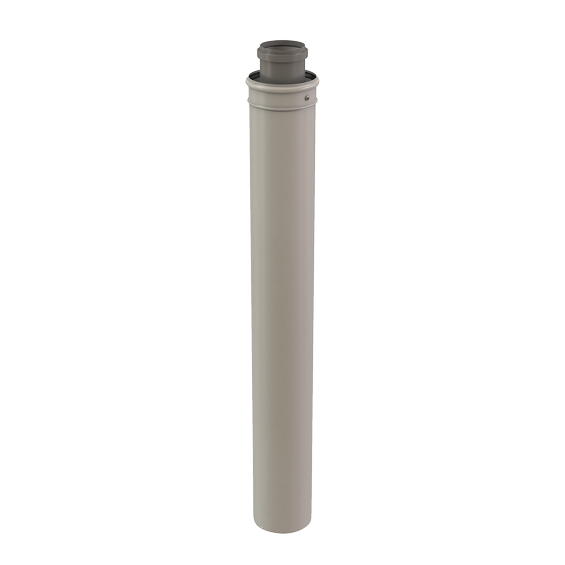

InnoFlue Vent Length Concentric 3"/5" x 36" PPs/ST grey

3"/5" x 36" Concentric PPs/ST Vent Length

Article number: ICVL353

InnoFlue Vent Length Concentric 3"/5" x 36" PPs/ST grey
InnoFlue Vent Length Concentric 3"/5" x 36" PPs/ST grey

Constructed from UL1738 and ULCS636 listed polypropylene, InnoFlue Concentric Vent Lengths integrate combustion air intake with Centrotherm's industry leading exhaust technology through an aesthetically pleasing powder white exterior. InnoFlue Concentric Vent Lengths provide the same simple and efficient venting solution while reducing components, and wall and roof penetrations. Seal airtight Concentric Vent Lengths without glues, primers, or solvents.

  • Integrated intake/exhaust system reduces components and wall/roof penetrations.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Powder white exterior provides aesthetically pleasing appearance
  • Full line of adaptors, accessories and terminations.
  • Installs quickly & easily without glues, primers, or solvents.
View all specifications

Specifications

Product Name
3"/5" x 36" Concentric PPs/ST Vent Length
Accessories in package
Self tappers
Part number
250400300320
GTIN
0815010011904
Trade name
InnoFlue

Color
White
Material flue pipe
PPs
System type
Concentric
Material air inlet pipe
Galvanized

Length gross
1022.35 mm / 40.2 inch
Height
138.43 mm / 5.4 inch
Diameter air inlet pipe
125 mm / 5 inch
Width
138.43 mm / 5.4 inch
Net weight
1.97 kg / 4.3 lbs
Diameter flue pipe
80 mm / 3 inch

Intrastat
7306501000
Base unit packaging
Unpacked
Packaging / Trade length
134.62 mm / 5.3 inch
Packaging / Trade height
138.43 mm / 5.4 inch
Number per packaging
1
Gross weight
1.38 kg / 3 lbs
Packaging / Trade width
138.43 mm / 5.4 inch

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
