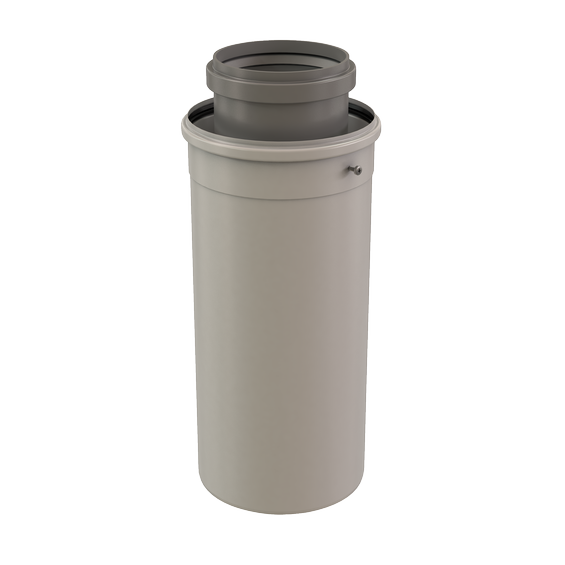

InnoFlue Vent Length 4"/6" x 12" PPs/ST grey

4"/6" x 12" Concentric PPs/ST Vent Length

Article number: ICVL461

InnoFlue Vent Length 4"/6" x 12" PPs/ST grey
InnoFlue Vent Length 4"/6" x 12" PPs/ST grey

Constructed from UL1738 and ULCS636 listed polypropylene, InnoFlue Concentric Vent Lengths integrate combustion air intake with Centrotherm's industry leading exhaust technology through an aesthetically pleasing powder white exterior. InnoFlue Concentric Vent Lengths provide the same simple and efficient venting solution while reducing components, and wall and roof penetrations. Seal airtight Concentric Vent Lengths without glues, primers, or solvents.

  • Integrated intake/exhaust system reduces components and wall/roof penetrations.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Powder white exterior provides aesthetically pleasing appearance
  • Full line of adaptors, accessories and terminations.
  • Installs quickly & easily without glues, primers, or solvents.
View all specifications

Specifications

Product Name
4"/6" x 12" Concentric PPs/ST Vent Length
Accessories in package
Self tappers
Part number
250400400330
GTIN
0815010011782
Trade name
InnoFlue

Color
White
Material flue pipe
PPs
System type
Concentric
Material air inlet pipe
Galvanized

Length gross
407 mm / 16 inch
Height
173 mm / 6.8 inch
Diameter air inlet pipe
160 mm / 6 inch
Width
173 mm / 6.8 inch
Net weight
1.50804343279333 kg / 3.3 lbs
Diameter flue pipe
110 mm / 4 inch

Intrastat
7306501000
Base unit packaging
Unpacked
Packaging / Trade length
407 mm / 16 inch
Packaging / Trade height
173 mm / 6.8 inch
Number per packaging
1
Gross weight
1.50804343279333 kg / 3.3 lbs
Packaging / Trade width
173 mm / 6.8 inch

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
