4"/6" x 36" Concentric PPs/ST Vent Length

Article number: ICVL463

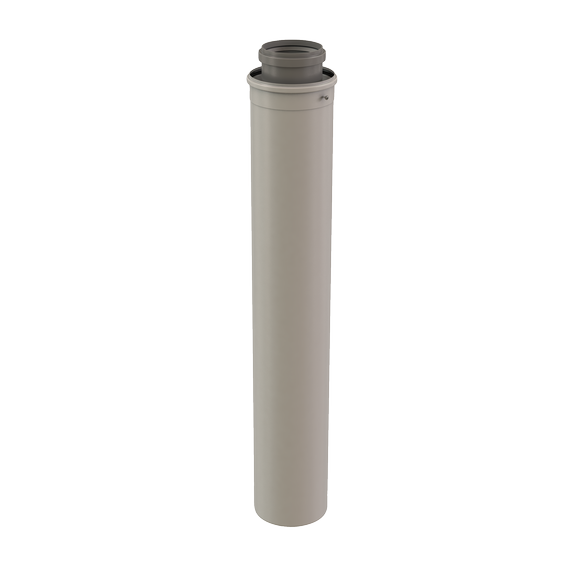

InnoFlue Vent Length Concentric 4"/6" x 36" PPs/ST Vent Length
InnoFlue Vent Length Concentric 4"/6" x 36" PPs/ST Vent Length

Constructed from UL1738 and ULCS636 listed polypropylene, InnoFlue Concentric Vent Lengths integrate combustion air intake with Centrotherm's industry leading exhaust technology through an aesthetically pleasing powder white exterior. InnoFlue Concentric Vent Lengths provide the same simple and efficient venting solution while reducing components, and wall and roof penetrations. Seal airtight Concentric Vent Lengths without glues, primers, or solvents.

  • Integrated intake/exhaust system reduces components and wall/roof penetrations.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Powder white exterior provides aesthetically pleasing appearance
  • Full line of adaptors, accessories and terminations.
  • Installs quickly & easily without glues, primers, or solvents.

Specifications

Product Name
4"/6" x 36" Concentric PPs/ST Vent Length
Accessories in package
Self tappers
Part number
250400400350
GTIN
0815010013335
Trade name
InnoFlue

Color
White
Material flue pipe
PPs
System type
Concentric
Material air inlet pipe
Galvanized

Length gross
1022.35 mm / 40.2 inch
Height
173.99 mm / 6.8 inch
Diameter air inlet pipe
160 mm / 6 inch
Width
173.99 mm / 6.8 inch
Net weight
3.75 kg / 8.3 lbs
Diameter flue pipe
110 mm / 4 inch

Intrastat
7306501000
Base unit packaging
Unpacked
Packaging / Trade length
187.96 mm / 7.4 inch
Packaging / Trade height
173.99 mm / 6.8 inch
Number per packaging
1
Gross weight
4.876114 kg / 10.7 lbs
Packaging / Trade width
173.99 mm / 6.8 inch

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
