3" Flex Component for 4"-6" B-Vent Kit (Vent Length Sold Separately)

Article number: IFBKC03

IFBKC03
IFBKC03

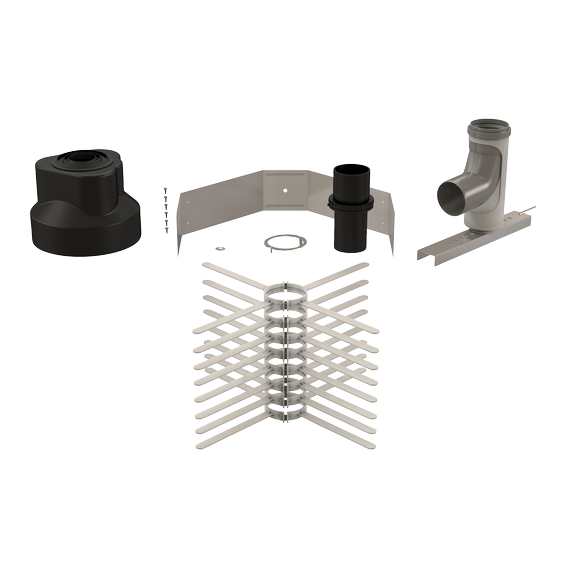

InnoFlue Flex B-Vent Components Kits include all the components necessary to line a B-Vent from Universal B-Vent Termination to base support. Retrofit an existing B-vent without additional construction or creating additional penetrations with this all-in-one solution. InnoFlue Flex liners and additional components required to connect B-Vent kit base support to appliance are sold separately.

  • Saves time and money at jobsite and distributor.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Lightweight and durable.
  • Installs quickly & easily without glues, primers, or solvents.
  • Rated to 230°F (110°C).

Specifications

Product Name
3" Flex Component for 4"-6" B-Vent Kit (Vent Length Sold Separately)
Trade name
InnoFlue
GTIN
0815010016077
Part number
250411103590

Color
Gray
Material flue pipe
PPs
System type
Flexible

Length gross
417 mm / 16.4 inch
Height
416 mm / 16.4 inch
Diameter flue pipe
80 mm / 3 inch
Width
413 mm / 16.3 inch
Net weight
3.387 kg / 7.5 lbs

Intrastat
3917320010
Base unit packaging
Unpacked
Packaging / Trade length
417 mm / 16.4 inch
Packaging / Trade height
416 mm / 16.4 inch
Number per packaging
1
Gross weight
3.387 kg / 7.5 lbs
Packaging / Trade width
413 mm / 16.3 inch

Temperature resistance (max.)
120 °C

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
