2" x 35' Flex B-Vent Kit For 3"-6" B-Vent

2" x 35' Flex B-Vent Kit For 3"-6" B-Vent

Article number: IFBK0235

2" x 35' Flex B-Vent Kit For 3"-6" B-Vent
2" x 35' Flex B-Vent Kit For 3"-6" B-Vent

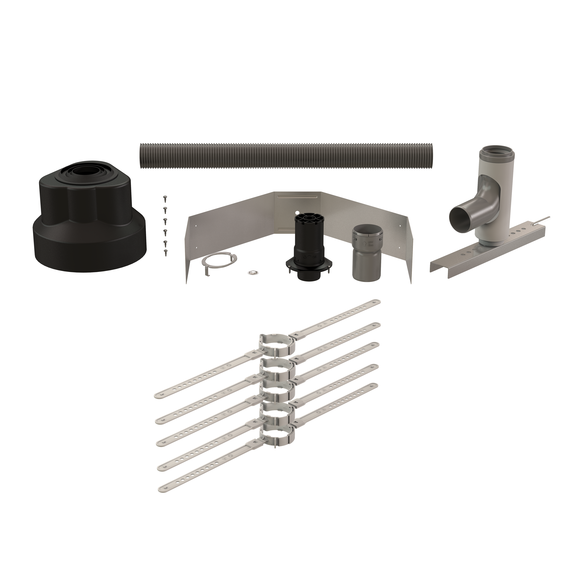

InnoFlue Flex B-Vent Kits include all the components necessary to line a B-Vent from Universal B-Vent Termination to base support including the quickly installed flexible liner. Rated to 230°F (110°C), InnoFlue Flex B-Vent Kits are the easiest way to retrofit an existing B-vent without additional construction or creating additional penetrations with this all-in-one solution. Additional components required to connect B-Vent kit base support to appliance are sold separately.

  • Saves time and money at jobsite and distributor.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Lightweight and durable.
  • Installs quickly & easily without glues, primers, or solvents.
  • Rated to 230°F (110°C).
View all specifications

Specifications

Product Name
2" x 35' Flex B-Vent Kit For 3"-6" B-Vent
Trade name
InnoFlue
GTIN
0815010015957
Part number
250411003500

Color
Gray
Material flue pipe
PPs
System type
Flexible

Length gross
668 mm / 26.3 inch
Height
320 mm / 12.6 inch
Diameter flue pipe
60 mm / 2 inch
Width
670 mm / 26.4 inch
Net weight
7.3481904 kg / 16.2 lbs

Intrastat
3917320010
Base unit packaging
Unpacked
Packaging / Trade length
668 mm / 26.3 inch
Packaging / Trade height
320 mm / 12.6 inch
Number per packaging
1
Gross weight
7.3481904 kg / 16.2 lbs
Packaging / Trade width
670 mm / 26.4 inch

Temperature resistance (max.)
120 °C

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
