3" x 25' Flex B-Vent Kit For 3"-6" B-Vent

Article number: IFBK0325

IFBK
IFBK

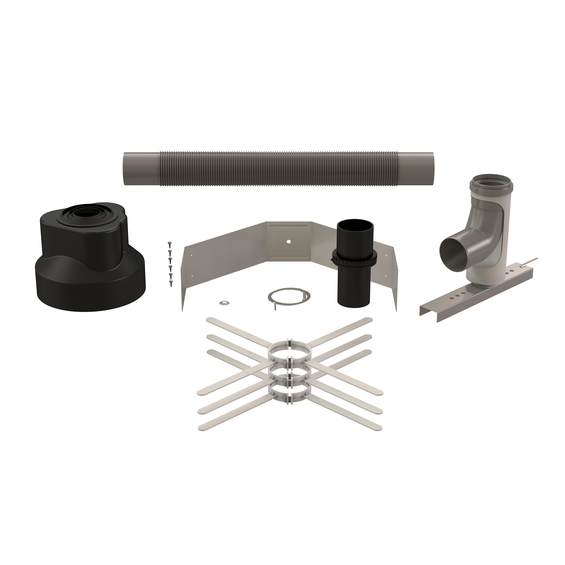

InnoFlue Flex B-Vent Kits include all the components necessary to line a B-Vent from Universal B-Vent Termination to base support including the quickly installed flexible liner. Rated to 230°F (110°C), InnoFlue Flex B-Vent Kits are the easiest way to retrofit an existing B-vent without additional construction or creating additional penetrations with this all-in-one solution. Additional components required to connect B-Vent kit base support to appliance are sold separately.

  • Saves time and money at jobsite and distributor.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Lightweight and durable.
  • Installs quickly & easily without glues, primers, or solvents.
  • Rated to 230°F (110°C).
View all specifications

Specifications

Product Name
3" x 25' Flex B-Vent Kit For 3"-6" B-Vent
Trade name
InnoFlue
GTIN
0815010015971
Part number
250411103520

Color
Gray
Material flue pipe
PPs
System type
Flexible

Length gross
775 mm / 30.5 inch
Height
417 mm / 16.4 inch
Diameter flue pipe
80 mm / 3 inch
Width
765 mm / 30.1 inch
Net weight
7.814482976 kg / 17.2 lbs

Intrastat
3917320010
Base unit packaging
Unpacked
Packaging / Trade length
775 mm / 30.5 inch
Packaging / Trade height
417 mm / 16.4 inch
Number per packaging
1
Gross weight
7.814482976 kg / 17.2 lbs
Packaging / Trade width
765 mm / 30.1 inch

Temperature resistance (max.)
120 °C

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
