3" x 50' Flex B-Vent Kit For 3"-6" B-Vent

3" x 50' Flex B-Vent Kit For 3"-6" B-Vent

Article number: IFBK0350

3" x 50' Flex B-Vent Kit For 3"-6" B-Vent
3" x 50' Flex B-Vent Kit For 3"-6" B-Vent

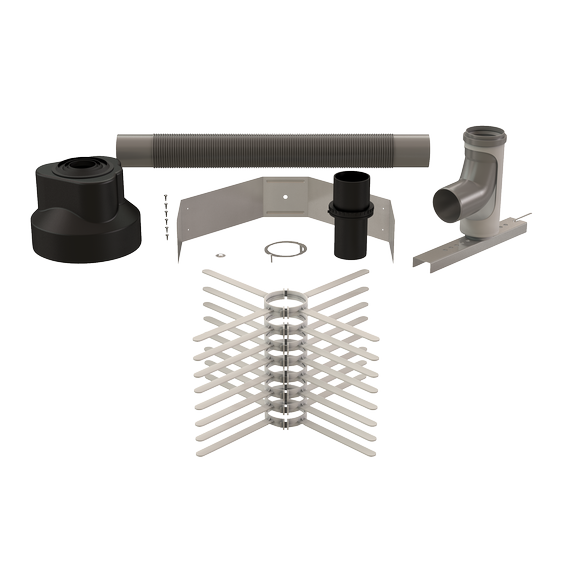

InnoFlue Flex B-Vent Kits include all the components necessary to line a B-Vent from Universal B-Vent Termination to base support including the quickly installed flexible liner. Rated to 230°F (110°C), InnoFlue Flex B-Vent Kits are the easiest way to retrofit an existing B-vent without additional construction or creating additional penetrations with this all-in-one solution. Additional components required to connect B-Vent kit base support to appliance are sold separately.

  • Saves time and money at jobsite and distributor.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Lightweight and durable.
  • Installs quickly & easily without glues, primers, or solvents.
  • Rated to 230°F (110°C).
View all specifications

Specifications

Product Name
3" x 50' Flex B-Vent Kit For 3"-6" B-Vent
Trade name
InnoFlue
GTIN
0815010015995
Part number
250411103540

Color
Gray
Material flue pipe
PPs
System type
Flexible

Length gross
15240 mm / 600 inch
Height
80 mm / 3.1 inch
Diameter flue pipe
80 mm / 3 inch
Width
80 mm / 3.1 inch
Net weight
14 kg / 30.9 lbs

Intrastat
3917320010
Base unit packaging
Unpacked
Packaging / Trade length
660.4 mm / 26 inch
Packaging / Trade height
609.6 mm / 24 inch
Number per packaging
1
Gross weight
14.061352 kg / 31 lbs
Packaging / Trade width
660.4 mm / 26 inch

Temperature resistance (max.)
120 °C

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
