IFCKC02

2" Flex Component Chimney Kit (Vent Length Sold Separately)

Article number: IFCKC02

IFCKC02
IFCKC02

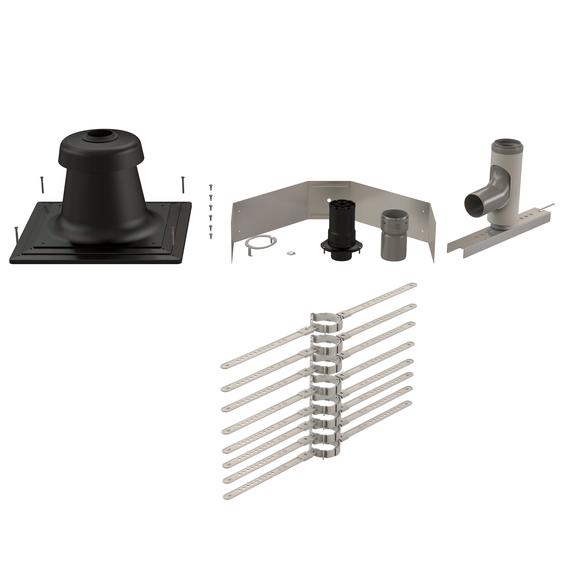

InnoFlue Flex Chimney Components Kits Include all the components necessary to line a chimney from chimney termination to base support. Retrofit an existing chimney without additional construction with this all-in-one solution. InnoFlue Flex liners and additional components required to connect chimney kit base support to appliance are sold separately.

  • Saves time and money at jobsite and distributor.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Lightweight and durable.
  • Installs quickly & easily without glues, primers, or solvents.
  • Rated to 230°F (110°C).
View all specifications

Specifications

Product Name
2" Flex Component Chimney Kit (Vent Length Sold Separately)
Trade name
InnoFlue
GTIN
0815010015353
Part number
250411003710

Color
Gray
System type
Flexible

Length gross
417 mm / 16.4 inch
Height
417 mm / 16.4 inch
Diameter flue pipe
60 mm / 2 inch
Width
414 mm / 16.3 inch
Net weight
2.752849848 kg / 6.1 lbs

Intrastat
3917320010
Base unit packaging
Unpacked
Packaging / Trade length
417 mm / 16.4 inch
Packaging / Trade height
417 mm / 16.4 inch
Number per packaging
1
Gross weight
2.752849848 kg / 6.1 lbs
Packaging / Trade width
414 mm / 16.3 inch

Temperature resistance (max.)
120 °C

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
