IFFFC02

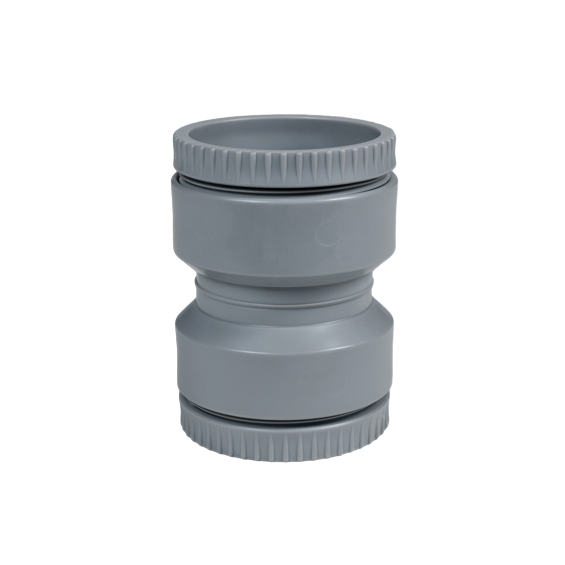

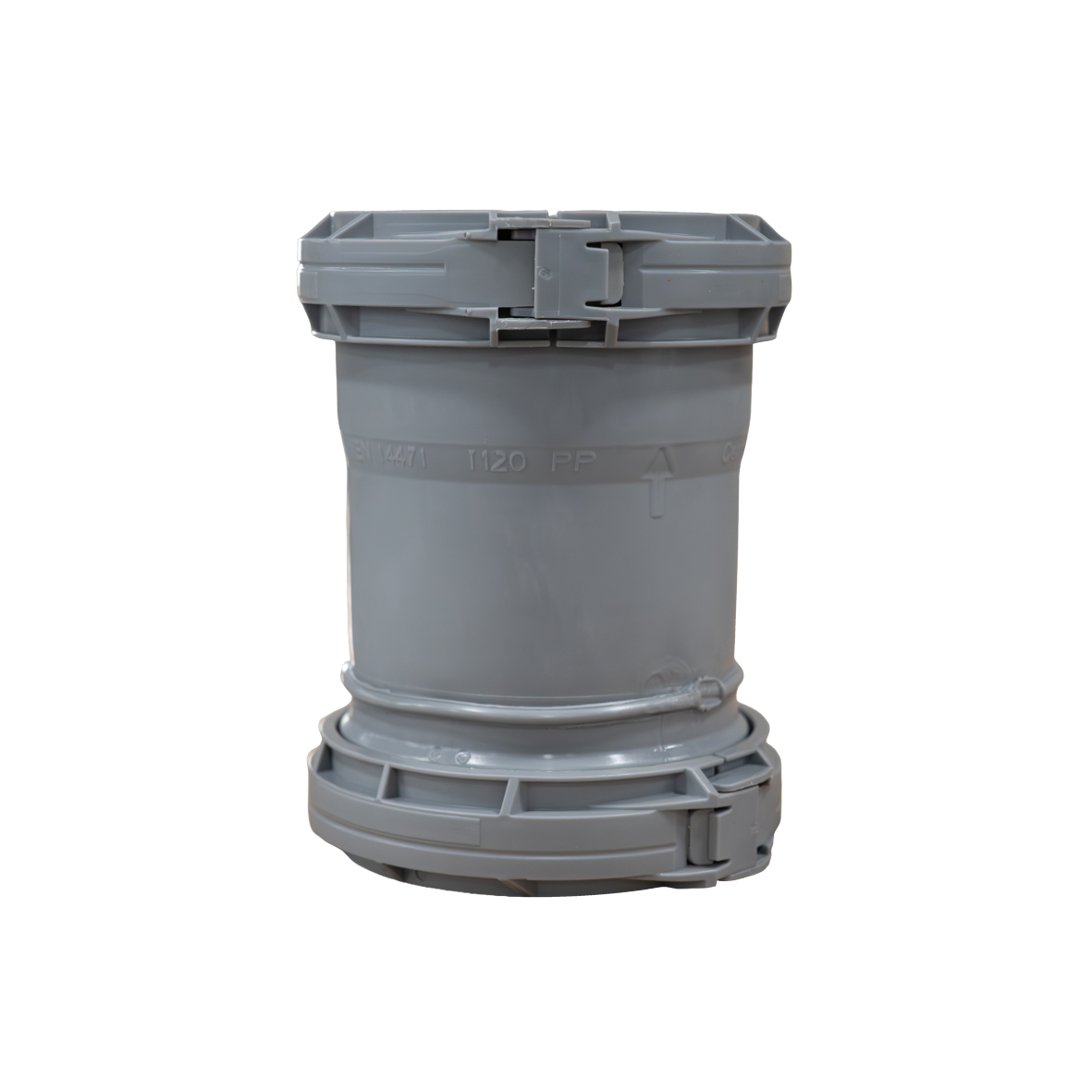

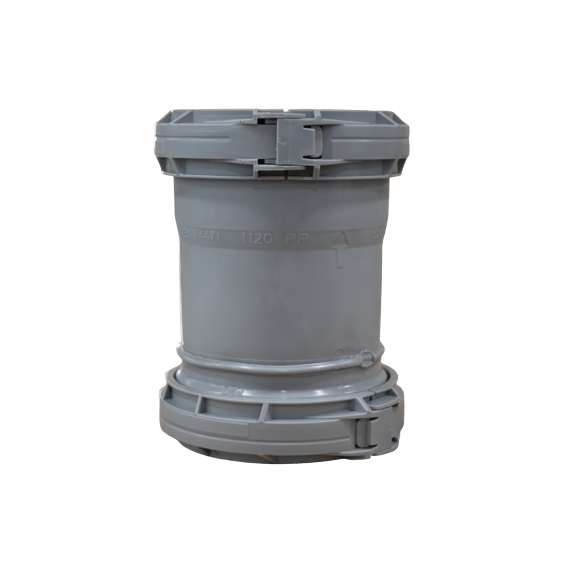

4" Flex to Flex Coupler

Article number: IFFFC04

IFFFC02
IFFFC02

Seamlessly integrate segments of InnoFlue Flex with Flex to Flex Coupler. This simple transition allows for the combining of longer runs of InnoFlue Flex with an easily assembled, lightweight component. Flex Adaptors are designed adjoin segments of InnFlue Flex by creating an airtight seal without the use of glues, primers, or solvents. Utilize couplers to adapt vent system to any obstacles and complete Flex installation efficiently.

  • Evaluated to UL1738 and ULCS636 by ICC.
  • Integrates InnoFlue product families quickly and easily.
  • Durable and lightweight.
  • Maximizes versatility and easily handles obstacles.
  • Reduces material waste.
View all specifications

Specifications

Product Name
4" Flex to Flex Coupler
Trade name
InnoFlue
GTIN
0815010012307
Part number
250408208430

Color
Gray
Material
PPs
System type
Flexible

Length gross
174 mm / 6.9 inch
Height
142 mm / 5.6 inch
Diameter flue pipe
110 mm / 4 inch
Width
142 mm / 5.6 inch
Net weight
0.34518379357 kg / 0.8 lbs

Intrastat
3917400090
Base unit packaging
Unpacked
Packaging / Trade length
174 mm / 6.9 inch
Packaging / Trade height
142 mm / 5.6 inch
Number per packaging
1
Gross weight
0.34518379357 kg / 0.8 lbs
Packaging / Trade width
142 mm / 5.6 inch

Temperature resistance (max.)
120 °C

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
