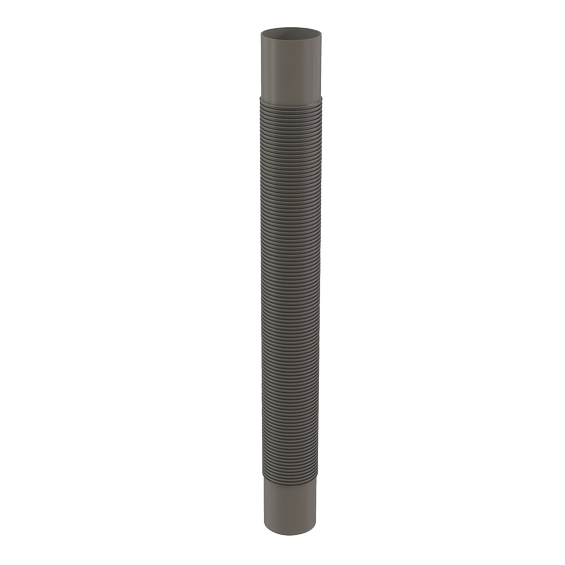

3'' x 25' Flex Vent Length

3'' x 25' Flex Vent Length

Article number: IFVL03025

3'' x 25' Flex Vent Length
3'' x 25' Flex Vent Length

Constructed from UL1738 and ULCS636 listed flexible polypropylene, InnoFlue Flex liners provide a speedy retrofit solution for many tricky venting applications. Handle offsets of up to 45° and utilize existing construction without creating additional roof penetrations. InnoFlue Flex liners are listed zero clearance to combustibles and provide a lightweight and versatile answer to otherwise difficult venting applications.

  • Evaluated to UL1738 and ULCS636 by ICC.
  • Engineered for quick retrofit applications in existing construction.
  • Durable and lightweight.
  • Full line of accessories and components make installation simple.
  • B-Vent, Chimney, and Component Kits available.
View all specifications

Specifications

Product Name
3'' x 25' Flex Vent Length
Trade name
InnoFlue
GTIN
0815010013755
Part number
250401102650

Color
Gray
Material
PPs
System type
Flexible

Length gross
772 mm / 30.4 inch
Height
417 mm / 16.4 inch
Diameter flue pipe
80 mm / 3 inch
Width
767 mm / 30.2 inch
Net weight
6.020526616 kg / 13.3 lbs

Intrastat
3917320050
Base unit packaging
Unpacked
Packaging / Trade length
772 mm / 30.4 inch
Packaging / Trade height
417 mm / 16.4 inch
Number per packaging
1
Gross weight
6.020526616 kg / 13.3 lbs
Packaging / Trade width
767 mm / 30.2 inch

Temperature resistance (max.)
120 °C
Installation temperature (min.)
0 °C / 32 °F

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
