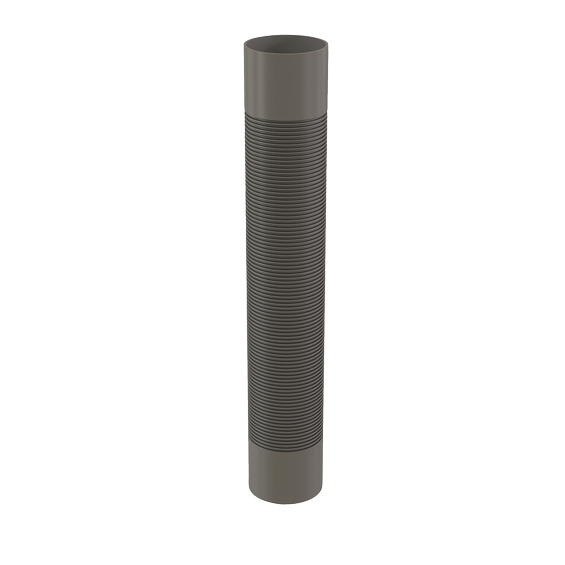

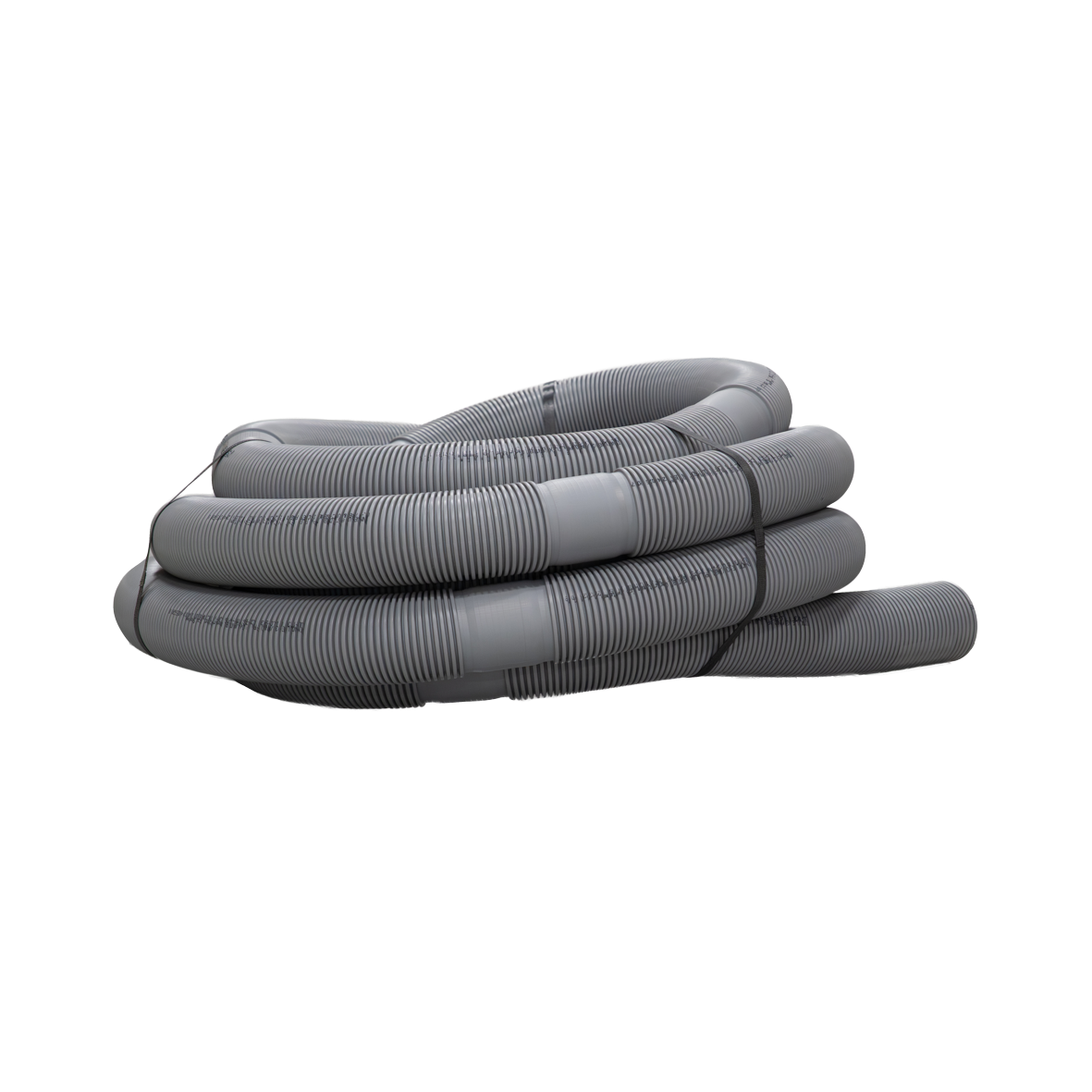

4'' x 50' Flex Vent Length

Article number: IFVL04050

4'' x 50' Flex Vent Length
4'' x 50' Flex Vent Length

Constructed from UL1738 and ULCS636 listed flexible polypropylene, InnoFlue Flex liners provide a speedy retrofit solution for many tricky venting applications. Handle offsets of up to 45° and utilize existing construction without creating additional roof penetrations. InnoFlue Flex liners are listed zero clearance to combustibles and provide a lightweight and versatile answer to otherwise difficult venting applications.

  • Evaluated to UL1738 and ULCS636 by ICC.
  • Engineered for quick retrofit applications in existing construction.
  • Durable and lightweight.
  • Full line of accessories and components make installation simple.
  • B-Vent, Chimney, and Component Kits available.

Specifications

Product Name
4'' x 50' Flex Vent Length
Trade name
InnoFlue
GTIN
0815010013847
Part number
250401202740

Color
Gray
Material
PPs
System type
Flexible

Length gross
1198 mm / 47.2 inch
Height
454 mm / 17.9 inch
Diameter flue pipe
110 mm / 4 inch
Width
1175 mm / 46.3 inch
Net weight
14.628342 kg / 32.2 lbs

Intrastat
3917320050
Base unit packaging
Unpacked
Packaging / Trade length
1198 mm / 47.2 inch
Packaging / Trade height
454 mm / 17.9 inch
Number per packaging
1
Gross weight
14.628342 kg / 32.2 lbs
Packaging / Trade width
1175 mm / 46.3 inch

Temperature resistance (max.)
120 °C
Installation temperature (min.)
0 °C / 32 °F

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
