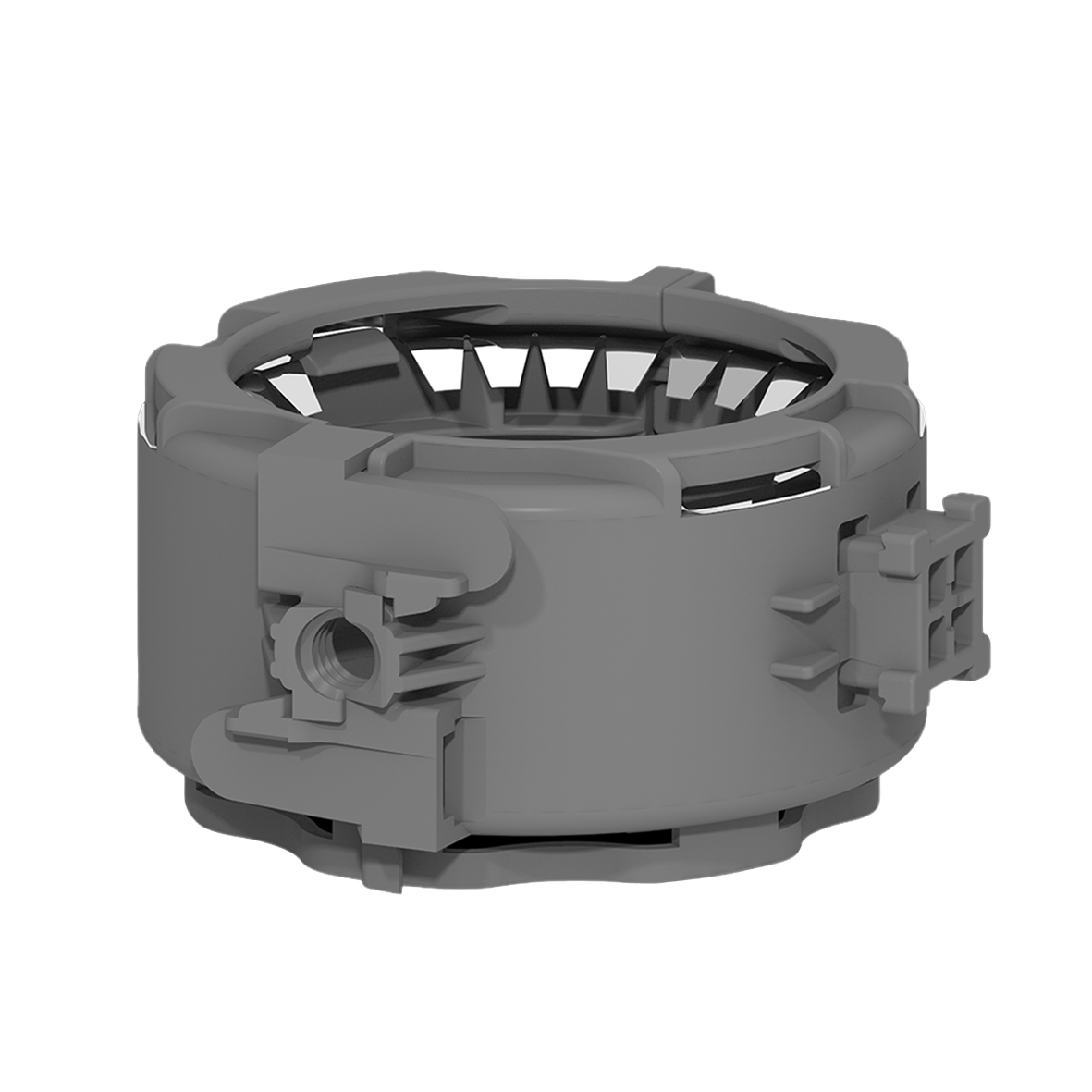

2" Gray OctoClamp

Article number:

The InnoFlue® Gray OctoClamp is engineered to provide enhanced support on all 2" InnoFlue® pipe fitting connections. Its robust design reduces the risk of leaks and joint failures while integrating 3/8” threaded rod to support the weight of the vent system. Hangers feature an 8-way connection and can snap together to extend length.

  • Combines joint connection and weight support in one versatile component
  • Integrates with Centrotherm Gray Hanger for customizable orientation and length
  • Accepts 3/8” threaded rod
  • Provides significant installation options for vent support requirements
  • Installs quickly & easily, without glues, primers, or solvents
  • Color matched with standard InnoFlue® Pipe
View all specifications

All media

Octo Clamp Grey

Detailed information

2" Gray OctoClamp for UL-1738 InnoFlue® Polypropylene Systems.

Specifications

General

Product Name
2" Gray OctoClamp
Part number
250410009640
GTIN
0810017296835

Technical

Color
Gray
Material
PP

Dimensions

Length gross
89.6 mm / 3.5 inch
Height
46.6 mm / 1.8 inch
Width
88.9 mm / 3.5 inch
Net weight
0.031 kg / 0.1 lbs

Logistical

Intrastat
39269000
Gross weight
0.031 kg / 0.1 lbs
Packaging / Trade width
297 mm / 11.7 inch
Base unit packaging
Unpacked
Packaging / Trade length
368 mm / 14.5 inch
Packaging / Trade height
127 mm / 5 inch

Performance

CE string
-
